Torp TC500 Controller: Talaria Sting MX3 MX4 MX5
Out of stock
Boost your power instantly with the Torp TC500 Controller upgrade kit for Talaria Sting MX3 MX4 MX5 electric motorbikes.
- 25kW Max Power
- Lightweight Talaria Controller (2.2 lbs)
- Plug-And-Play: 20-min Setup
- Pre-Calibrated | Easy Performance Tuning via mobile app
- Multiple Brake Regen and Throttle Modes
- Fast shipping from the USA
- 2-Year Warranty - register here
Preserved Stock Talaria Features:
Display, Kickstand Sensor, Crash Sensor, Power Mode Button, Brake Switch
Talaria Sting + TC500 Power Capabilities:
MX3 | MX4 | MX5 | |
Stock Motor + Stock Battery | 8kW | 11.5kW | 17kW |
Stock Motor + 72V Battery | 18kW | 18kW | 20kW |
TC500 Controller Talaria Sting Specs:
- Voltage 20-90V
- Max Power: 25kW
- Max Phase Current: 500A
- Max Battery Current: 350A (MX3/MX4), 700A (MX5)
- Battery Compatibility: 60V-72V nominal 20S (84V fully charged)
- Efficiency: up to 99%
- Weight: 2.21 lbs (1 kg)
- Field-Oriented Control (FOC)
- Supports Encoder / Hall position sensors and sensorless control
- Bluetooth and Stock BMS Communication
- Overcurrent, overvoltage, undervoltage and overtemperature protection
- Working Temperature: -15 to 75 C°
- Protection Class: IP67*
- Regular Firmware Updates
*Torp controllers are IP67 water-resistant, but wiring harnesses are not waterproof. Apply dielectric grease to all connectors if exposed to water. Warranty does not cover damage from frequent or extended water submersion (e.g., riding in streams). Seals may degrade over time, reducing water resistance.

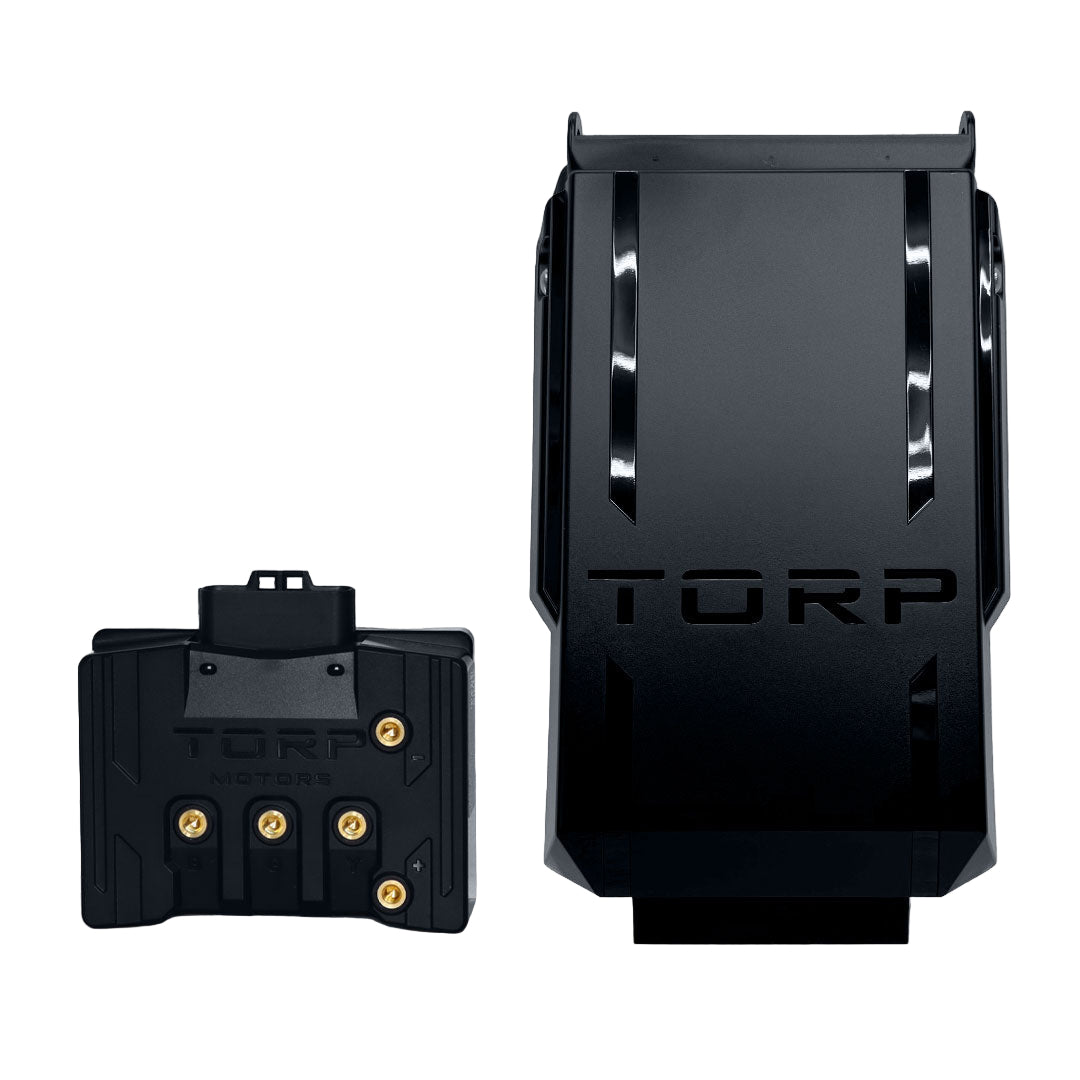

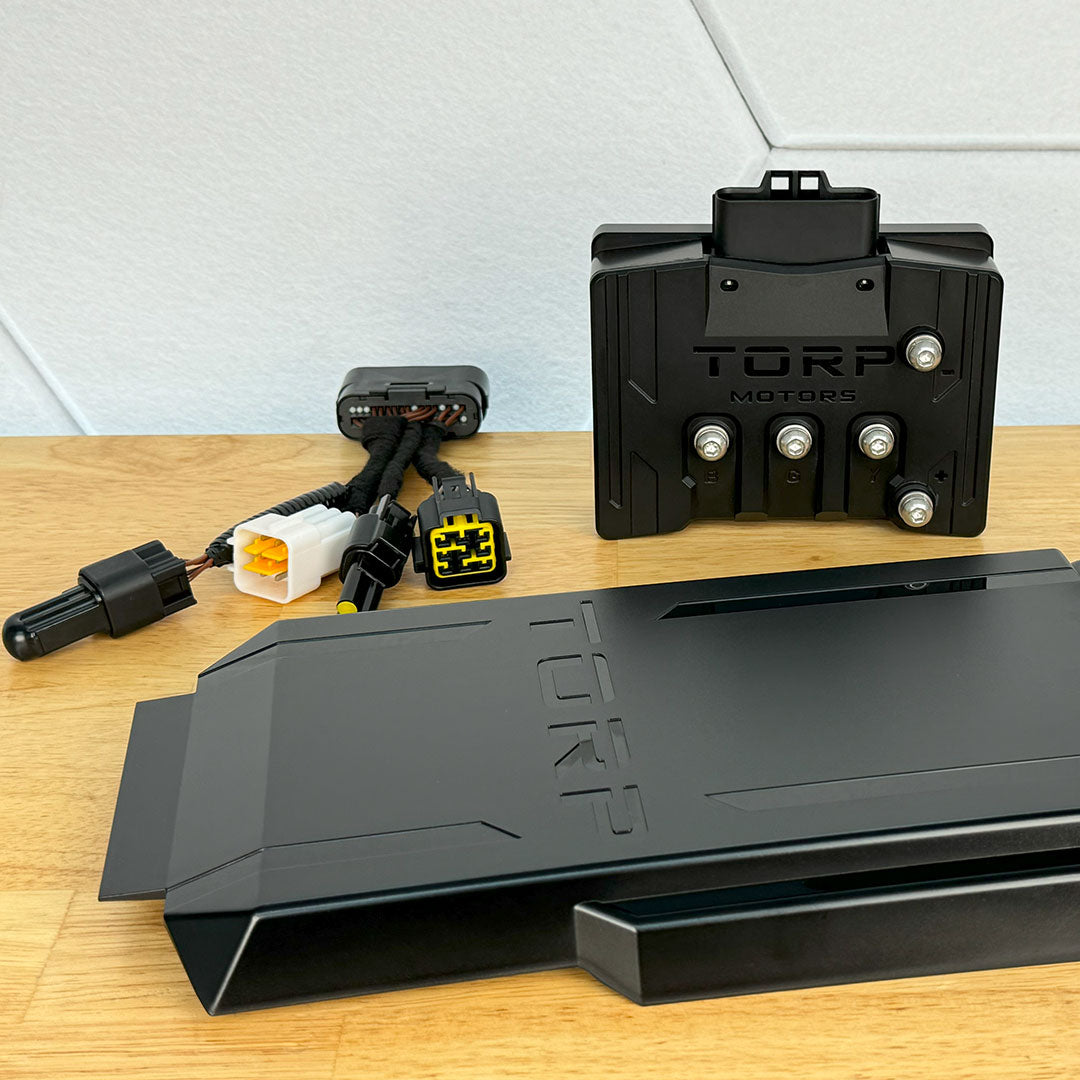

Torp TC500 Controller Kit For Talaria Includes:
- 1x TC500 Controller
- 1x wiring harness
- 1x plastic shield cover
- 2x brackets (MX5)
- 1x fuse with a plastic protection (MX5)
- 1x connector cover (MX5)
- installation hardware (tools, screws)
- short instructions
- 4x stickers
- silicone grease:
-
Insert all of the included silicone grease fully into the receiving end before connecting the wiring harness to your Torp Controller. watch short video
-

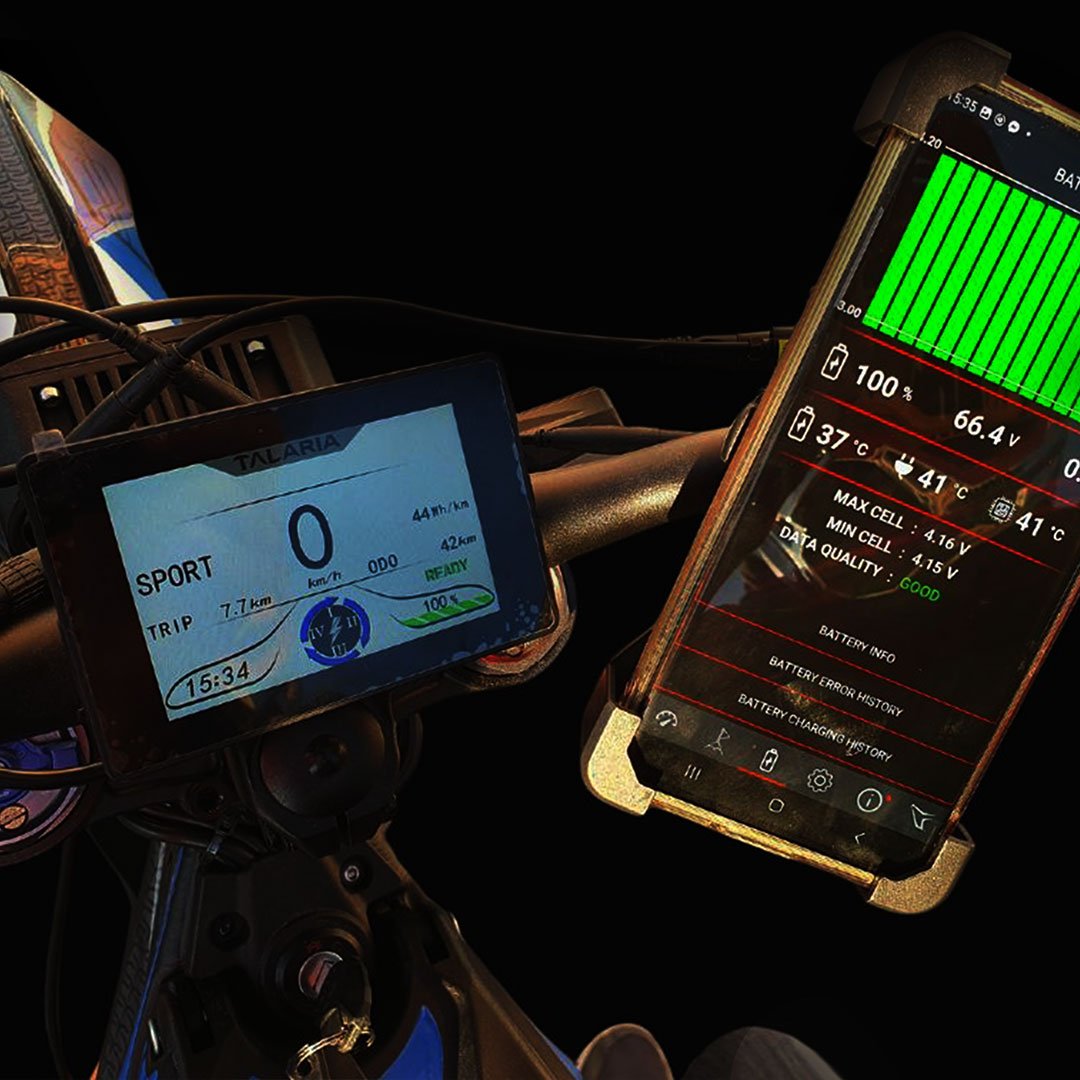

Talaria Torp TC500 Controller Configuration Display
- Works with stock Talaria Display
-
Torp Display (LCD) or Torp Color Display (IPS) Upgrades (optional)
- dedicated display add-ons
- eliminates the need of a mobile app for advanced features
- replaces Talaria stock display
- Mobile App: download for iOS or Android
Torp TC500 Controller Talaria MX3 MX4 MX5 Installation
Talaria MX3/MX4 Torp TC500 Installation Manual (PDF) >
Talaria MX5 Torp TC500 Installation Manual (PDF) >
