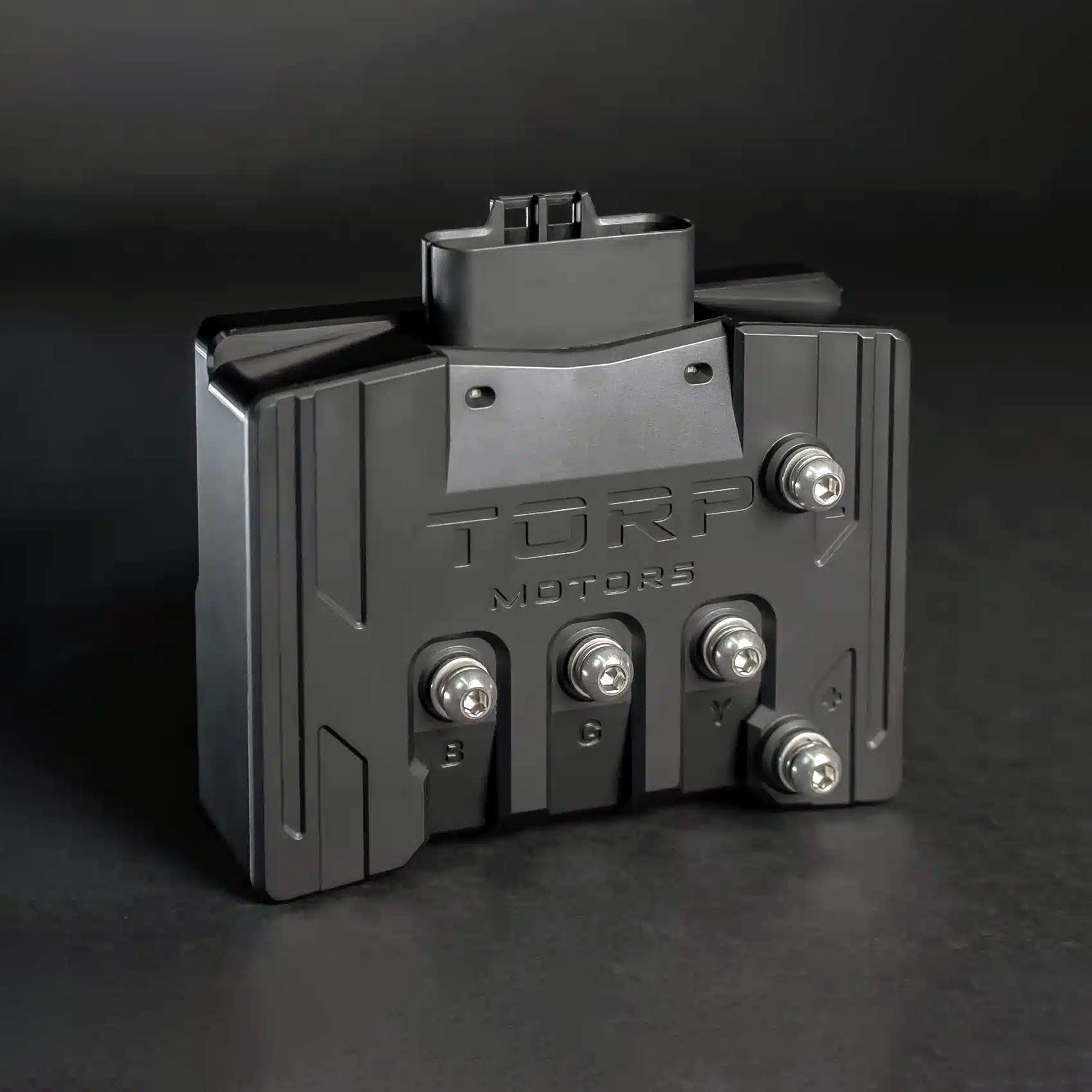

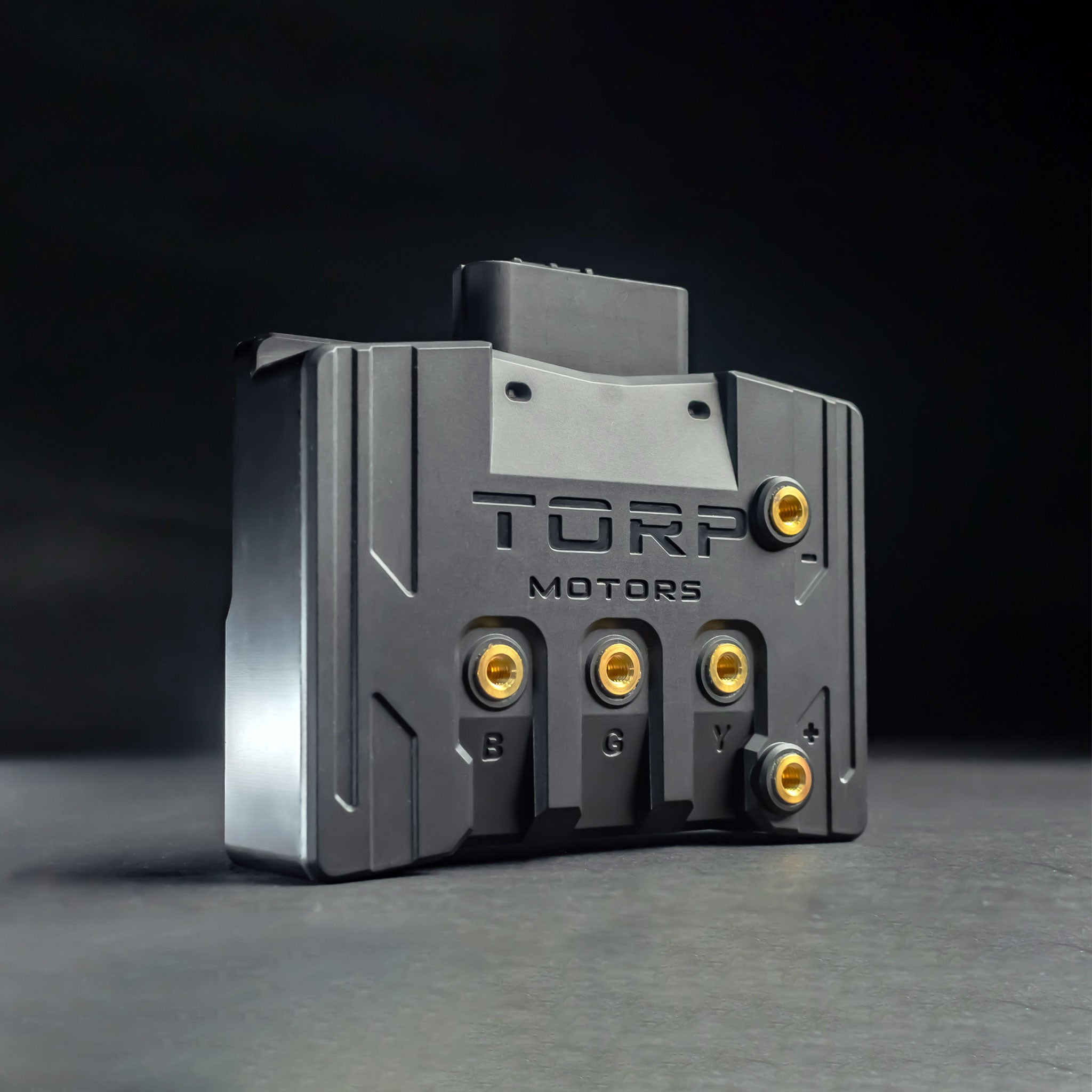

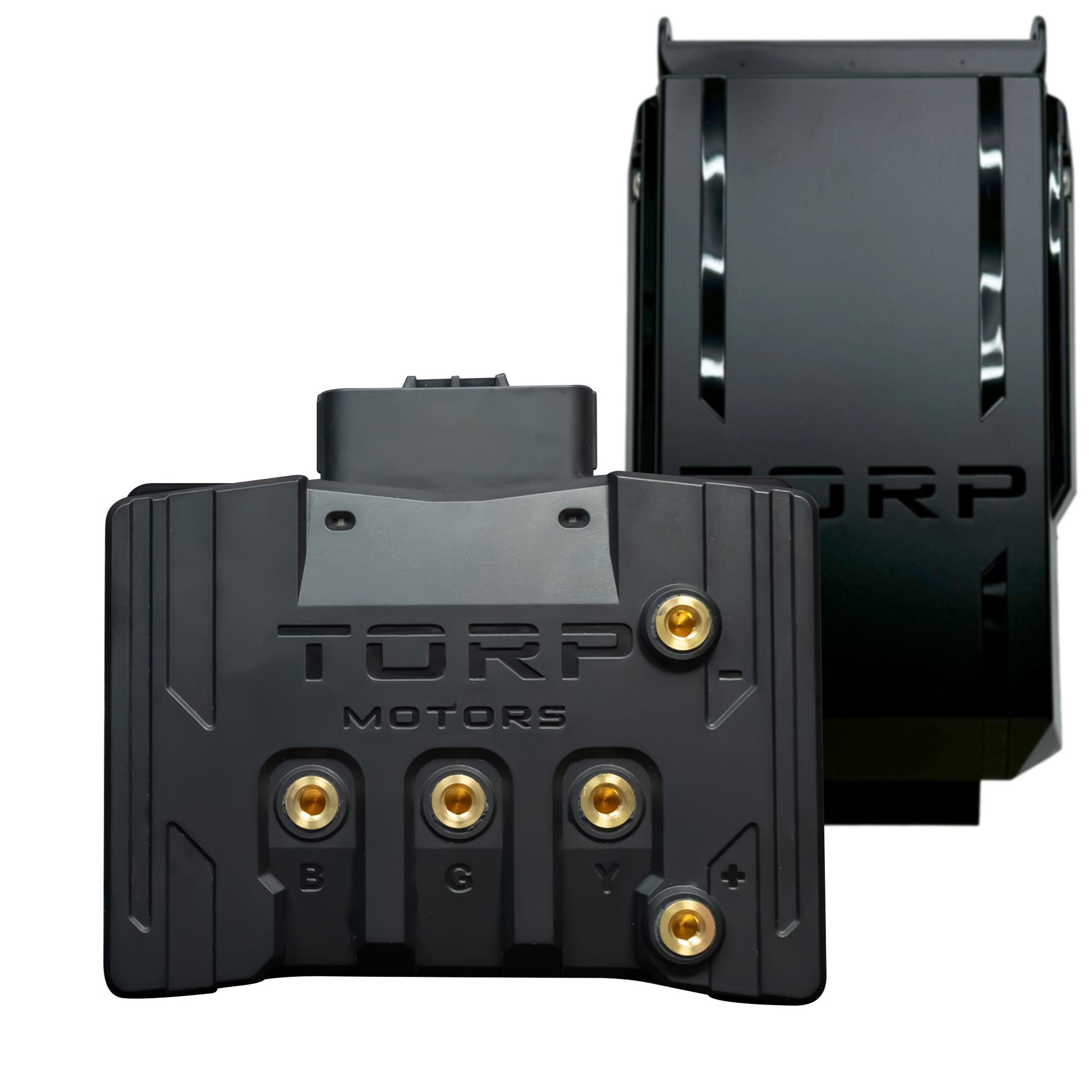

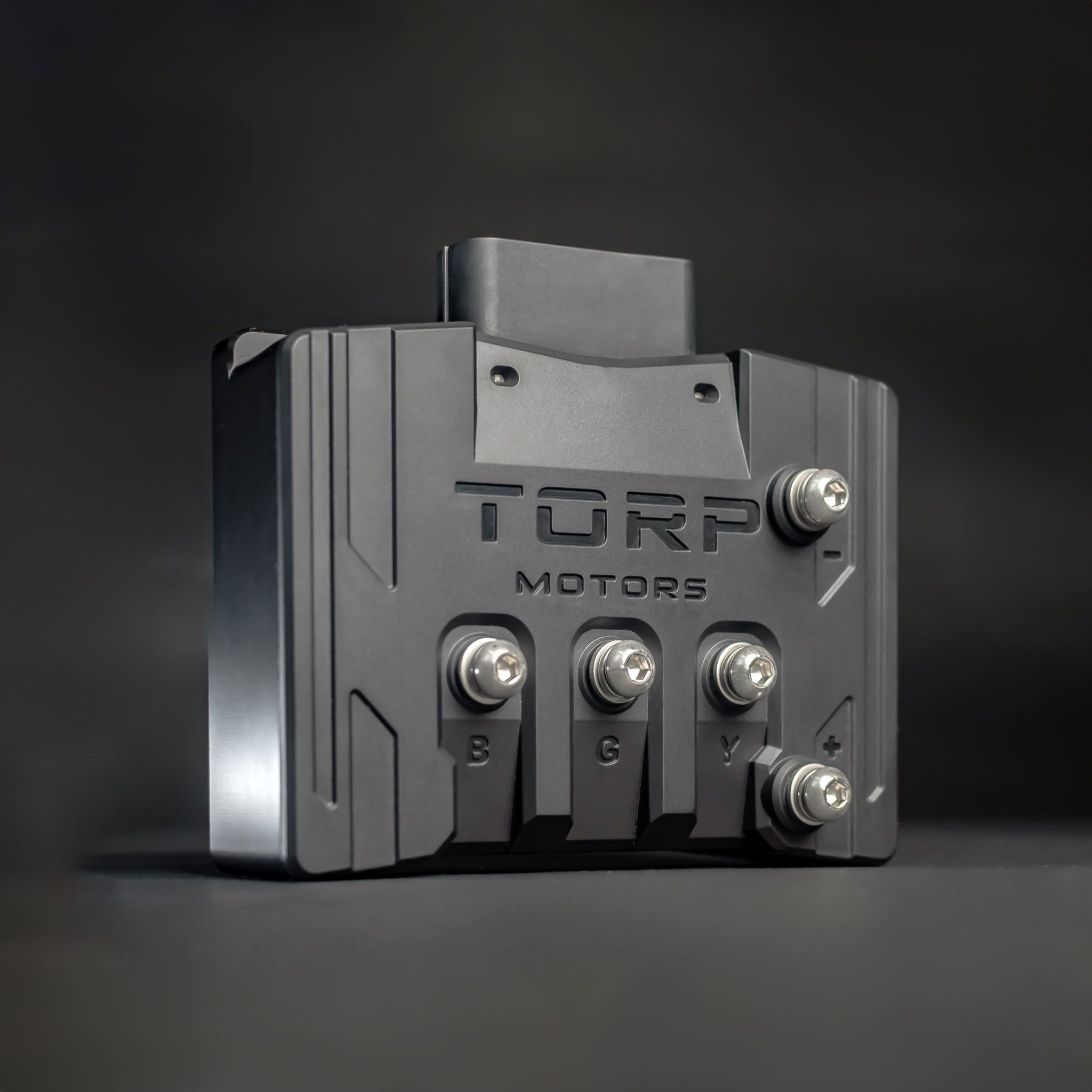

Torp TC500 2.0 Controller For Talaria MX3 MX4 MX5

Transform your riding experience with the powerful, next-generation Torp TC500 2.0 Controller upgrade for Talaria Sting MX3 MX4 MX5 electric dirt bikes. Whether you’re on a stock battery or high-power aftermarket upgrade, the TC500 2.0 gives you seamless control and explosive performance.

Key Features

• 25kW Powerful Controller (see power chart below for Talaria)

• Supports batteries up to 80V nominal 22S (92.4V fully charged)
• Max Power with Stock Talaria Battery: 8kW (MX3), 11.5kW (MX4), 17kW (MX5)
• Max Power with Aftermarket 72V Battery: 17kW (MX3), 18kW (MX4), 20kW (MX5)
• Plug & Play: Ready in 20 minutes
• Easy Installation: unbox, plug in, and ride
• Torp Mobile App: all settings in one place with continuous feature updates
• Pre-configured for Talaria Sting MX3/MX4/MX5
• Stock BMX Communication: get the most out of your stock battery, no bypass needed

• Different regenerative braking and throttle modes
• Launch & Lift Assist enables enhanced stability control for perfect wheelies (available via App update Feb 2026)
• Automotive Standard Throttle Support for max responsiveness and safety
• Advanced industry-leading overcurrent protection < 1μs
• Lightweight: 2.2 lbs
• Fast shipping from the USA
• 2-Year Warranty - register here

Next-Level Innovation

Revolutionary features of the Torp TC500 2.0 Controller will transform your riding experience with unprecedented control and performance.

• Launch & Lift Assist: Advanced stability control for perfect wheelies and enhanced riding dynamics (available via App update Feb 2026)
• Latest Automotive Standard Throttle Support: Precision control with redundant throttle inputs for maximum safety and responsiveness.
• Rugged & Reliable: Built to conquer the toughest terrain effortlessly, with industry-leading overcurrent protection that reacts in under 1 μs.
• Future-Proof: Supports a wide voltage range from 60V to 80V nominal 22S (92.4V fully charged). Designed to handle your future upgrades with ease.
• FOC Technology: Assures a smooth and predictable power-curve from the beginning to the end of the ride.


Compatible With Stock Talaria Functionality

The Torp TC500 2.0 controller keeps all of the stock Talaria Sting functions intact such as the display, kick-stand sensor, crash sensor, power mode button, and brake switch - with the only exception being the start button.

In Tune With Stock Talaria BMS

The Torp TC500 Controller is the only aftermarket controller that is in communication with stock Talaria BMS. This unique feature enables the controller to track battery temperature and cell voltage. It can also adjust the power according to the data it receives from the BMS. All stats can be accessed via App.

Specifications & Features

• Field-Oriented Control (FOC)
• Sensored (HALL Encoder) and sensorless control
• Max Power: 25kW*
• Max Battery Current: 350A
• Max Phase Current: 500A
• Efficiency up to 99%
• Working Temperature: from -15 to 75 °C
• Bluetooth Communication
• Pre-Calibrated: Easy calibration through mobile app
• Overcurrent, overvoltage, undervoltage and overtemperature protection
• Communication with stock BMS
• Different regenerative braking and throttle modes
• Weight: 2.2 lbs (1 kg)
• Mobile App (IOS & Android), stock Sur-Ron display
• Regular firmware updates
• Protection class: IP67**
• 2-year warranty


*The maximum power you can achieve depends on the motor and battery you are using. See power chart below.

**While Torp controllers are rated IP67, making them highly water-resistant, the wiring harnesses for both the controller and bike are not waterproof. In case your bike is exposed to water in any way, it is mandatory to apply dielectric grease inside all connectors. The warranty does not cover malfunction or damage arising from the use of the motor controllers in activities where frequent or extended submersion in water is expected, such as riding in streams, rivers, or flooded areas. Over time, seals and components may degrade, reducing the water-resistant effectiveness of the product. Damage resulting from this natural wear and tear is not covered by the 2-year warranty.

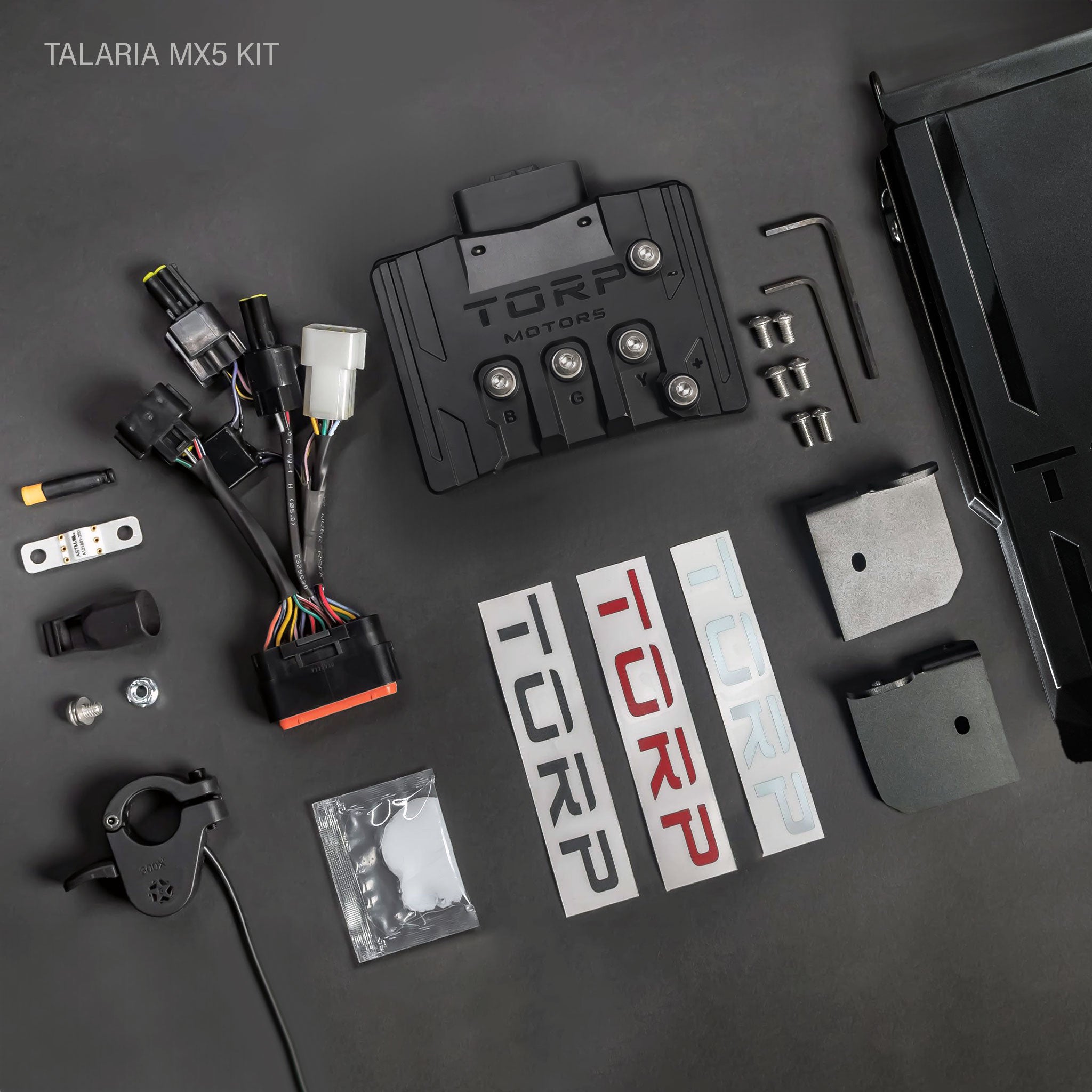

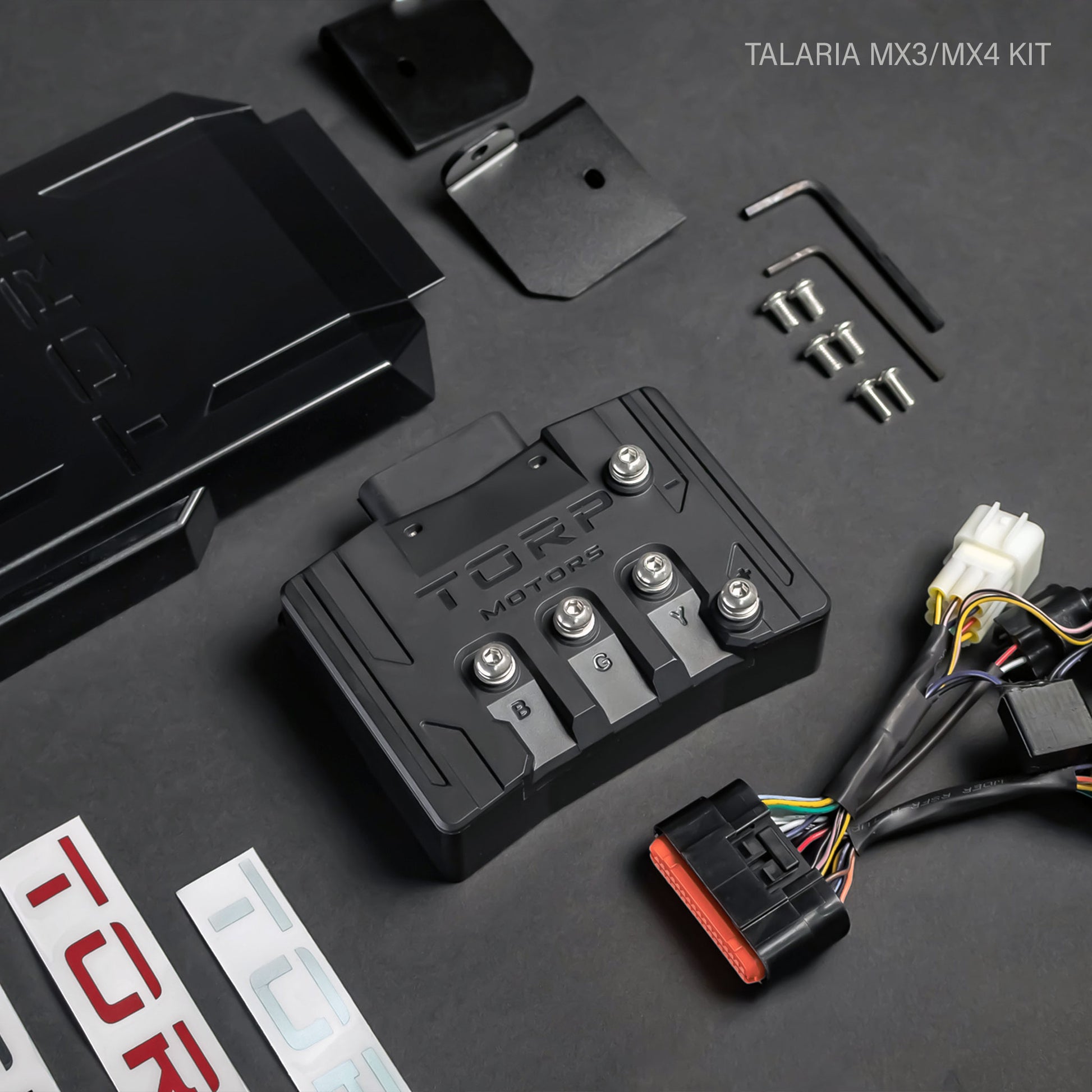

Includes

• Torp TC500 2.0 Controller

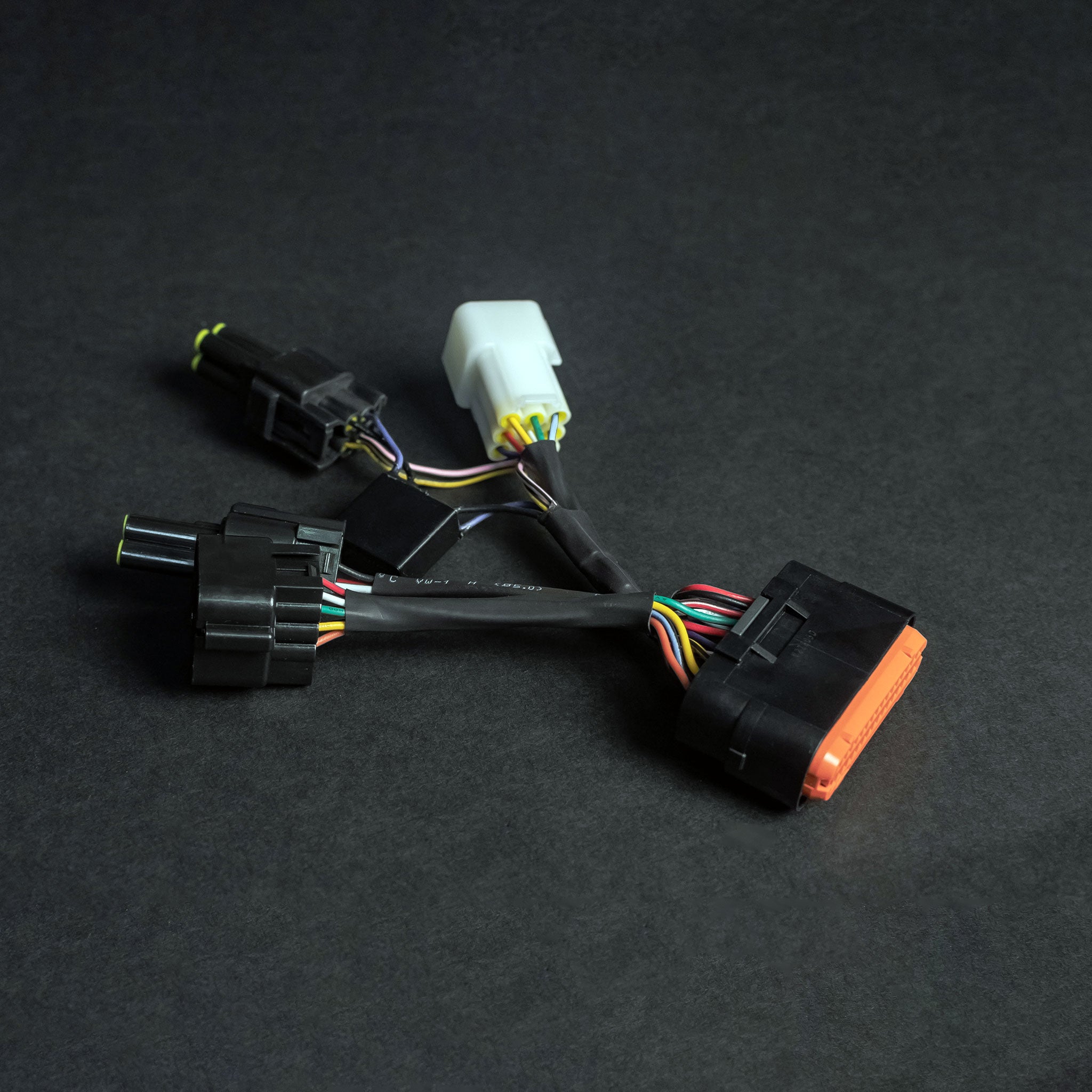

• Talaria MX3/MX4/MX5 Wiring harness

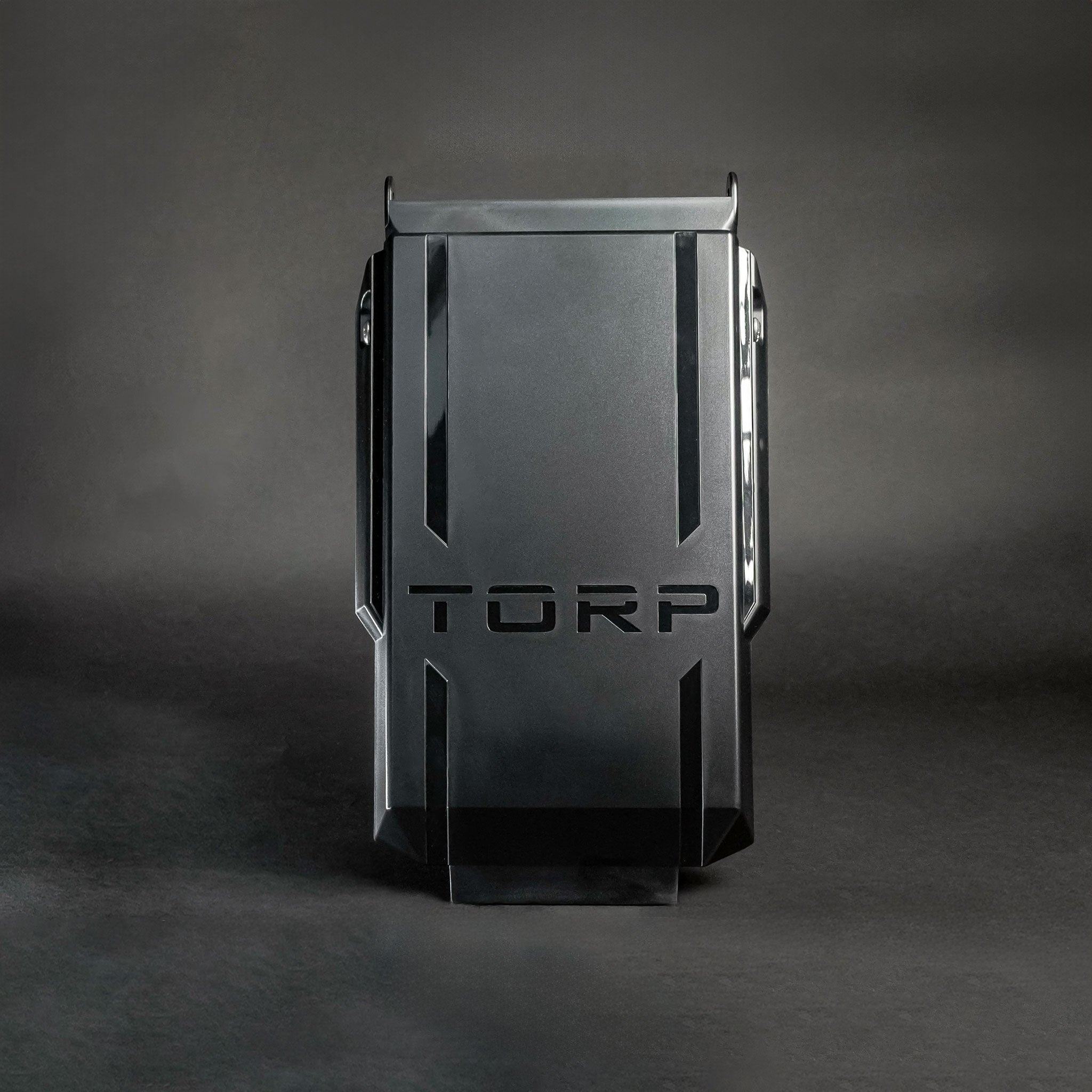

• Plastic shield cover

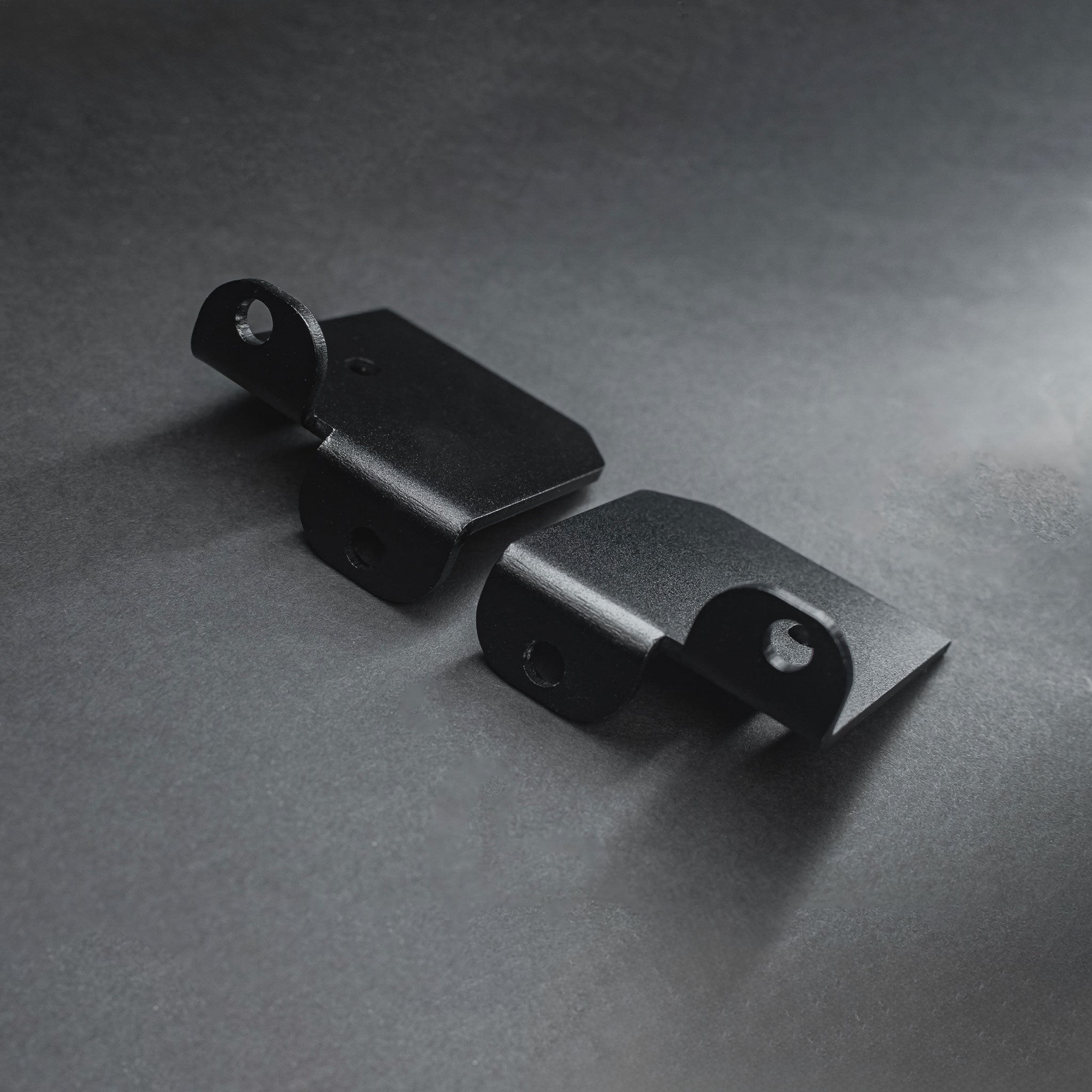

• 2x installation brackets

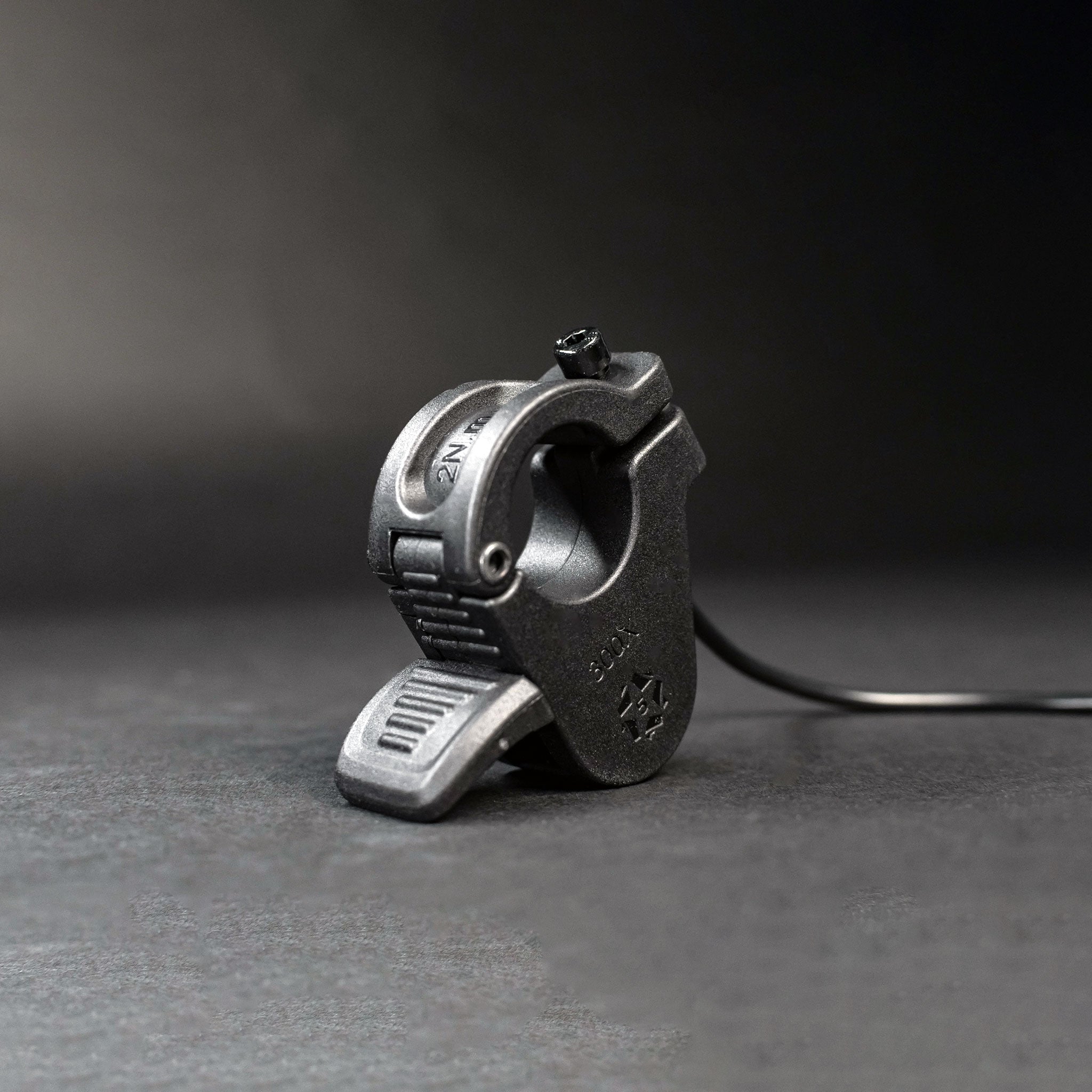

• Thumb throttle (MX5)
• Fuse with a plastic protection (MX5)
• Connector cover (MX5)
• Installation hardware (tools, screws)
• 4x stickers
• Short instructions

Installation

Silicone Grease: Insert all of the included silicone grease fully into the receiving end before connecting the wiring harness to your Torp Controller. watch short video

Talaria MX3/MX4 Torp TC500 Installation Manual (PDF) >

Talaria MX5 Torp TC500 Installation Manual (PDF) >

Torp Controller App

Already pre-configured for Talaria Sting, the TC500 Controller's features and power settings can be custom-adjusted through Torp's simple mobile app.

Talaria Sting + TC500 2.0 Power

with Stock MX3 Motor:

• Stock 60V: 8kW
• Aftermarket 60V: 13.5kW
• Aftermarket 72V: 17kW


with Stock MX4 Motor:

• Stock 60V: 11.5kW
• Aftermarket 60V: 15kW
• Custom 72V: 18kW


with Stock MX5 Motor:

• Stock 72V: 17kW
• Aftermarket 72V: 20kW


Important: Currently, Torp controllers cannot communicate with the stock Talaria batteries produced by SCUD POWER BATTERY EUROPE OFFICE, as shown in the photo below. This means that the max power with this battery + TC500 2.0 will only be a little above the stock power, as opposed to 11.5kW with the stock Talaria battery produced by Greenway. Other controller functionalities are intact. Please check the label on your battery before ordering.
