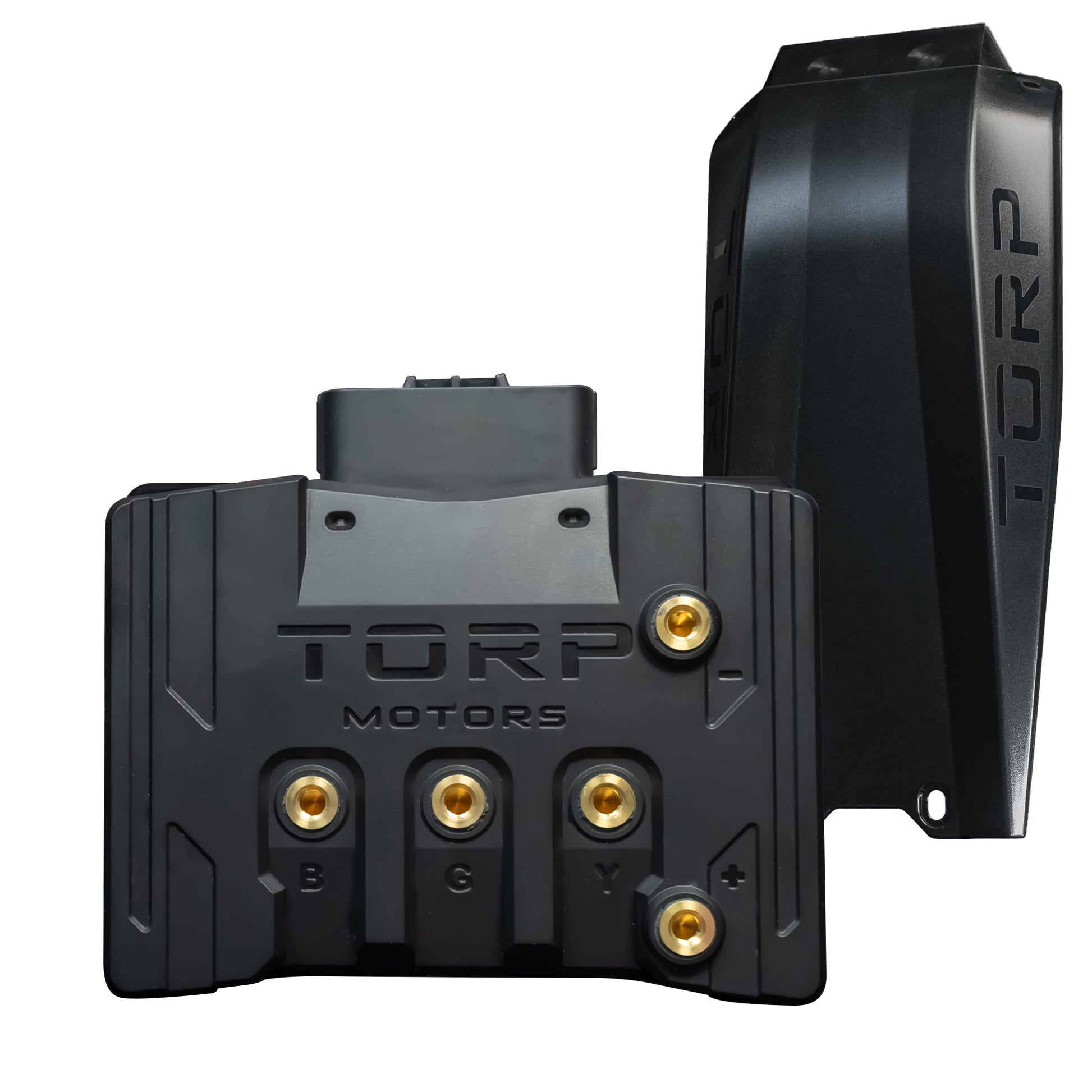

Torp TC500 2.0 Controller For Sur-Ron Light Bee

Transform your riding experience with the powerful, next-generation Torp TC500 2.0 Controller upgrade for the Sur-Ron Light Bee electric dirt bike. Whether you’re on a stock 60V or high-power 80V battery, the TC500 2.0 gives you seamless control and explosive performance.

Key Features

• Powerful 25kW Controller Upgrade (see power chart below)
• Power with stock Sur-Ron LBX motor + 72V battery: 17kW
• Power with TM25 Motor + 72V/80V battery: up to 30kW
• Supports batteries up to 80V nominal 22S (92.4V fully charged)
• Plug & Play: Ready in 20 minutes
• Easy Installation: unbox, plug in, and ride
• Torp Mobile App: all settings in one place with continuous feature updates
• Pre-configured for Sur-Ron Light Bee / Segway X260
• Stock BMX Communication: get the most out of your stock battery, no bypass needed

• Fully Compatible with Stock Functionality
• Different regenerative braking and throttle modes
• Launch & Lift Assist enables enhanced stability control for perfect wheelies (available via App update Feb 2026)
• Automotive Standard Throttle Support for max responsiveness and safety
• Advanced industry-leading overcurrent protection < 1μs
• Lightweight: 2.2 lbs
• Fast shipping from the USA
• 2-Year Warranty - register here

Next-Level Innovation

Revolutionary features of the Torp TC500 2.0 Controller will transform your riding experience with unprecedented control and performance.

• Launch & Lift Assist: Advanced stability control for perfect wheelies and enhanced riding dynamics - available via App update by February 2026.
• Latest Automotive Standard Throttle Support: Precision control with redundant throttle inputs for maximum safety and responsiveness.
• Rugged & Reliable: Built to conquer the toughest terrain effortlessly, with industry-leading overcurrent protection that reacts in under 1 μs.
• Future-Proof: Supports a wide voltage range from 60V to 80V nominal 22S (92.4V fully charged). Designed to handle your future upgrades with ease.
• FOC Technology: Assures a smooth and predictable power-curve from the beginning to the end of the ride.

Fully Compatible With Stock Sur-Ron Light Bee Functionality

The Torp TC500 2.0 is the only controller on the market that keeps all of the stock Sur-Ron Light Bee functions intact while boosting your bike's performance. Kick Stand Sensor, Crash Sensor, Power Mode Button, Stock Display, Brake Switch. *Traction control is in development.

In Tune With Stock Sur-Ron BMS

The Torp TC500 Controller is the only aftermarket controller that is in communication with stock Sur-Ron BMS. This unique feature enables the controller to track battery temperature and cell voltage. It can also adjust the power according to the data it receives from the BMS. All stats can be accessed via App.

Specifications & Features

• Field-Oriented Control (FOC)
• Sensored (HALL Encoder) and sensorless control
• Max Power: 25kW*
• Max Battery Current: 350A
• Max Phase Current: 500A*
• Efficiency up to 99%
• Working Temperature: from -15 to 75 °C
• Bluetooth Communication
• Pre-Calibrated: Easy calibration through mobile app
• Overcurrent, overvoltage, undervoltage and overtemperature protection
• Communication with stock BMS
• Different regenerative braking and throttle modes
• Weight: 2.2 lbs (1 kg)
• Mobile App (IOS & Android), stock Sur-Ron display
• Regular firmware updates
• Protection class: IP67**
• 2-year warranty

*The maximum power you can achieve depends on the motor and battery you are using. The max phase current depends on your motor. See power chart below.

**While Torp controllers are rated IP67, making them highly water-resistant, the wiring harnesses for both the controller and bike are not waterproof. In case your bike is exposed to water in any way, it is mandatory to apply dielectric grease inside all connectors. The warranty does not cover malfunction or damage arising from the use of the motor controllers in activities where frequent or extended submersion in water is expected, such as riding in streams, rivers, or flooded areas. Over time, seals and components may degrade, reducing the water-resistant effectiveness of the product. Damage resulting from this natural wear and tear is not covered by the 2-year warranty.

Includes

• Torp TC500 2.0 controller
• Plastic shield cover
• Sur-Ron LBX wiring harness
• Silicone grease
• Screws and tools for installation

• 4 stickers

• Short instructions

Installation

Silicone Grease: Insert all of the included silicone grease fully into the receiving end before connecting the wiring harness to your Torp Controller. watch short video

Torp TC500 Controller Sur-Ron Light Bee User Manual

Torp Controller App

Already pre-configured for Sur-Ron Light Bee, the TC500 Controller's features and power settings can be custom-adjusted through Torp's simple mobile app.

Sur-Ron Light Bee + TC500 2.0 Power

with Stock Motor:

• Stock 60V 32Ah/34Ah/40Ah: 7kW
• Stock 60V 38Ah: 8.5kW*
• Aftermarket 60V: 13.5kW**
• Aftermarket 72V: 17kW


with TM25 Motor:

• Aftermarket 72V: 27kW

• Aftermarket 80V: 30kW


*Depending on the battery manufacturer. **Depending on the voltage sag.

Note: There is no need to bypass the battery with the TC500 2.0 Controller. However, TC500 2.0 will work with a bypassed battery as well.
