Torp TM25 Motor Upgrade For Sur-Ron Light Bee Electric Motorbike
Regular price
$1,225.00
Sale price
$1,225.00
Regular price
$1,375.00
Shipping calculated at checkout.
Hurry up, only 3 items left in stock.

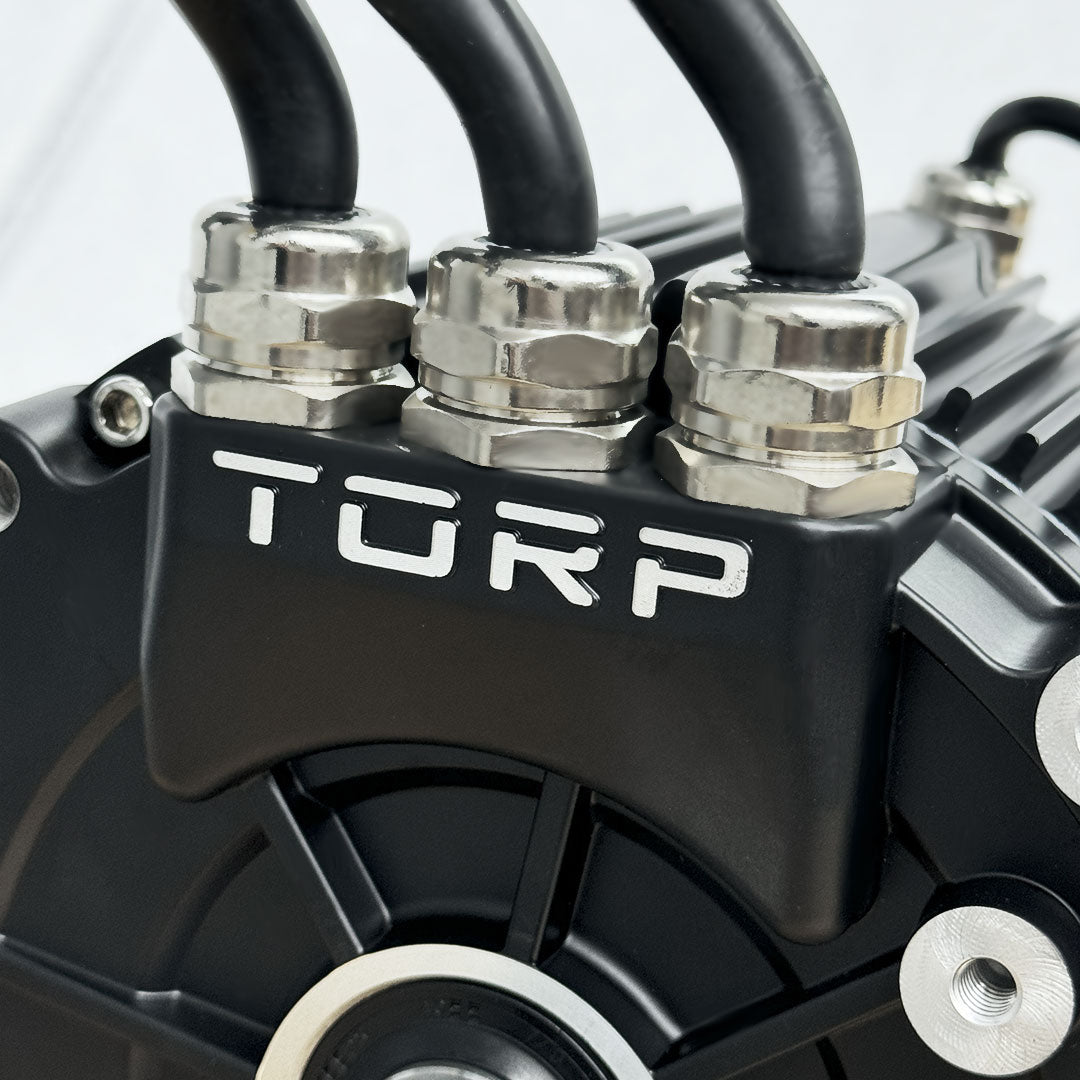

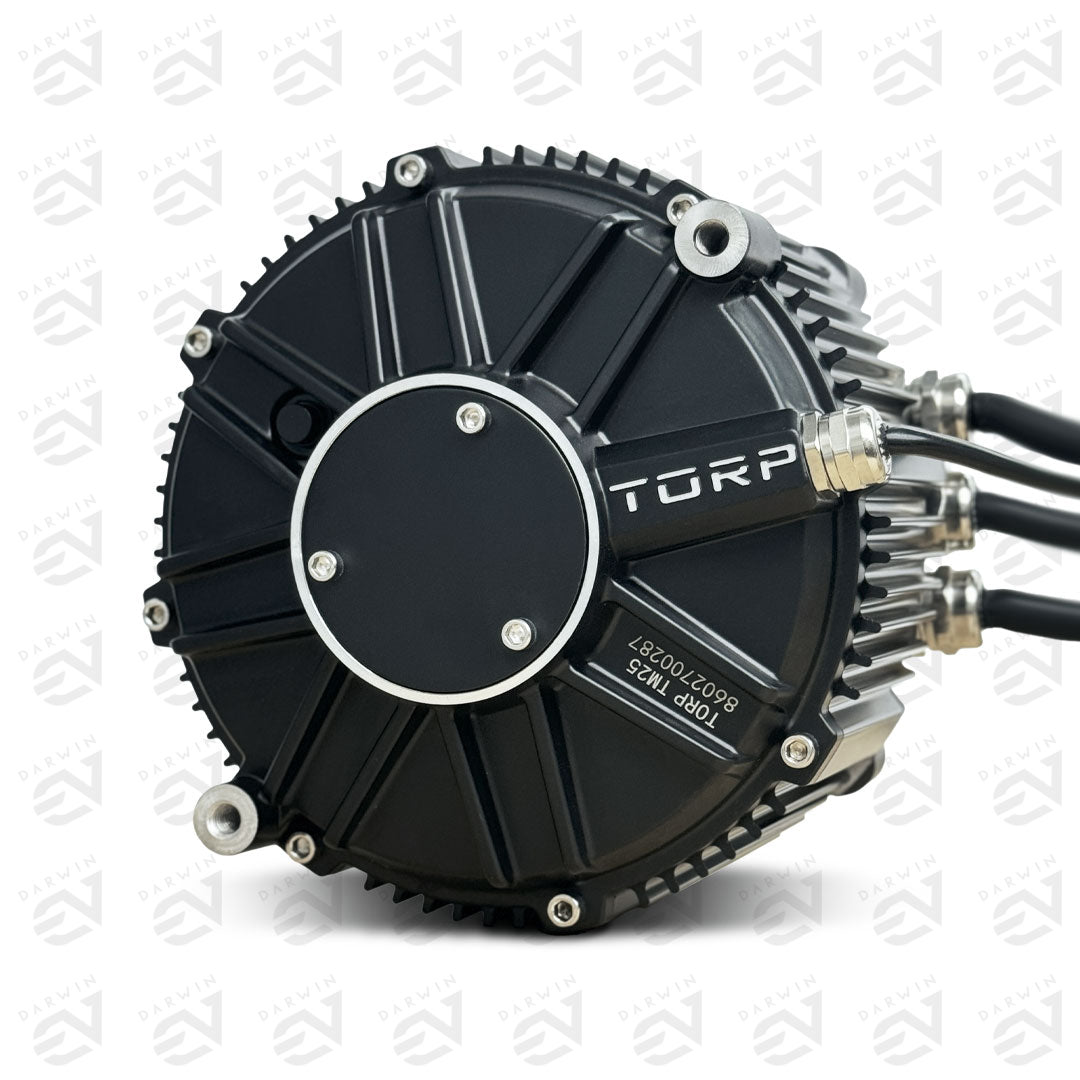

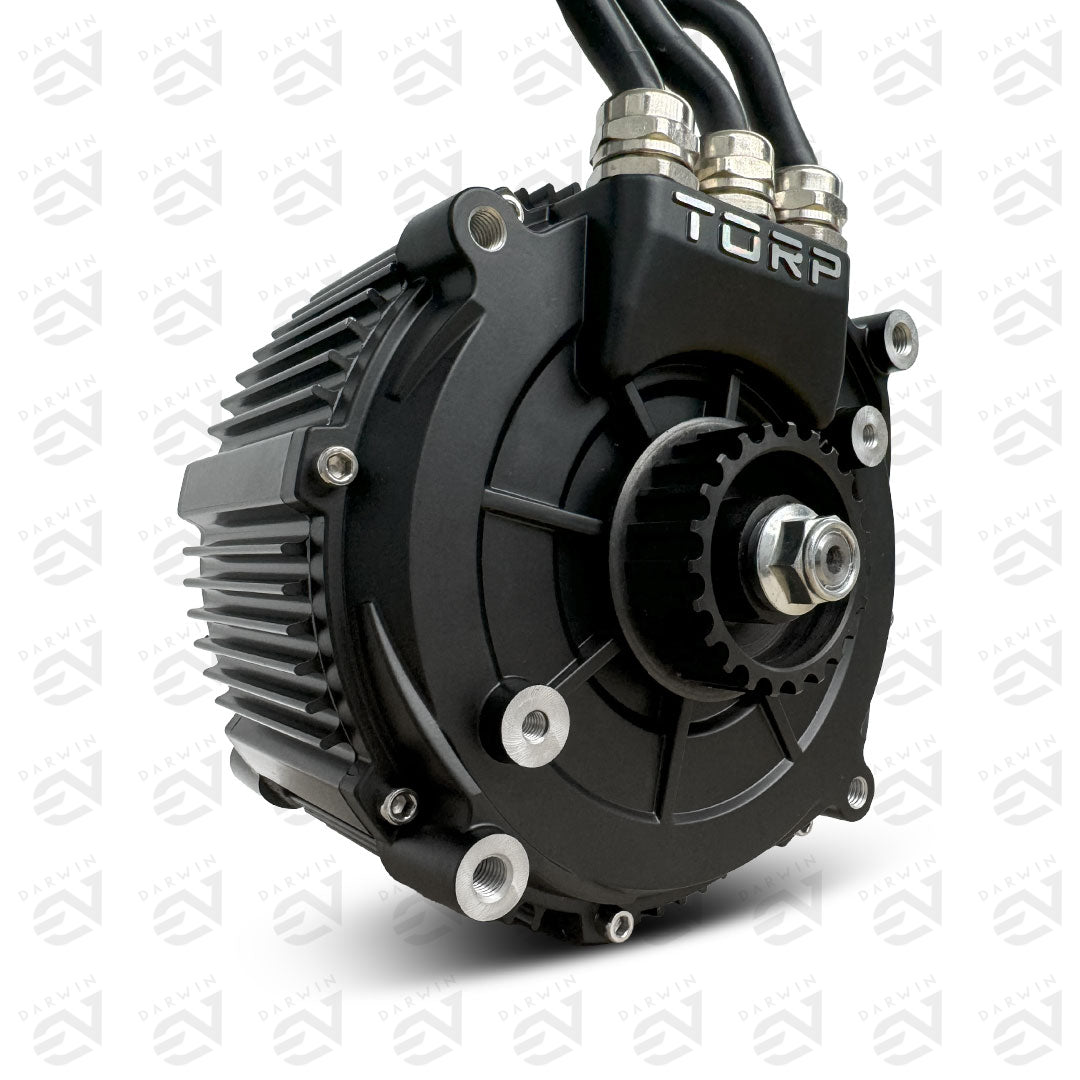

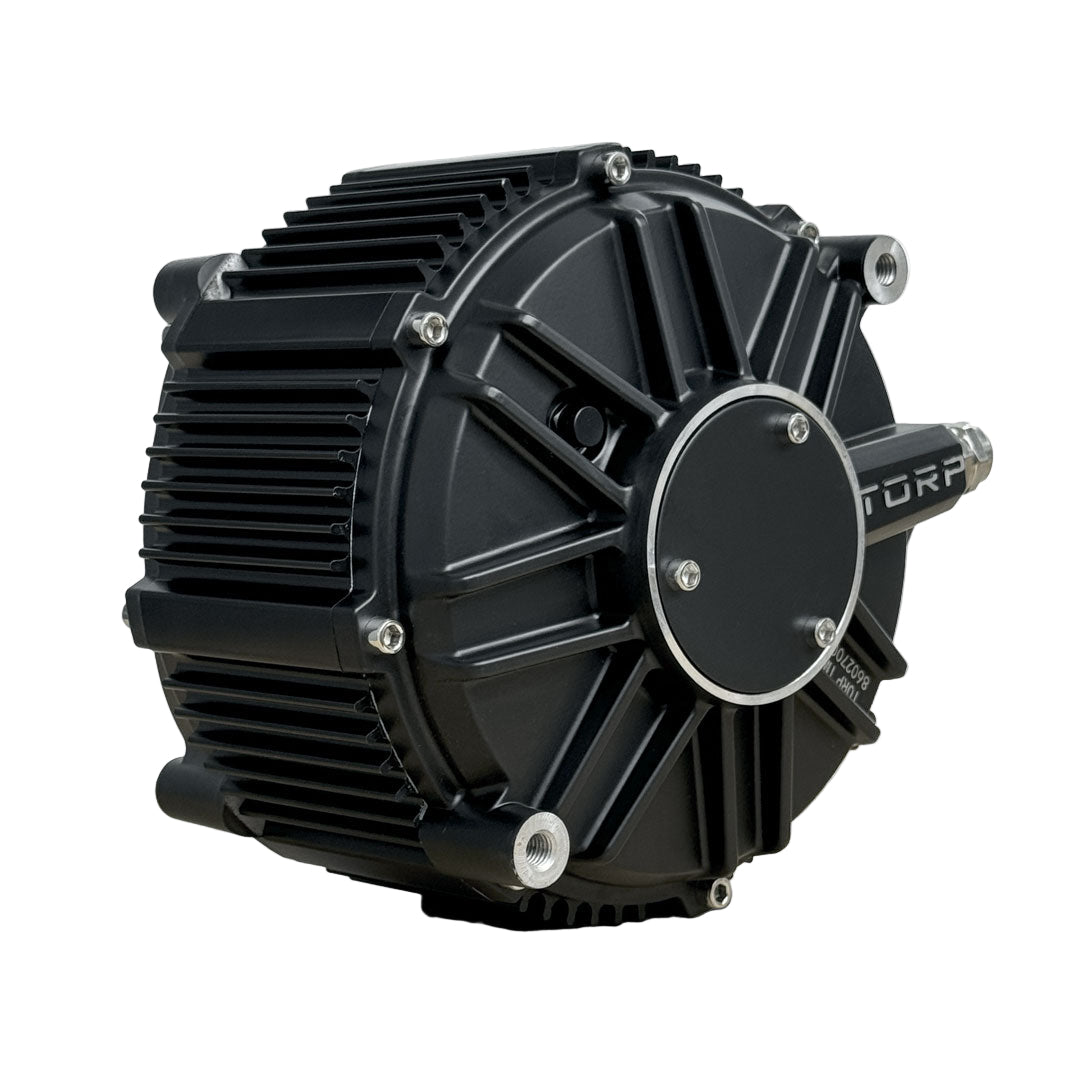

Torp TM25 Motor (encoder) is an aftermarket performance upgrade designed for the Sur-Ron Light Bee electric motorbike. Experience a powerful, smoother ride with the ultimate Sur-Ron motor upgrade.
Features
| ✔ More Power | ✔ 3X Less Resistance | ✔ Faster Acceleration |
| ✔ Increased Torque | ✔ Overall Smoothness | ✔ Compatibility |
| ✔ High-Temp Performance | ✔ Durability | ✔ 2-Year Warranty |
Torp TM25 Motor Specs
- Motor Type: IPM
- Rated Voltage: 48V-120V
-
Peak Power:
- on 72V = 27kW
- on 80V = 31kW
- on 120V = 40kW
- Continuous Power: 13 kW
- Phase Current: up to 700A
- KV Rating: 85 RPM/V
- Rated Speed: 6,000 RPM
- Max RPM: 10,000 RPM
- Torque 500A: 52.5 Nm
- Torque 700A: 67 Nm
- Kt Constant: 0.105 Nm/A
- Motor Resistance: 3.4 mΩ
-
Position Sensor: Encoder
- *Hall sensor available, please note and allow +7 days
- Encoder Points: 1024 (4096)
- Number of Pole Pairs: 5
- Cooling Method: Air
- Magnet Temp: 150°C (302°F)
- Temp Sensor: PT1000
- Efficiency: 95%
- Protection Class: IP67*
- Weight: 21.6 lbs (9.8 kg)
- Motor Size: 4.53×6.5 in (115×165 mm)
- Installation: Mid
Torp motors require a controller upgrade. For best performance, we recommend the Torp TC1000 Controller. The Torp TM25 Motor features mounting options for both Encoder and Hall sensors to work with other Sur-Ron controllers.
