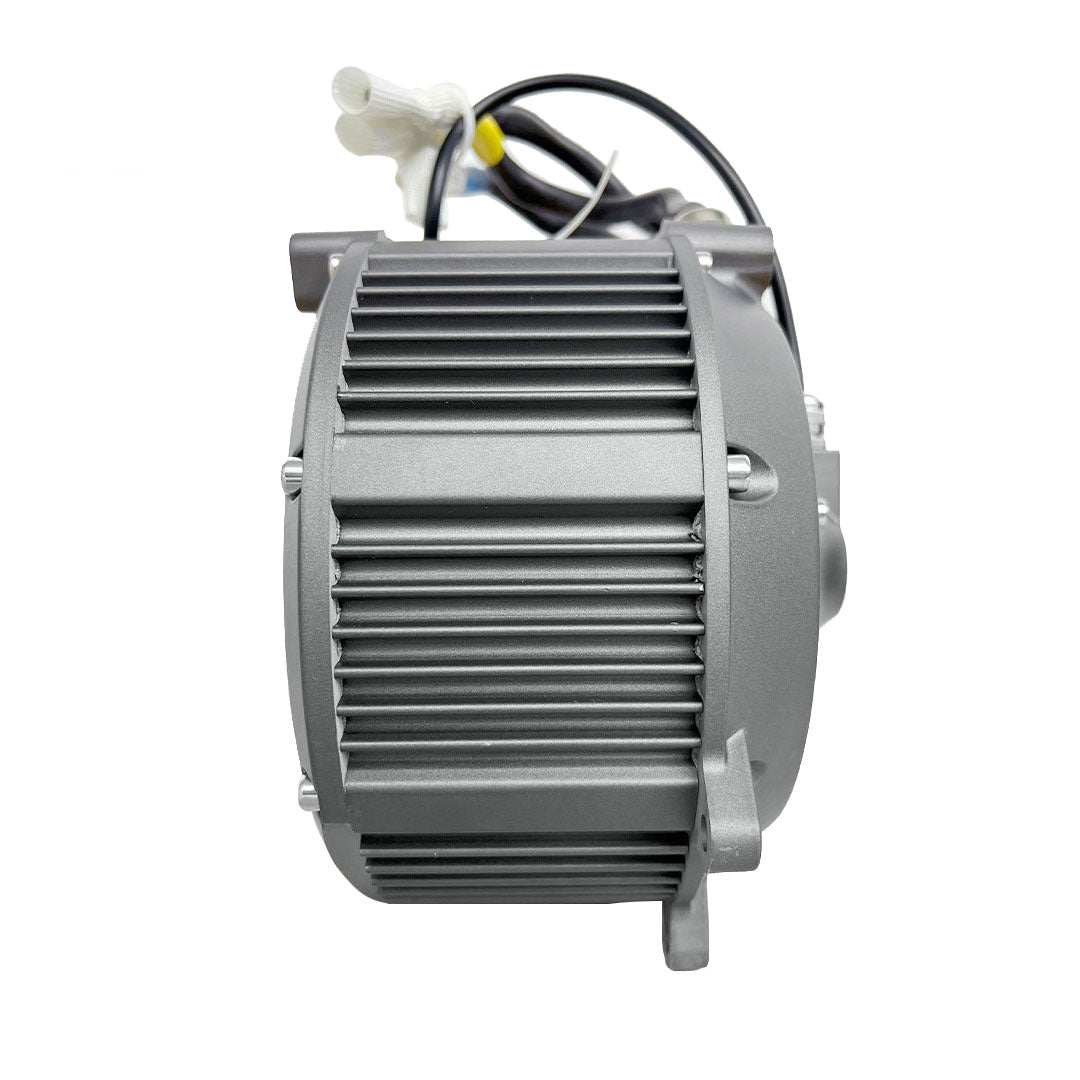

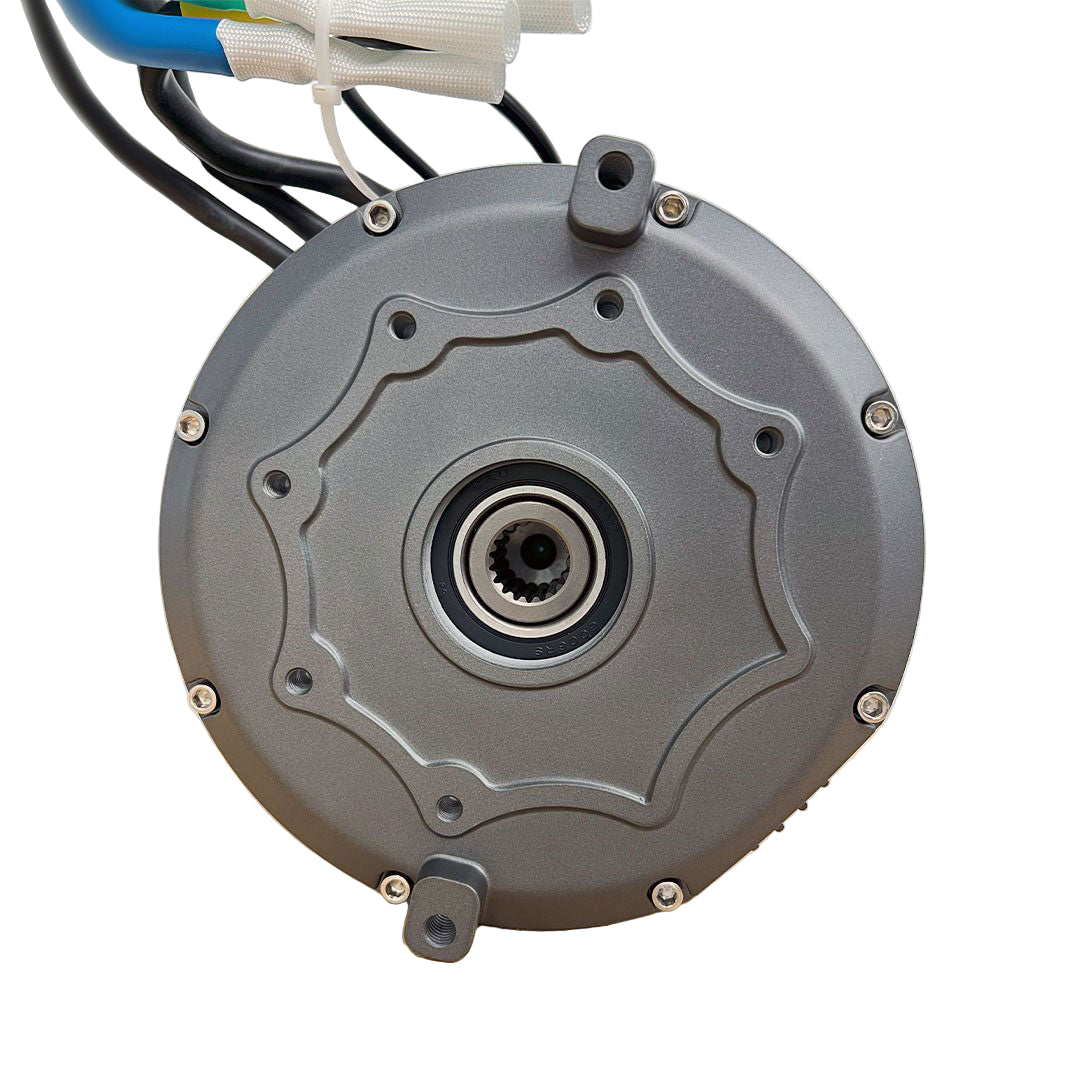

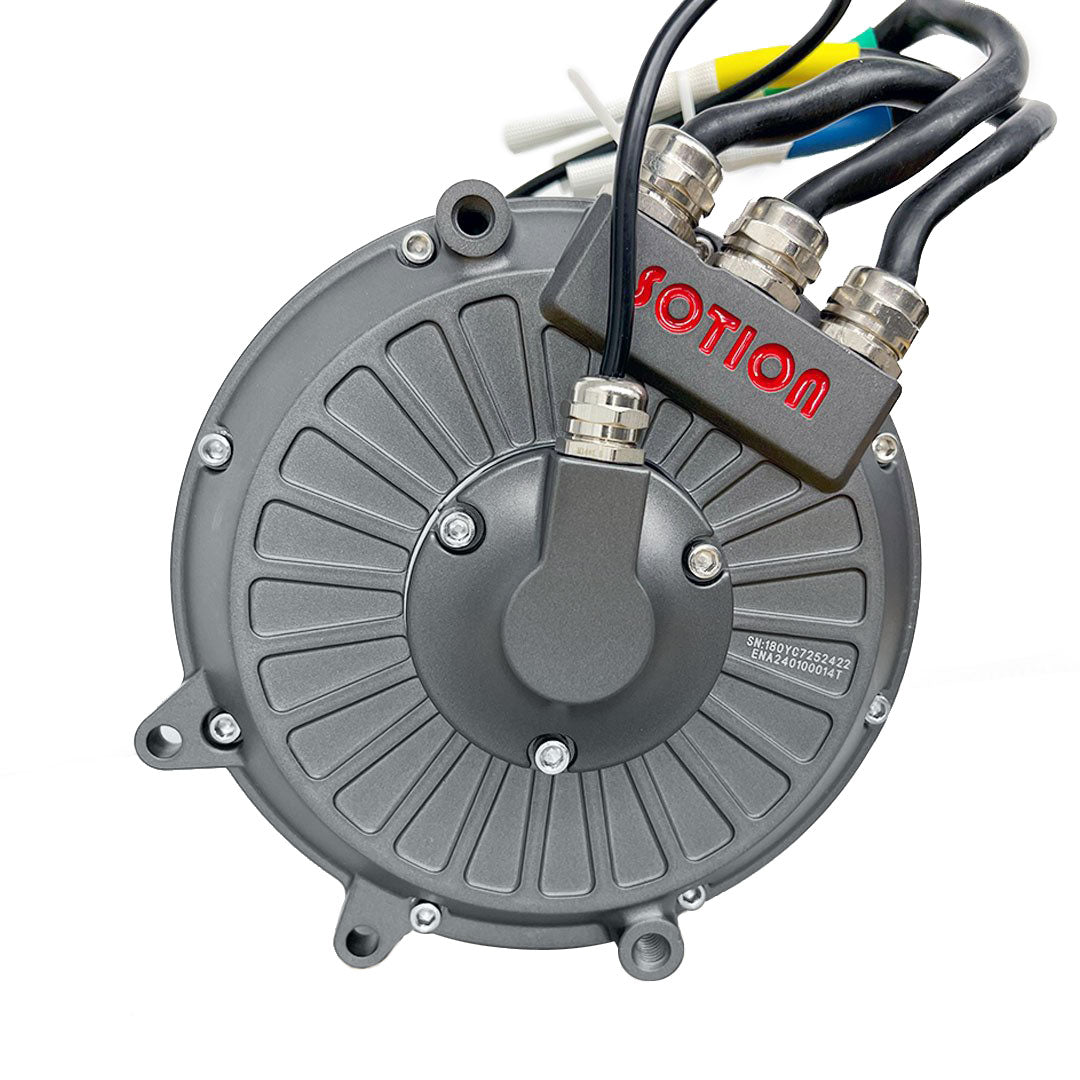

Sotion Motor Upgrade For Talaria Sting Electric Motorbike

Sotion Motor (FW02) for the Talaria Sting electric motorbikes is a high-power, aftermarket performance upgrade.

Sotion Motor For Talaria Features

• High-Power 72V Motor Upgrade
• Plug-And-Play: No Modifications Required
• Durable Internal Magnet Motor (IPM) Design
• Power Performance: 12kW / 24kW Peak

*Talaria X3 is compatible with the Sotion Motor FW01: Talaria X3 / Hall Sensor

Talaria Sotion Motor Specs

• Product Model: FW02
• Motor Size: 180mm x 145mm
• Motor Weight: 21.6 lbs (9.8 kg)
• Rated Voltage: 72V
• Rated Power: 12kW
• Peak Power: 24kW
• Rated Torque: 22 N.m
• Peak Torque: 60 N.m
• Peak Phase Current: 650A
• Rated Speed: 5200 RPM
• Peak Speed: 10000 RPM
• Max Efficiency: 92%
• Number of Pole Pairs: 5
• Position Sensor Options: Encoder
• Temperature Sensor: NTC
• Insulation Class: F (155°C)
• Protection Grade: IP67
• Cooling Method: Natural Air Cooling
