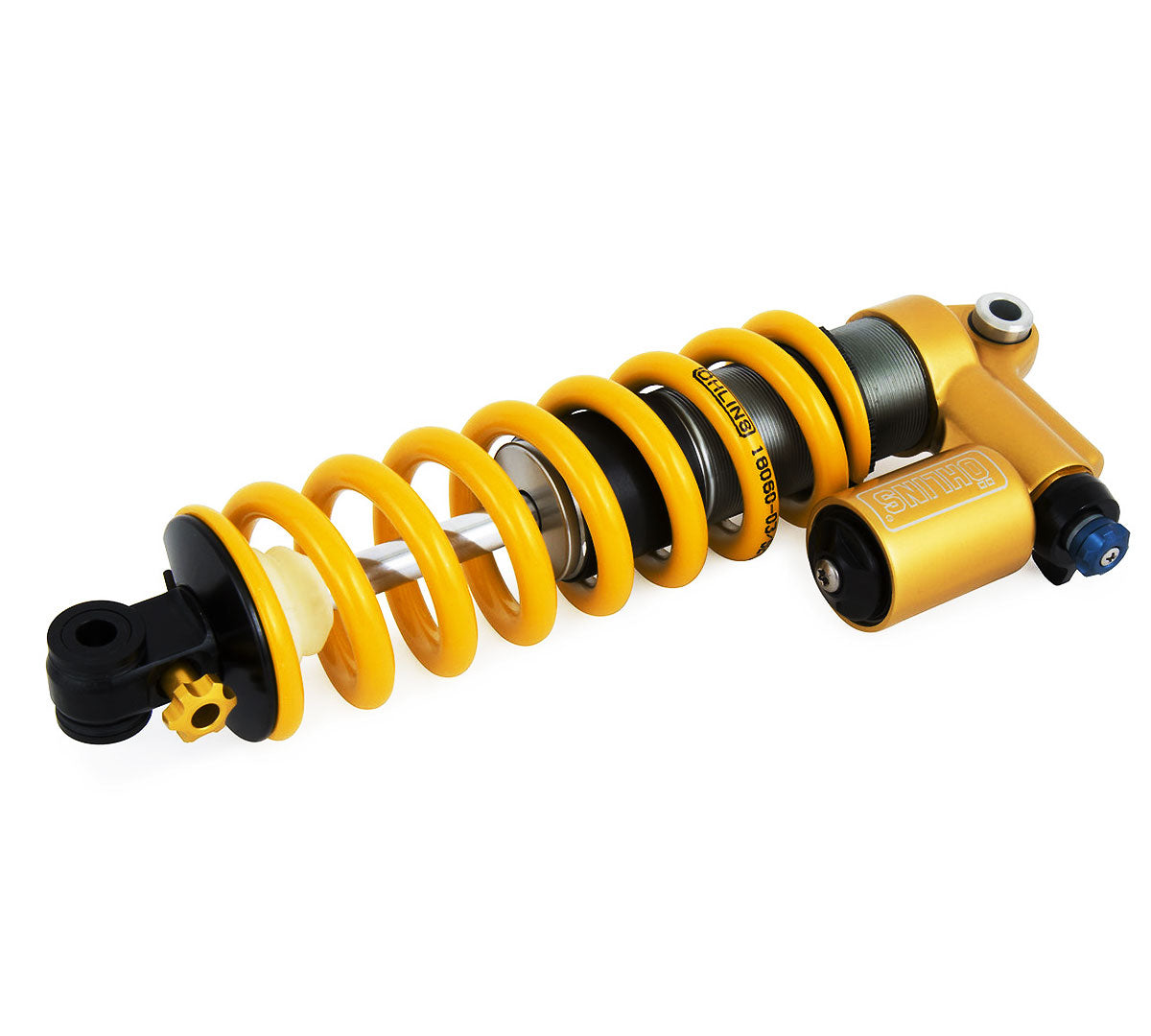

Ohlins Shock Absorber TTX22M With Ohlins 411 Spring

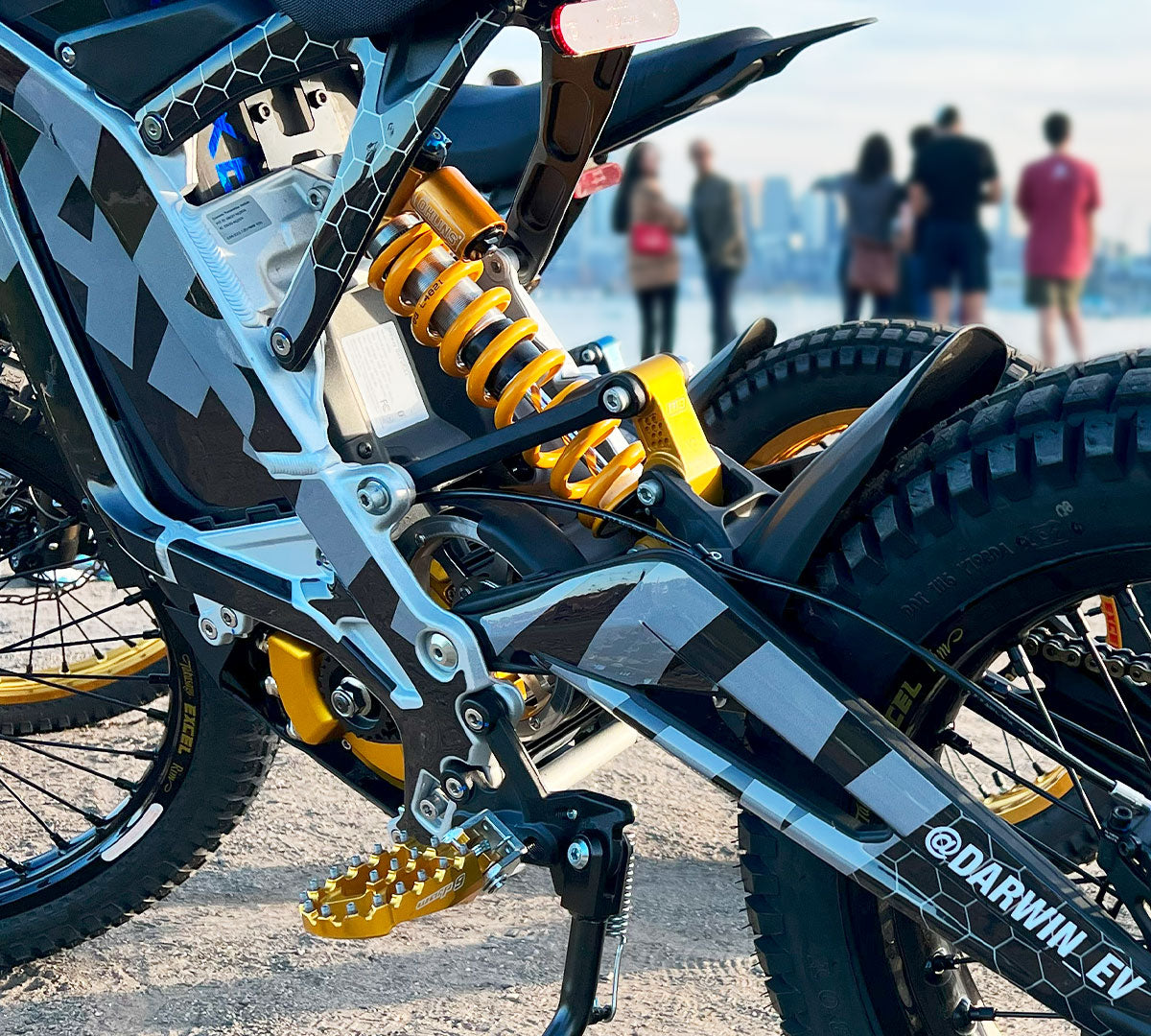

Ohlins TTX22M Shock Absorber with Ohlins 411 Spring is a premium rear suspension upgrade for Sur-Ron, Segway, Talaria, and E Ride Pro electric motorbikes.

Plug-And-Play, Tuned for E-Moto - This product is sold as a package and includes the following:

1. Ohlins TTX22M Shock Absorber
2. Ohlins 411 Coil Spring (yellow)
3. E-Moto mounting hardware
4. Bushings (16mm to 15mm)
5. 15mm Bushing Kit

Ohlins TTX22M Shock 411 Spring Features

• Shock Length: 10.5"
• Shock Stroke: 3.5"
• Coil Spring Size: 411 / 89
• Coil Spring Color: yellow
• TTX Damping Technology by Öhlins
• Nitrogen pressurized bladder reservoir system
• Easy setup for various riding conditions
• 3-click high-speed compression adjustment (external)
• 16-click low-speed compression adjustment (external)
• 7-click rebound damping adjustment (external)
• Fits Sur-Ron Light Bee, Segway X160/X260, Talaria Sting MX3/MX4/MX5, Talaria X3 (XXX), E Ride Pro-SS

TTX22M Technology By Ohlins

Ohlins TTX22M twin tube design enables gas pressure to backup the low-pressure side of the piston in order to maintain controlled pressure levels. This ensures consistent damping performance on all types of terrain. It also improves the damping response for excellent control of the bike and tire movement. The low-speed and high-speed compression, in addition to rebound damping, is externally adjustable.
