Lewis EP6+ Brake System: Surron, Segway, Talaria, E Ride Pro

Delivering elite-level stopping power for aggressive riding and high-speed builds, the Lewis EP6+ brake system is a worthy upgrade for Surron Light Bee, Segway, Talaria, and E Ride Pro electric dirt bikes. With Lever Reach and Leverage Ratio Adjustment, Lewis Brakes can adapt to various preferences for a superior braking experience.

The EP6+ brake is equipped with 6 pistons for powerful braking and 4 precision bearings in each brake lever for stability and smoothness. Constructed from aerospace-grade aluminum, Lewis EP6+ Brakes are lightweight, yet reliably strong. Additionally, their cooling fins and brake pads enable improved heat dissipation for high-temperature performance.

Choose a single left or right brake assembly, or upgrade to the complete system which includes both brakes as well as heavy-duty disc brake rotors made by Lewis.

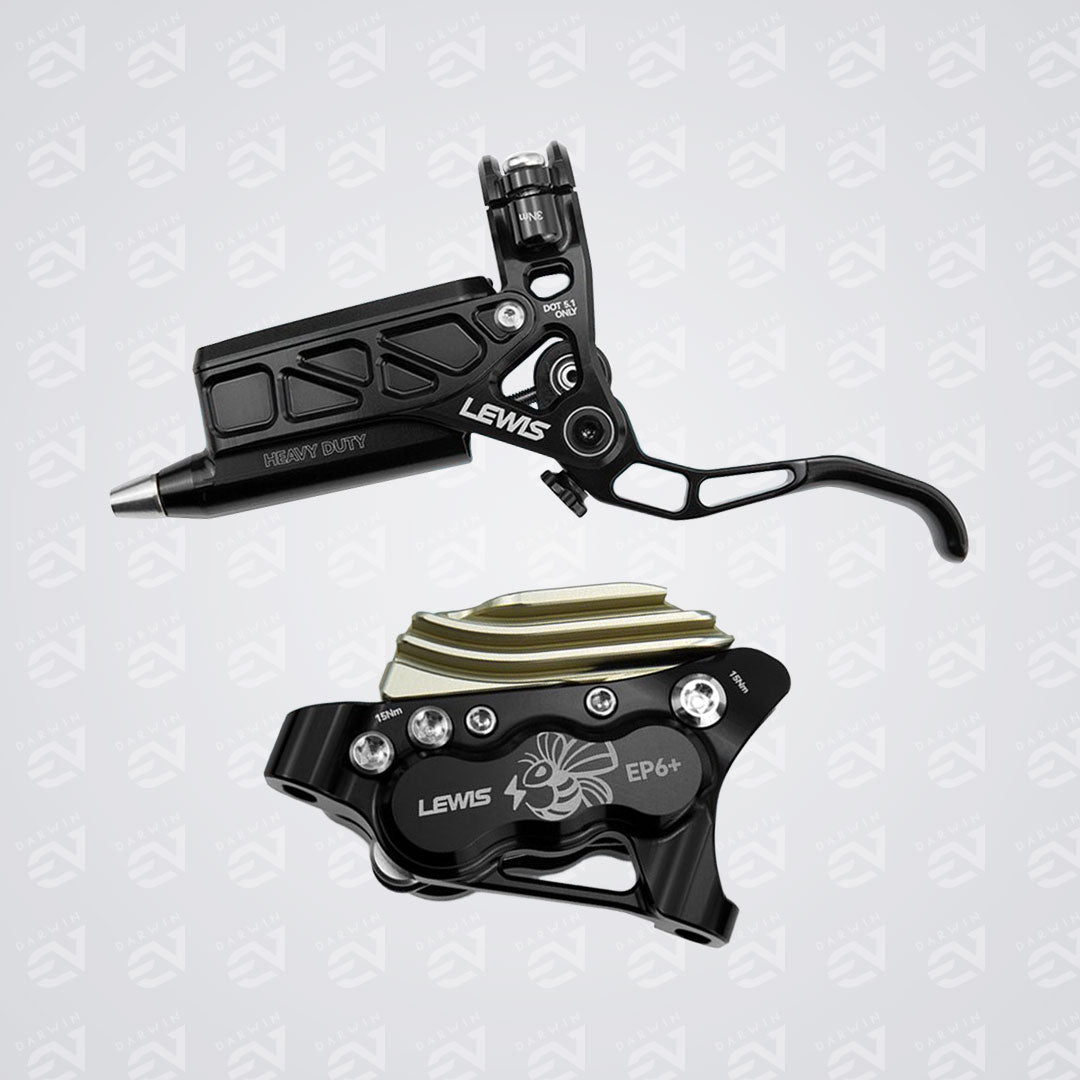

Lewis EP6+ Complete Brake System (Package)

Save 20% on Lewis Rotors when choosing the complete Lewis EP6+ Brake System.

Includes:

• Front Brake Lever + Caliper (43" hose length)
• Rear Brake Lever + Caliper (65" hose length)

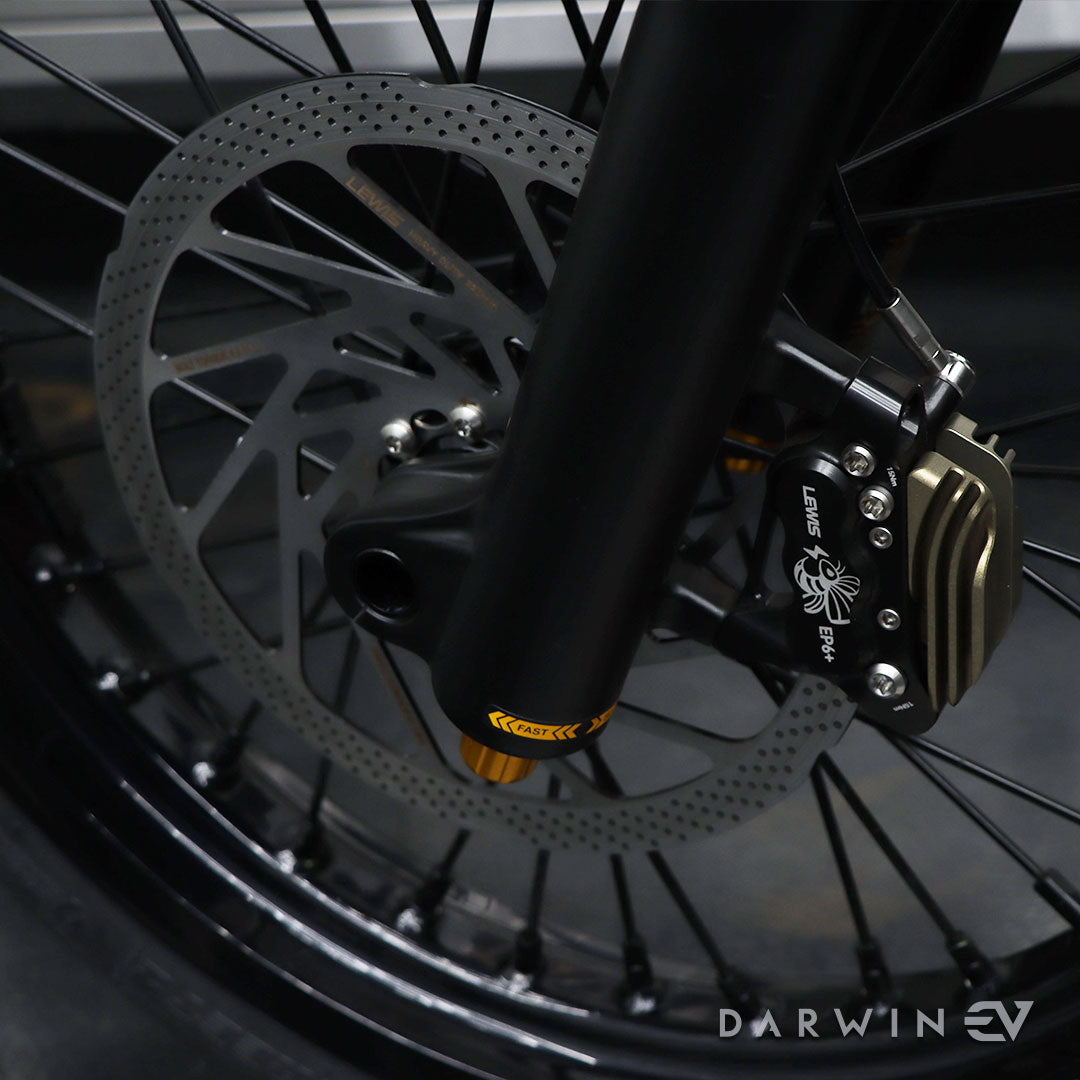

• Front Heavy-Duty Rotor: 220 x 2.3 mm

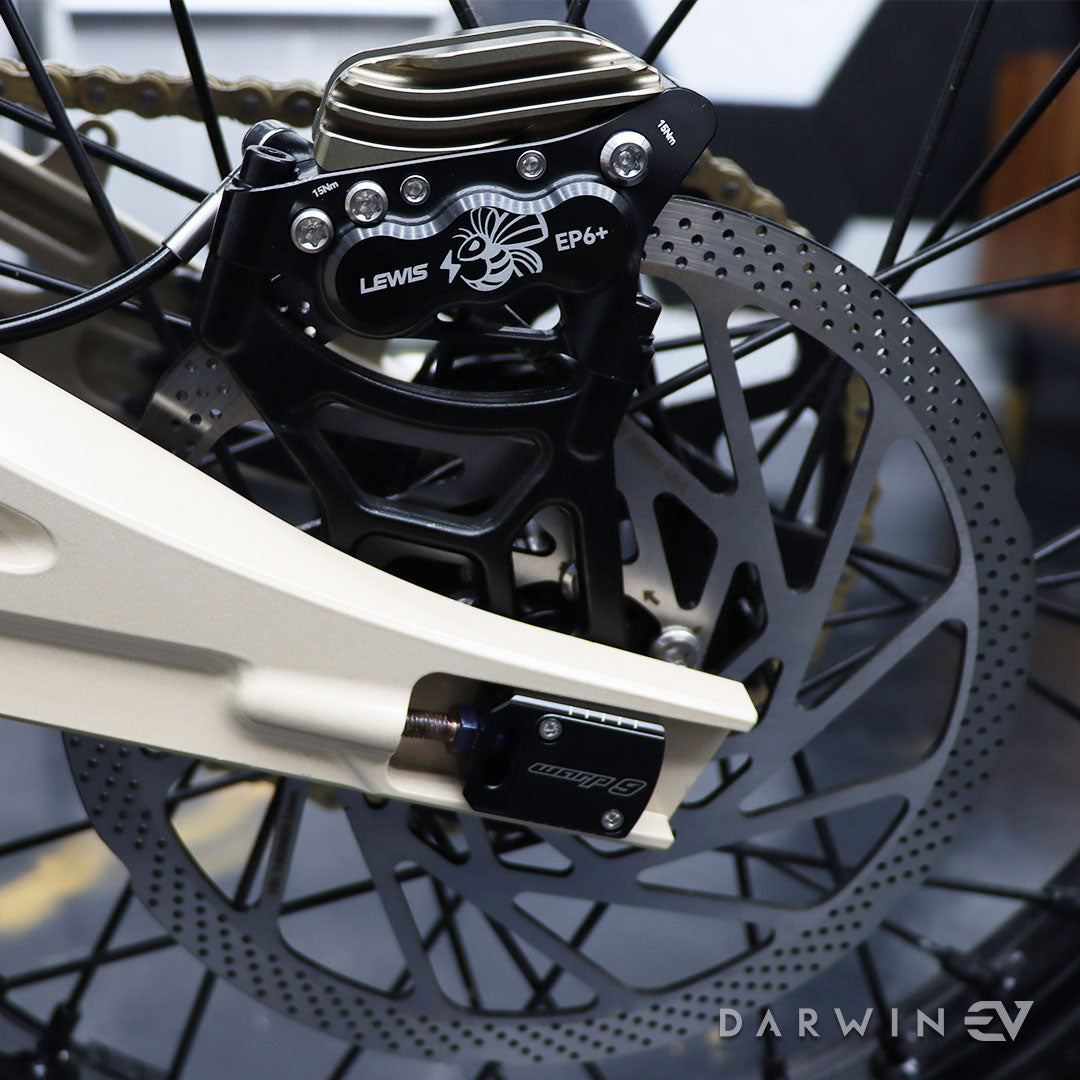

• Rear Heavy-Duty Rotor: 220 x 3 mm
• Front EP63 4.0 Brake Pads
• Rear EP63 3.5 Brake Pads

Note: Single brake options do not include rotors.

Lewis EP6+ Brake Features

• Axial Cylinder 6-Piston Hydraulic Disc Brake System
• Fits Surron Light Bee, Segway X160/X260, Talaria Sting MX3/MX4/MX5, E Ride Pro SS

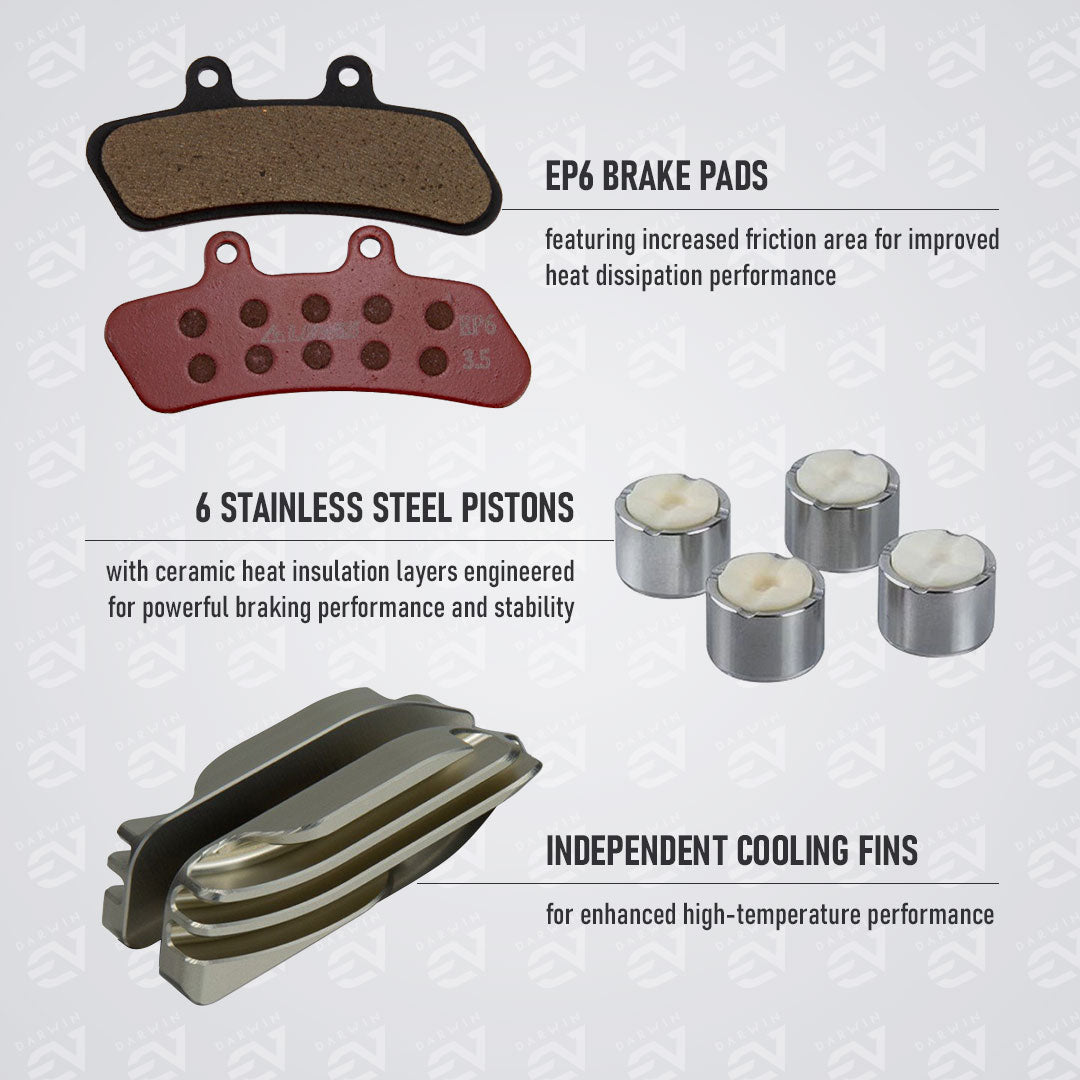

• 6 Stainless Steel Pistons with Ceramic Insulation engineered for powerful braking performance and stability
• 4 Precision Bearings per brake lever pivot for unrivaled stability and smoothness
• Independent Cooling Fins provide enhanced high-temperature performance
• EP63 Brake Pads feature increased friction area for improved heat dissipation
• Aerospace-Grade 7075 Aluminum Alloy for lightweight, high-strength reliability
• 3-Bolt Caliper Fixation ensures caliper stability under intense conditions
• Split Clamp Design ensures higher strength and easier installation
• Ultra-Large Oil Capacity for improved wear resistance and reduced maintenance frequency (DOT 5.1 brake fluid)

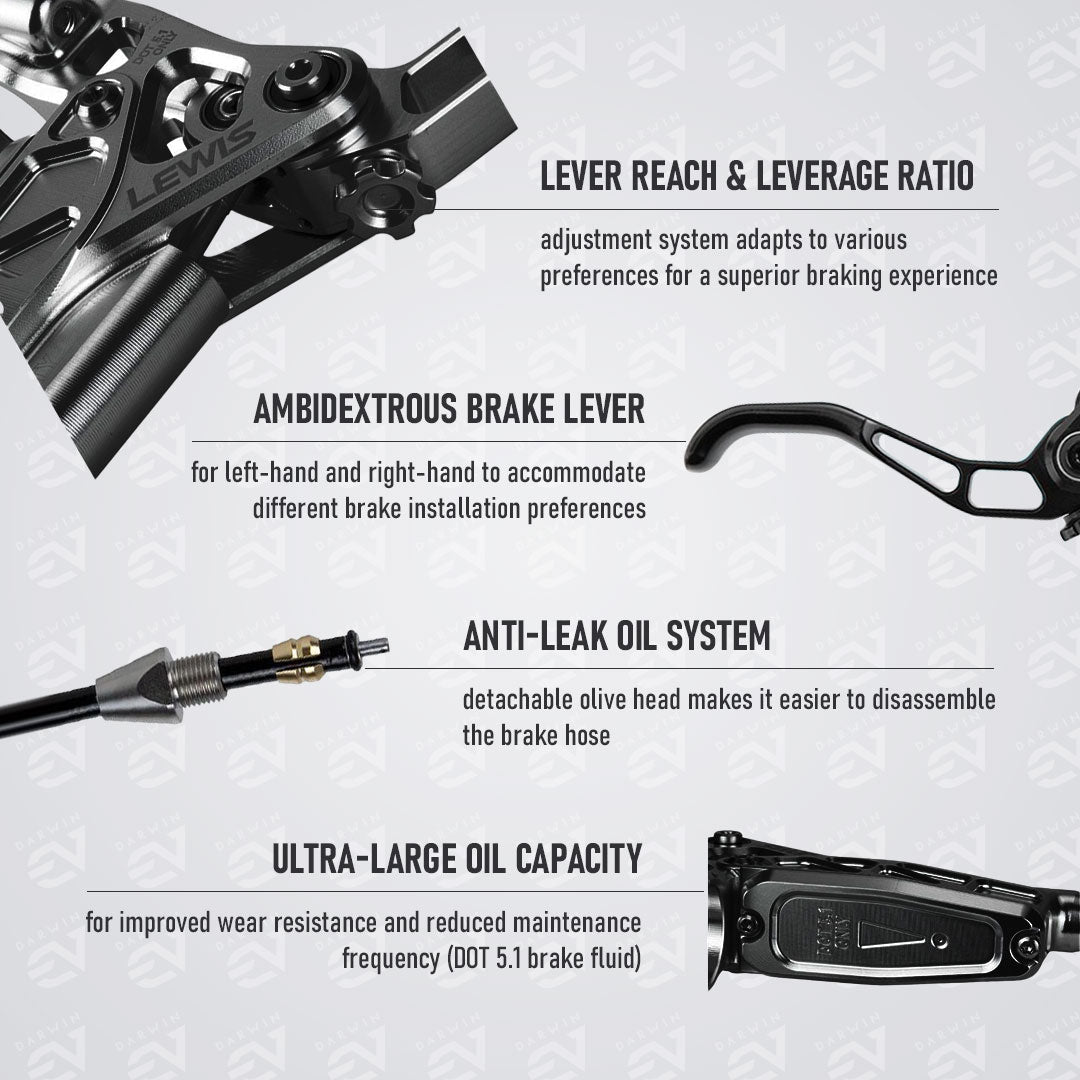

• Anti-Leak Oil System with detachable olive head makes it easier to disassemble the brake hose

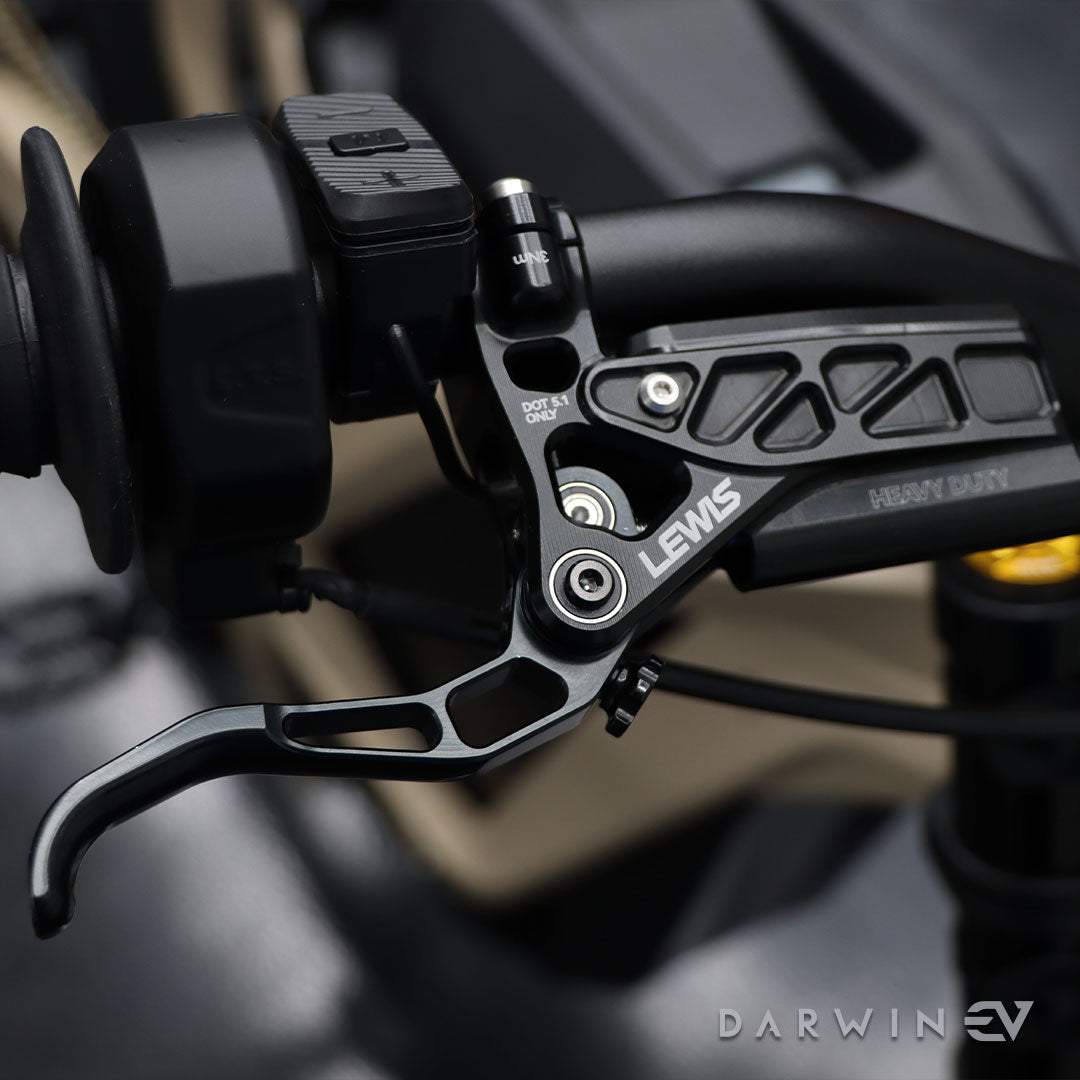

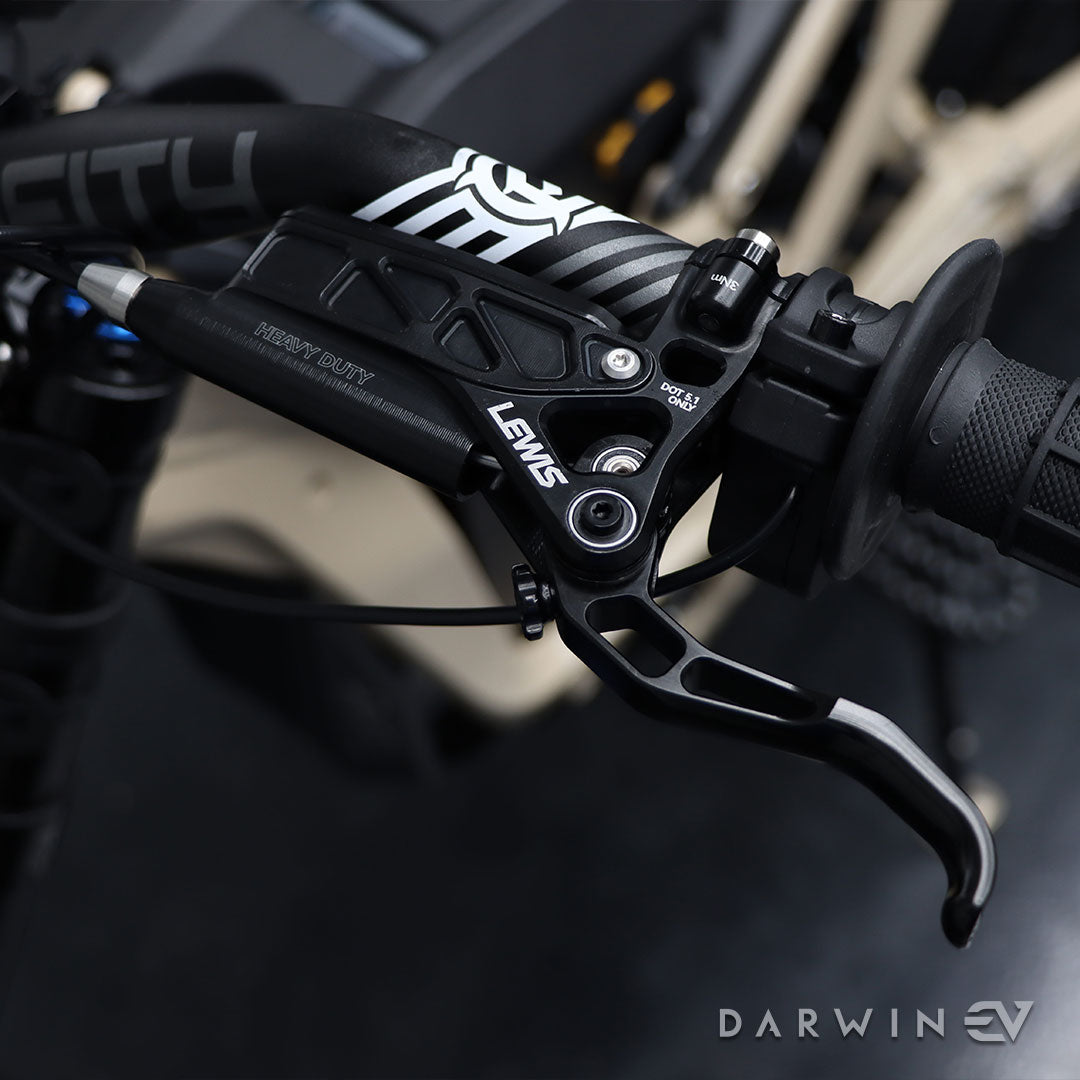

• Ambidextrous Brake Lever for left-hand and right-hand to accommodate different brake installation preferences
• Lever Reach Adjustment: customize lever reach with 2mm Allen key (included)
• Leverage Ratio Adjustment: loosen the fixed screw, then turn the lever ratio knob to fine-tune

Lewis EP6+ Brakes Specs
