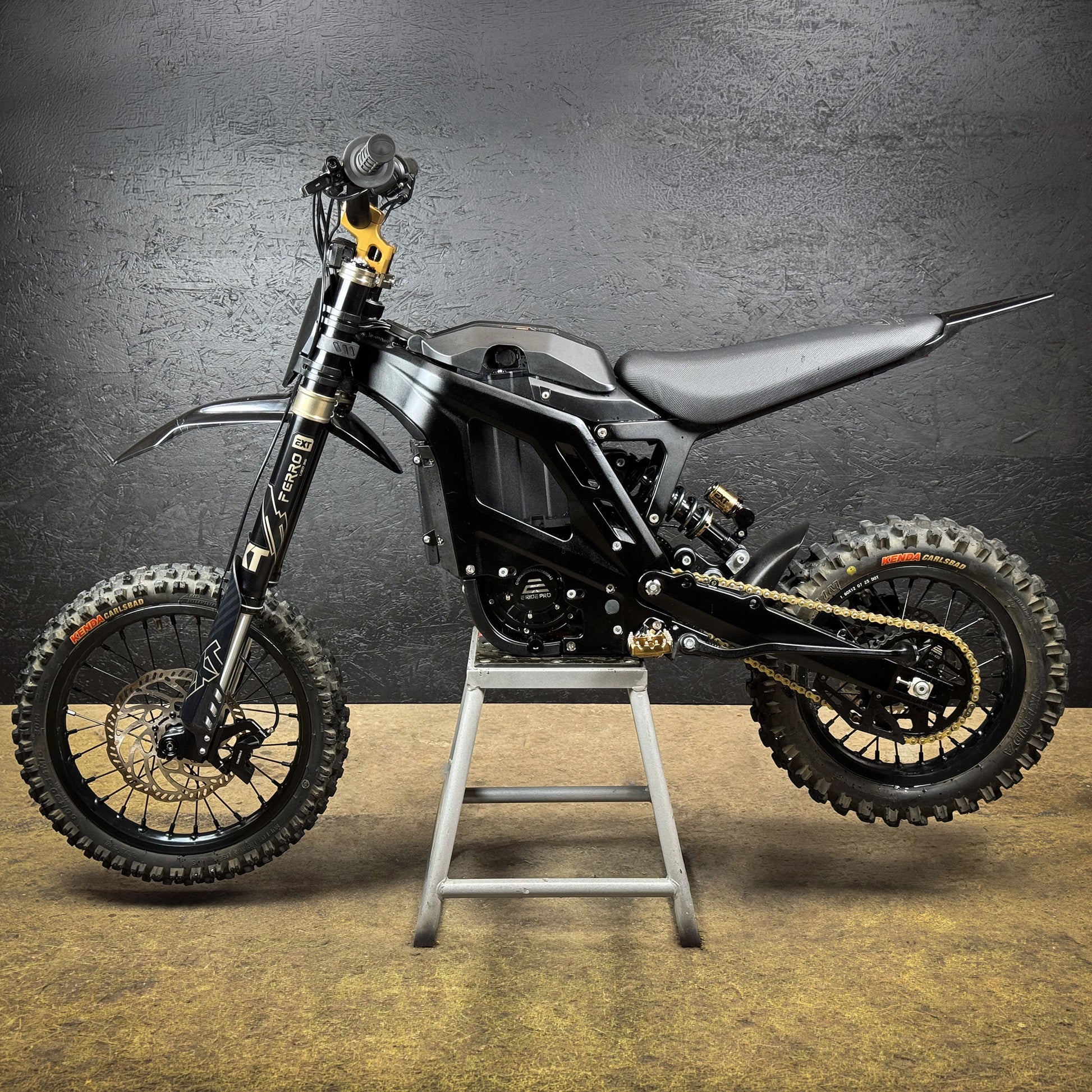

EXT Suspension Package: E Ride Pro Mini R
Upgrade your E Ride Pro Mini R with a complete EXT suspension setup featuring the Ferro Mini EMX Fork and Vecta Rear Shock Damper. This package is engineered specifically for the Mini R platform, providing improved damping control, chassis stability, sensitivity, and adjustability for riders looking to push the bike beyond the capabilities of the stock suspension.
The Ferro Mini EMX is a compact version of the EXT dual-crown inverted fork, optimized with 180mm of travel for the E Ride Pro Mini R. Paired with the Vecta rear shock damper and a rider-specific spring, the package provides a balanced front and rear suspension upgrade designed for the demands of lightweight electric dirt bikes.
NOTE: This suspension package requires modifications to the stock linkage. We will provide you with detailed instructions on how to do this.

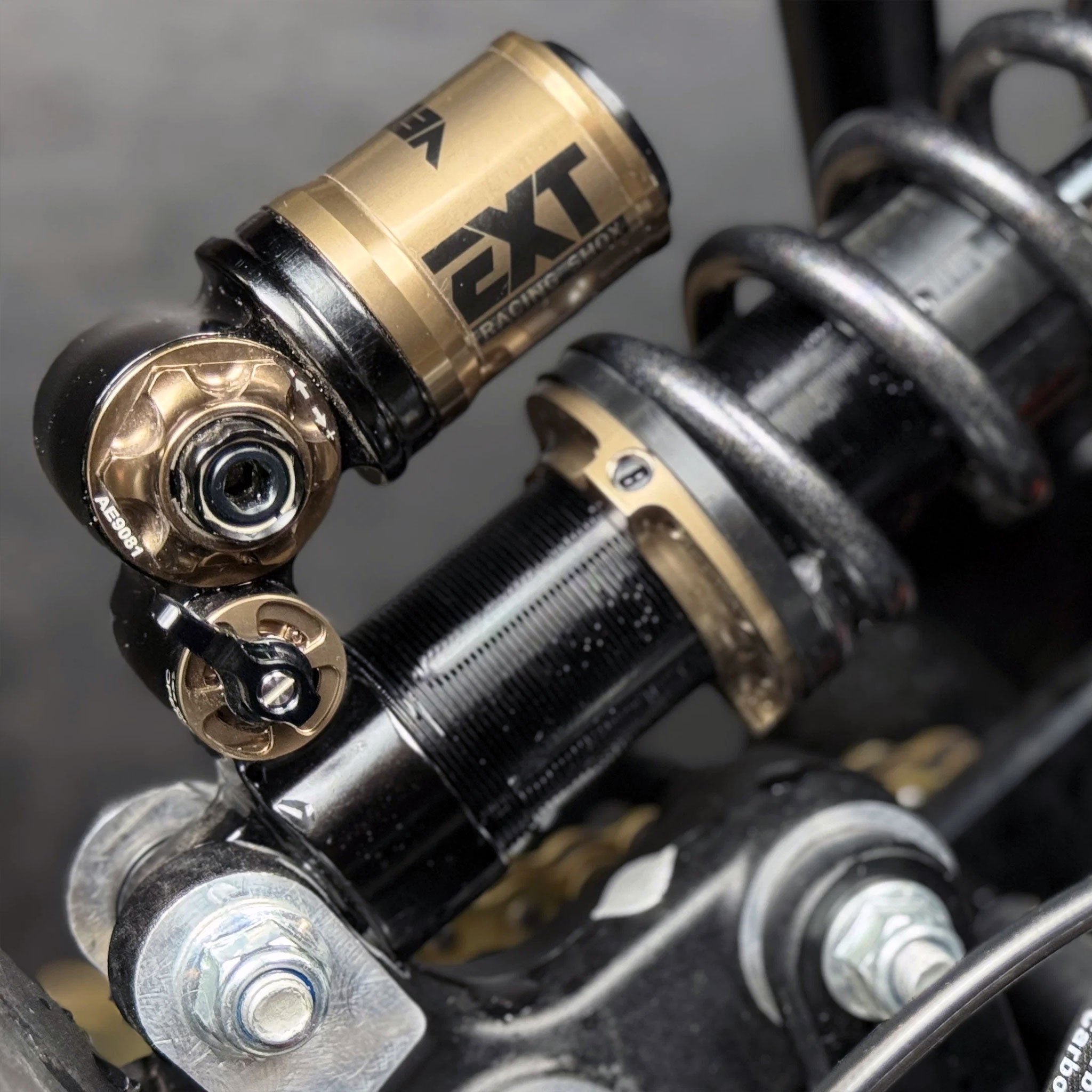

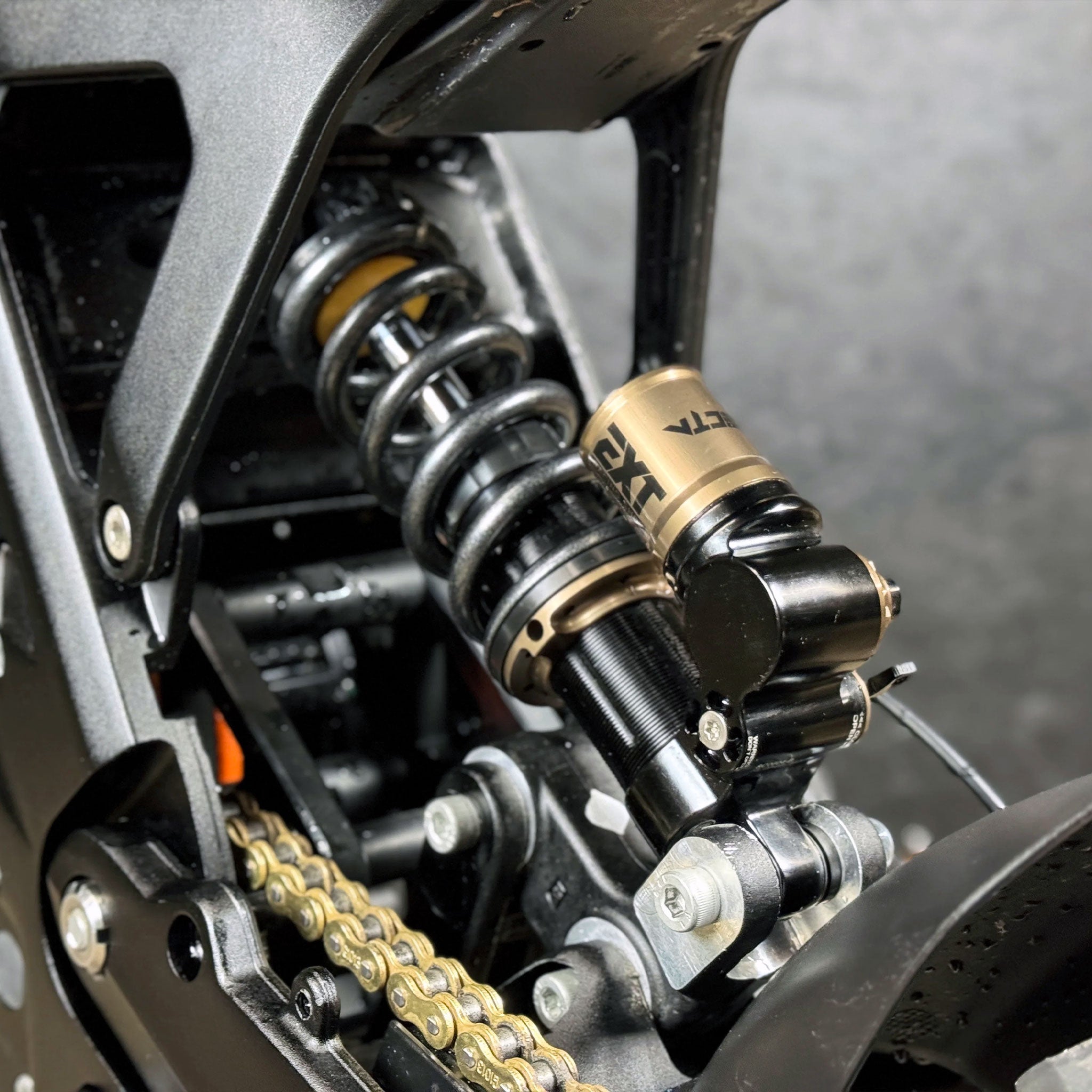

EXT Vecta Rear Shock
The EXT Vecta 230x65mm rear shock damper combines a high-flow hydraulic design with extensive adjustability and a bike- and rider-specific setup.
Vecta Shock Features
- 230x65mm rear shock damper
- Independent Low-Speed Compression (LSC), High-Speed Compression (HSC), and Low-Speed Rebound (LSR) adjustment
- 29mm high-flow main piston
- 24mm valve piston
- Oversized 14mm shaft, approximately 50% larger than many comparable coil shocks, designed to better handle high side-loading forces
- Engineered rebound circuit separates bump and rebound oil flow
- Ultra-low-friction coating
- User-adjustable Hydraulic Bottom-Out Control (HBC)
- Low 55 PSI reservoir pressure for increased sensitivity and reduced cavitation
- Custom hydraulic setup tailored to the bike and rider
- Low hysteresis for fast, controlled suspension response
- High-turbulence oil flow designed to provide progressive damping and increased mid-stroke support
- Low-friction sealing system
- Includes one lightweight spring, with rates available from 325 lb to 800 lb
- E Ride Pro Mini R-specific mounting hardware for straightforward installation

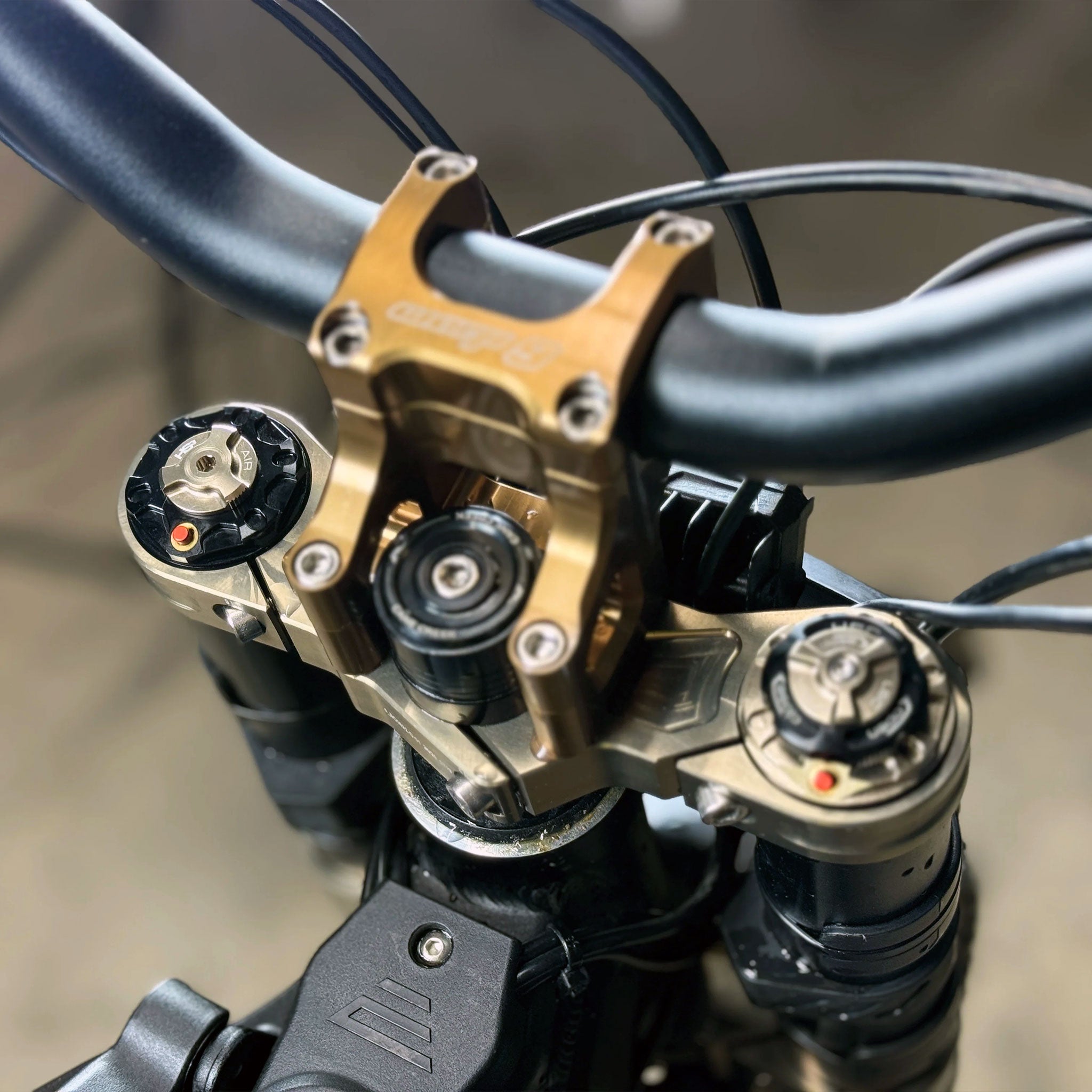

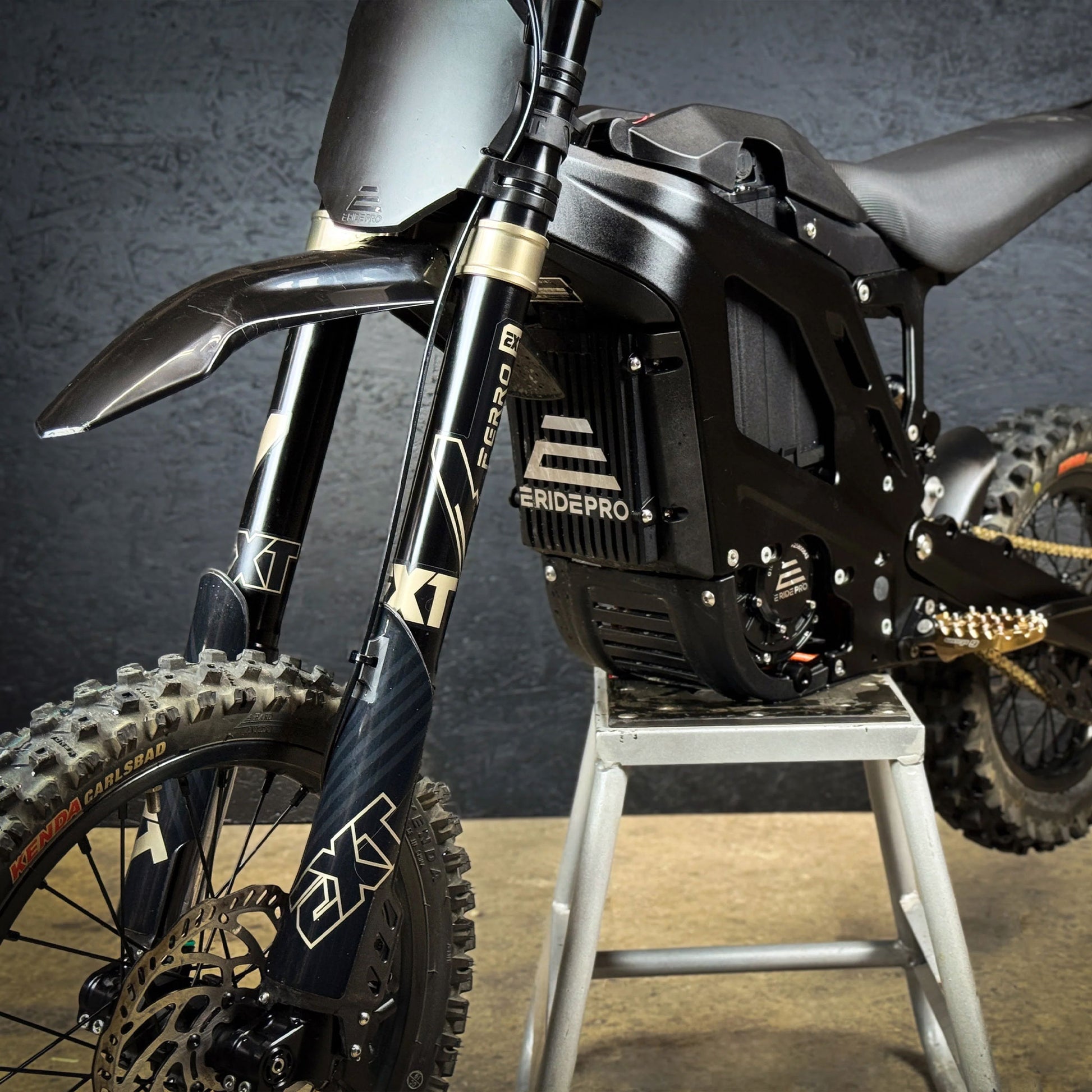

EXT Ferro Mini EMX Fork
The Ferro Mini EMX brings EXT's inverted motocross-inspired fork architecture to the E Ride Pro Mini R. Travel has been reduced to 180mm and optimized specifically for the Mini R, providing a suspension platform suited to the bike's smaller dimensions and lightweight chassis.
Ferro Mini EMX Features
- 180mm travel optimized for the E Ride Pro Mini R
- Dual-crown inverted MX-style design
- 36mm hard-chromed, heat-treated 42CrMo4 steel stanchions with Superfinish surface treatment
- HS3 triple-positive air system combined with a large self-balancing negative air chamber
- High-flow 3-way cartridge damper
- Independent High-Speed Compression, Low-Speed Compression, and Rebound adjustment
- Superfinish inner tube coating for reduced friction
- External air-pressure release valves on both fork legs
- Twin hexagonal floating 20mm axle
- Boost hub spacing
- Radial guidance system for the air spring and cartridge with low-friction aeronautical seals
- Large-piston damping system with separate IFP/coil-energized compression valve
- Designed for low hysteresis and resistance to cavitation
- Self-bleeding hydraulic cartridge
- CGB (Continuously Guided Bushing) system with extended bushing overlap for increased guidance and torsional rigidity
- 44mm offset
- 200mm post-mount brake interface
- Approximate weight: 4,000g
- Compatible with the stock E Ride Pro Mini R fender
- Boost hub spacing provides additional flexibility for aftermarket wheel setups
What's Included
- EXT Vecta Rear Shock – 230x65mm
- Selected Vecta Spring
- EXT Ferro Mini EMX Fork with Flat Crown
- Hub Adapter
Recommended Spring Rates
| Rider Weight (lb) | Plush | Firm |
|---|---|---|
| Up to 140 | 400 | 450 |
| 140–160 | 450 | 500 |
| 160–180 | 500 | 550 |
| 180–210 | 550 | 600 |
| 210+ | 600 | 650 |
Ferro Fork Recommended Starting Settings
| Rider Weight (lb) | Plush Main Chamber (+) | Plush Ramp Chamber (++) | Firm Main Chamber (+) | Firm Ramp Chamber (++) |
|---|---|---|---|---|
| 120 | 70 | 88 | 80 | 110 |
| 140 | 80 | 100 | 90 | 125 |
| 160 | 90 | 113 | 105 | 150 |
| 180 | 100 | 125 | 120 | 170 |
| 200 | 110 | 138 | 130 | 180 |
| 220 | 120 | 150 | 145 | 200 |
The EXT E Ride Pro Mini R Suspension Package provides a matched front and rear suspension solution for riders looking for greater control, adjustability, and suspension performance from the Mini R. With the Ferro Mini EMX fork up front and the Vecta rear shock damper, both ends of the bike can be tuned to rider weight, riding style, and terrain.
