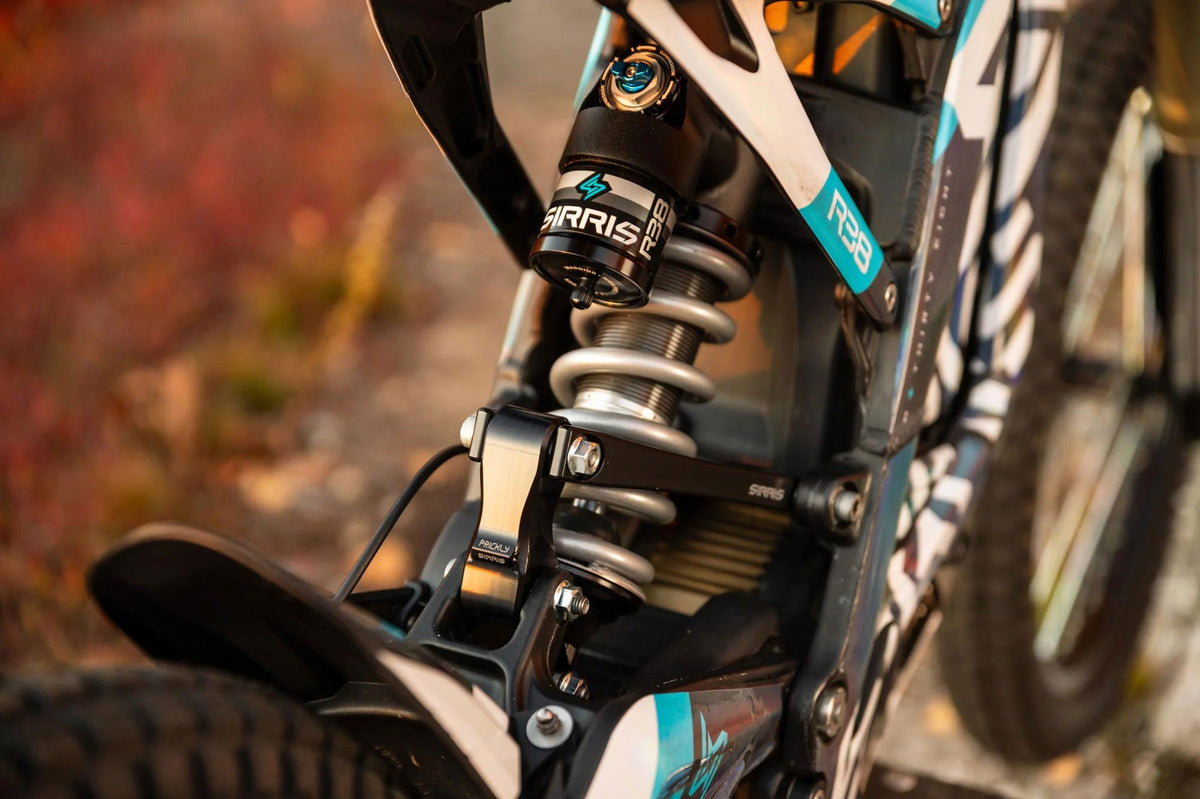

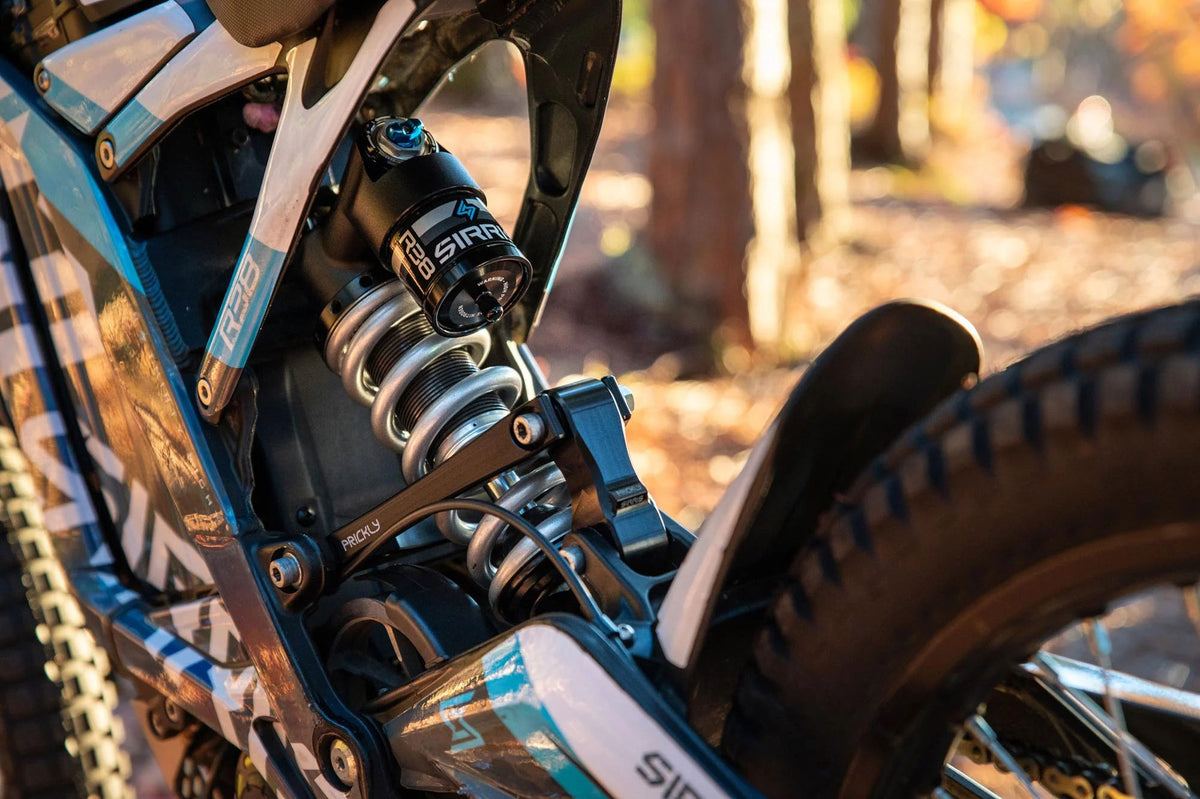

Sirris R38 Shock: Surron Light Bee X

The Sirris R38 Rear Shock upgrade brings true motocross-inspired suspension technology to the Surron Light Bee X (LBX). Based on the proven Sirris R46 platform, the R38 features oversized internal architecture, massive oil flow, and an advanced 2-Stage Compression (2SC) damping system for exceptional control, consistency, and durability on aggressive trails, jumps, and high-speed terrain.

Unlike typical mountain bike-based e-moto shocks, the R38 Shock is engineered specifically for the demands of lightweight electric dirt bikes. Independent high-speed and low-speed compression adjustment, rebound adjustment, and spring preload allow riders to fine-tune suspension performance for any riding style or terrain.

Features

• Designed specifically for the Surron Light Bee X (LBX)
• Moto-inspired R46 internal architecture in a compact chassis
• Independent high-speed and low-speed compression adjustment (2SC)
• Tool-free low-speed compression and rebound adjustment
• Adjustable spring preload for personalized suspension setup
• High-flow 38mm piston for consistent damping and reduced fade
• Large 16mm hollow hard-chromed shaft for maximum strength
• Type III hard anodized aluminum body with ACME threads
• CMX (Compact Motocross Tune) optimized for aggressive off-road riding
• Chrome-plated, Teflon-lined spherical bearings for durability
• Maintains factory rear ride height and wheel travel with the required Prickly linkage system

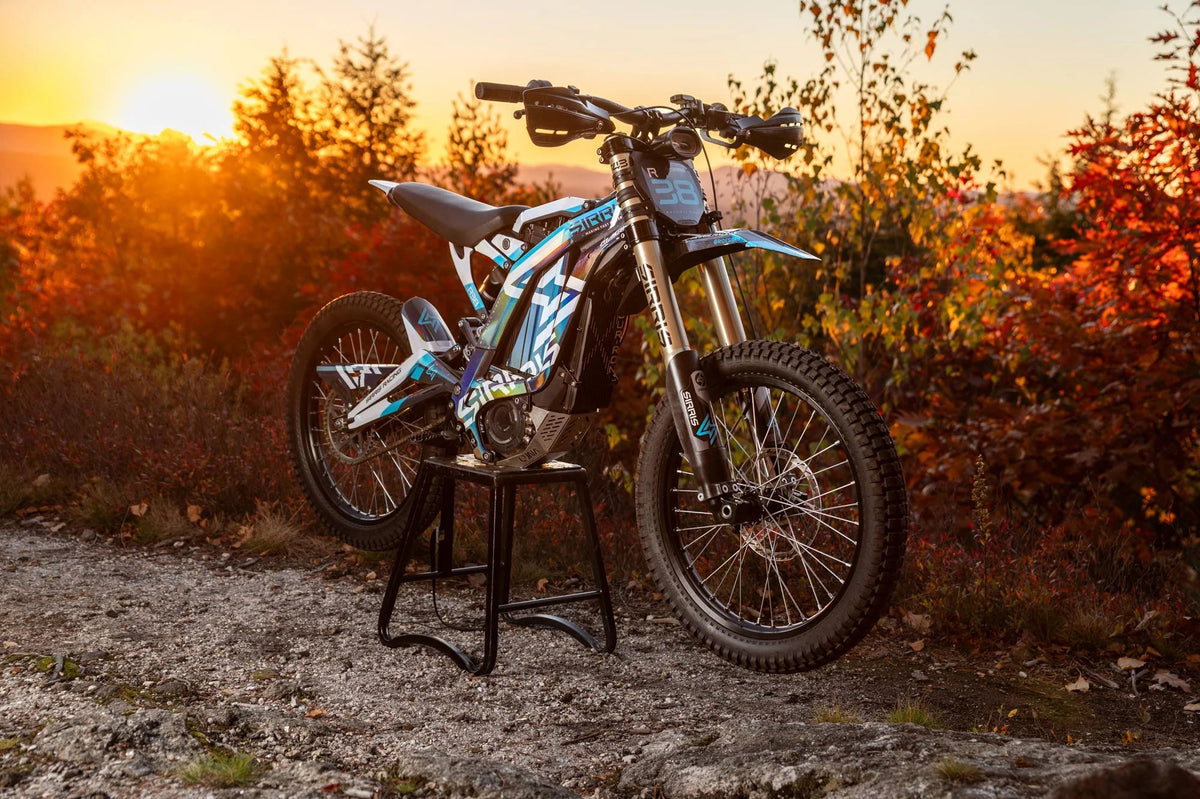

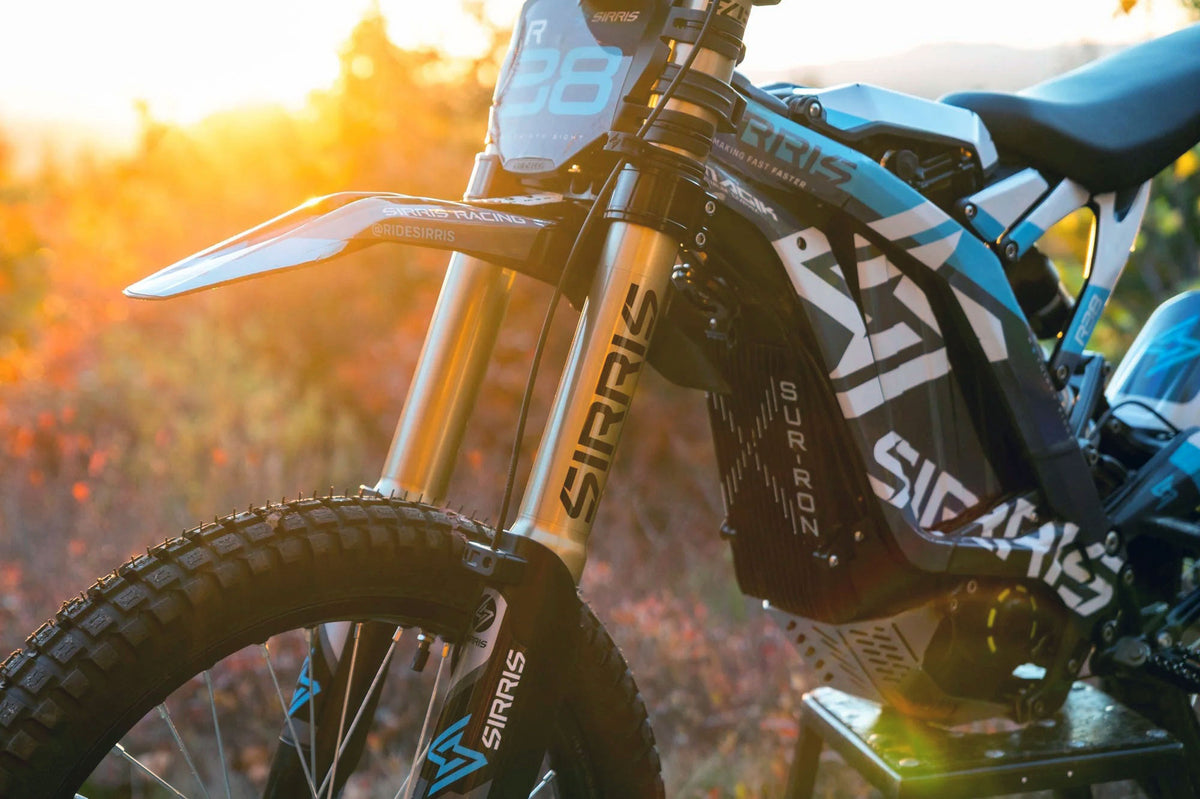

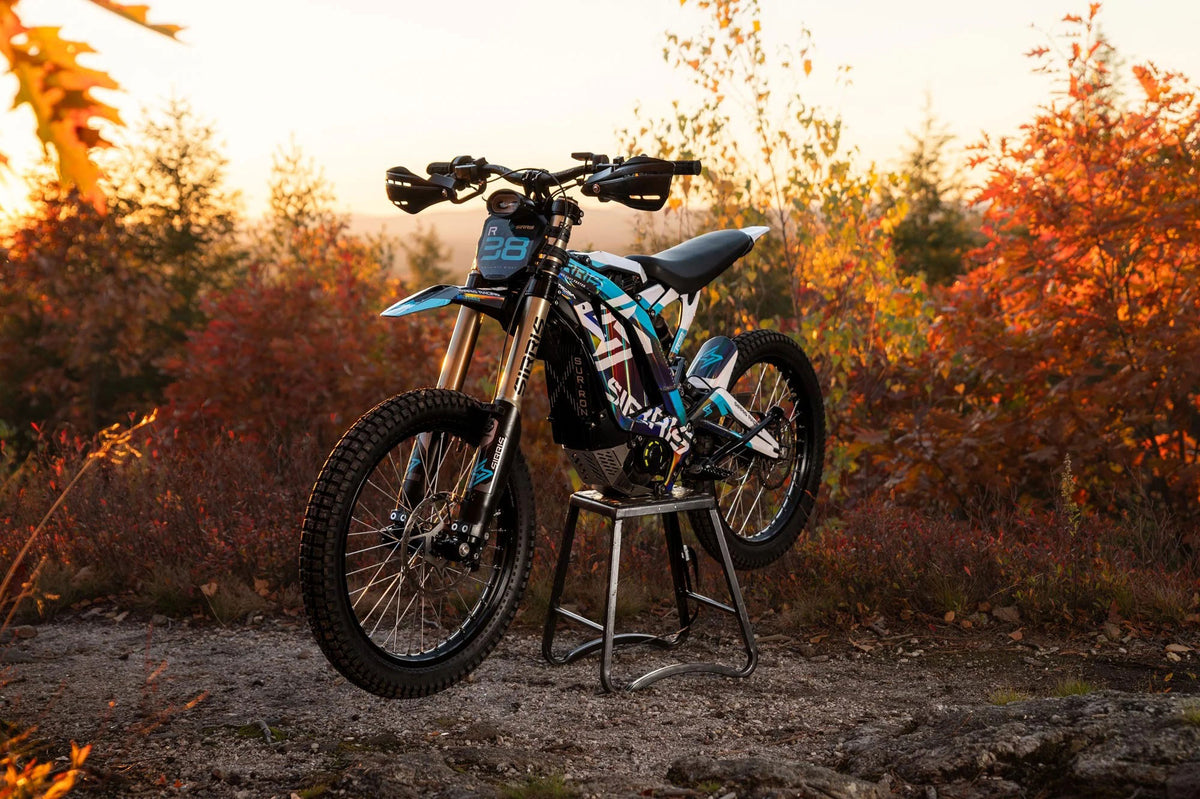

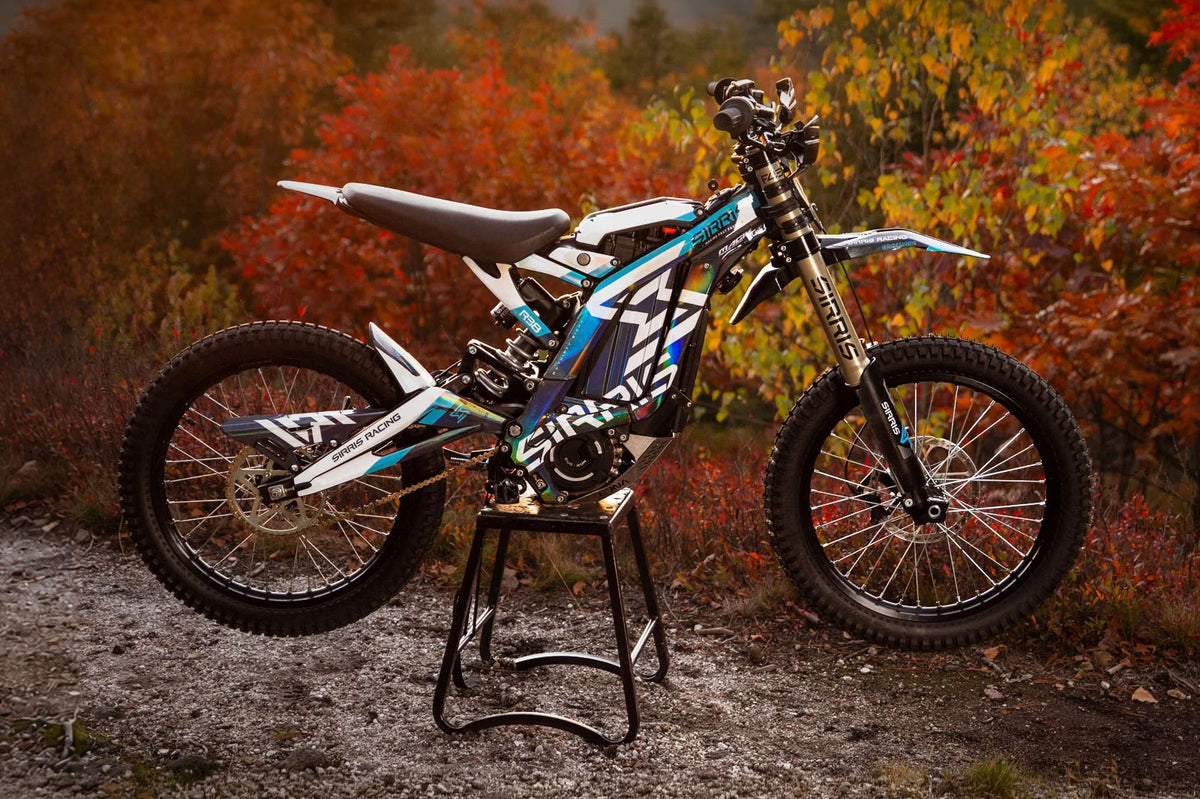

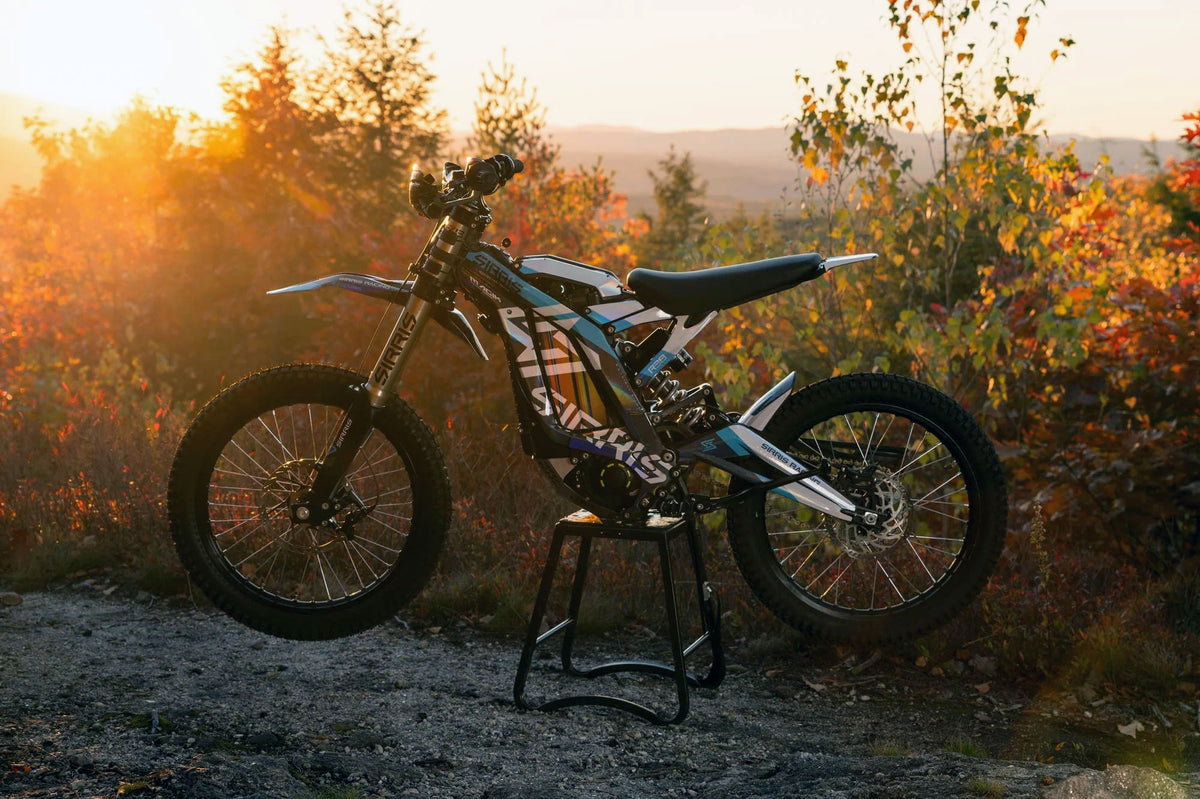

• Pairs perfectly with the Sirris F43 CMX Fork: Surron Light Bee X


Important: The original factory Surron Light Bee X linkage and rear triangle are not compatible with the Sirris R38 Shock. The R38 requires the Prickly Triangle & Linkage Kit for Sirris R38: Surron LBX (sold separately). This purpose-built kit accommodates the larger R38 shock while maintaining factory rear ride height and wheel travel. No frame modifications are required.

Specifications

• Length: 269mm
• Stroke: 68mm
• Shock Type: Piggyback, steel spring
• Weight: 3.3 lbs (1.5 kg) without spring
• Low-Speed Compression: 18 clicks, tool-free adjustment
• High-Speed Compression: 24 clicks, 20mm hex adjustment
• Rebound: 24 clicks, tool-free adjustment
• Spring Preload: Adjustable
• Main Piston: 38mm high-flow CNC 6061 billet aluminum
• Shaft: 16mm hollow, induction-hardened, hard-chromed steel
• Shock Body: Seamless 6061 aluminum, Type III hard anodized
• Reservoir: R46-spec internal floating piston system
• Bottom-Out Protection: MCU bumper
• Top-Out Protection: Rubber bumper
• Seals: HNBR
• Tune: CMX (Compact Motocross)

Spring Options

• Medium: 140 lbs - 180 lbs (100 N/mm spring)
• Heavy: 180 lbs - 220 lbs (110 N/mm spring)

Rider weight ranges are based on body weight without riding gear. Sirris accounts for approximately 15 lbs of riding gear in its recommended ranges. Additional weight from upgraded batteries, controllers, and other components should be considered when selecting a spring rate.

Compatibility

• Surron Light Bee X (LBX)

Important Notes:

• Requires the Prickly Triangle & Linkage Kit for Sirris R38: Surron LBX (sold separately).
• Stock Surron LBX linkage and rear triangle are not compatible with the R38 Shock.
• Installation is a direct bolt-on solution without drilling, fabrication, or frame modifications.
• The Prickly linkage system compensates for the R38's shorter shock stroke, maintaining factory rear wheel travel and ride height.
• Designed to pair with the Sirris F43 CMX Fork for balanced front and rear suspension performance.
• Fitment for the newer Surron Light Bee 2 (LB2) is under development and is not confirmed.

R38 Shock Tuning Recommendations For Surron LBX

The following table provides spring specifications and adjustment information for the Sirris R38 Shock on the Surron Light Bee X.

R38 Shock	Medium	Heavy
Rider Weight (lbs, No Gear)	140-180	180-220
Compression Setting	L-Speed 10 / H-Speed 12	L-Speed 10 / H-Speed 12
Rebound Setting	10	8
Spring Rate (N/mm)	100	110
Preload Setting	3	3

R38 values above indicate available adjustment ranges, not recommended starting click positions. Refer to the Sirris Surron LBX owner's guide for model-specific initial compression, rebound, and preload settings.

Suspension Installation & Setup: Refer to the Surron Light Bee X F43/R38 owner's guide for installation procedures, recommended damping settings, spring preload, and torque specifications.
