Ohlins Shock Absorber TTX22M With EXT 450/500/550 Spring
Out of stock
- Lead Time: Ships in 5 Days
Ohlins TTX22M Shock Absorber with EXT 450/500/550 Spring for Sur-Ron, Segway, Talaria, and E Ride Pro electric motorbikes. The Ohlins TTX22M shock with EXT coil spring is a premium, aftermarket rear suspension upgrade for enhanced performance.
Plug-And-Play, Tuned for E-Moto - This product is sold as a package and includes the following:
- Ohlins TTX22M Shock Absorber
- EXT Spring (graphite gray)
- E-Moto mounting hardware
- Bushings (16mm to 15mm)
- 15mm Bushing Kit
Ohlins TTX22M Shock With EXT Coil Spring Features
- Shock Length: 10.5"
- Shock Stroke: 3.5"

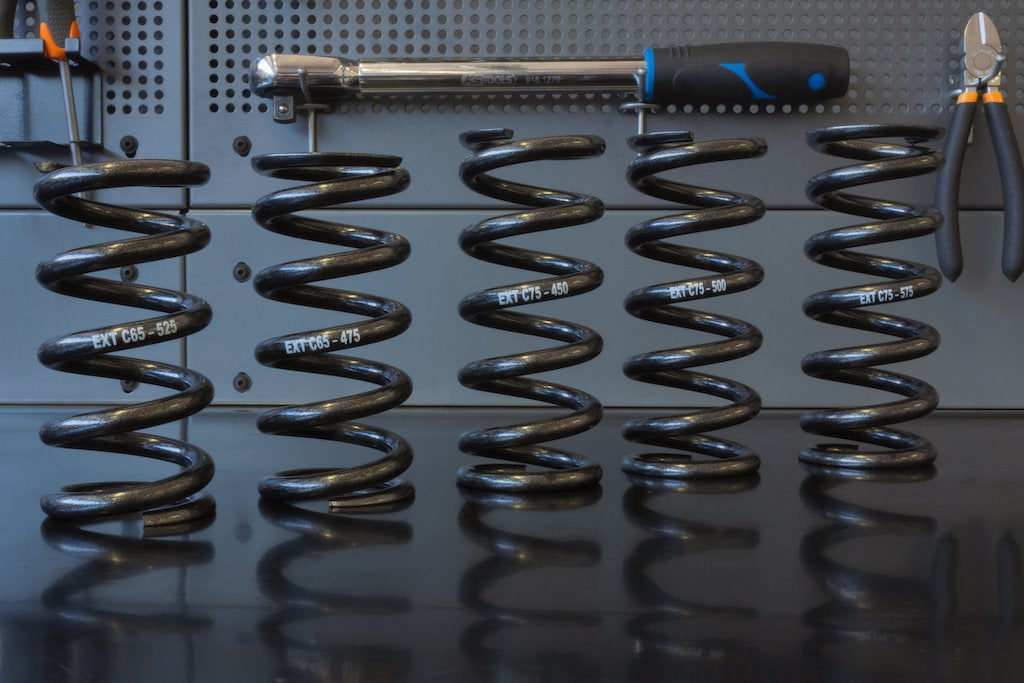

- EXT Coil Spring Size Options: 450/500/550
- EXT Coil Spring Color: Graphite Gray
- TTX Damping Technology by Öhlins
- Nitrogen pressurized bladder reservoir system
- Easy setup for various riding conditions
- 3-click high-speed compression adjustment (external)
- 16-click low-speed compression adjustment (external)
- 7-click low-speed rebound damping adjustment (external)
- Fits Sur-Ron Light Bee, Segway X160/X260, Talaria Sting MX3/MX4/MX5, Talaria X3 (XXX), E Ride Pro-SS
TTX22M Technology By Ohlins
Ohlins TTX22M twin tube design enables gas pressure to backup the low-pressure side of the piston in order to maintain controlled pressure levels. This ensures consistent damping performance on all types of terrain. It also improves the damping response for excellent control of the bike and tire movement. The low-speed and high-speed compression, in addition to rebound damping, is externally adjustable.
