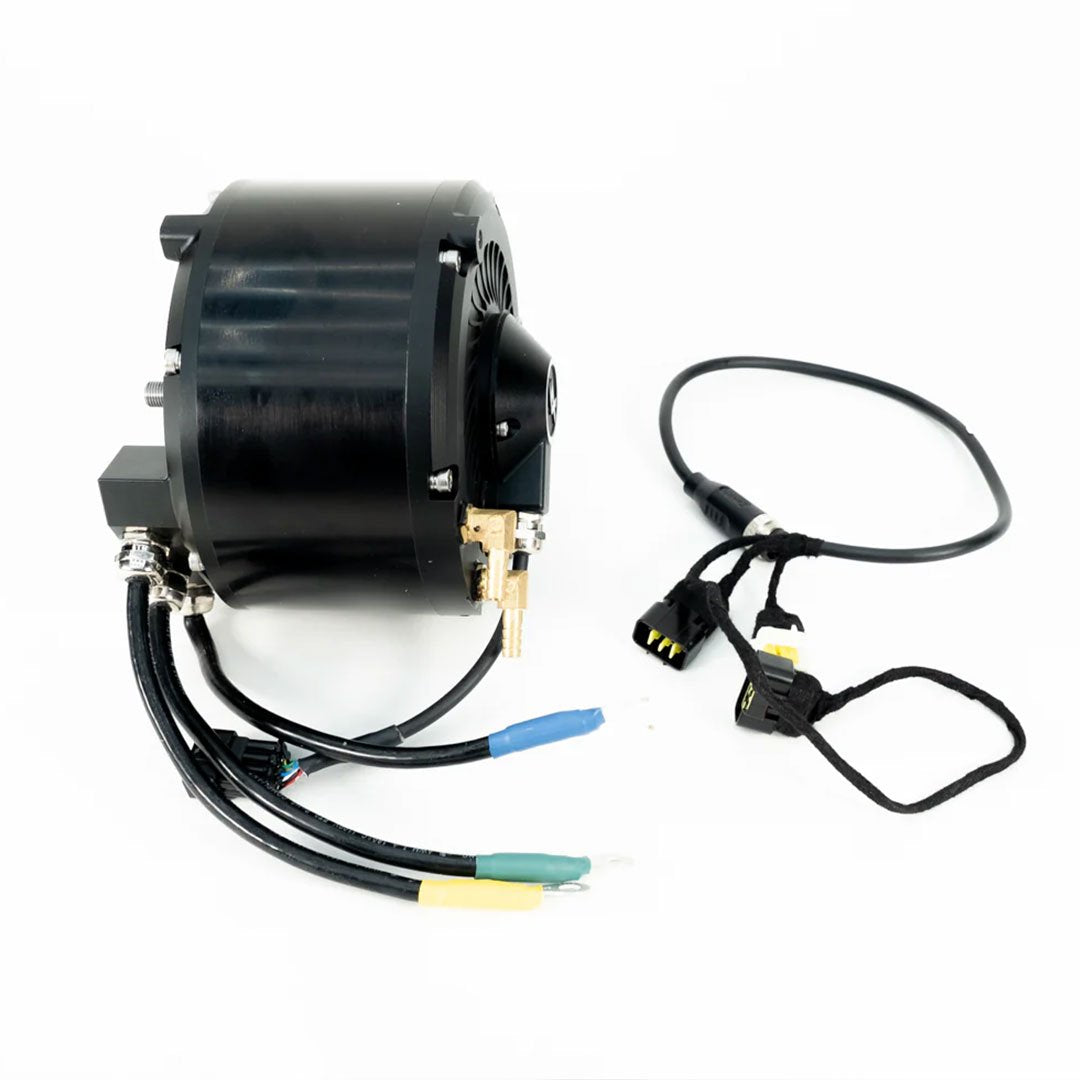

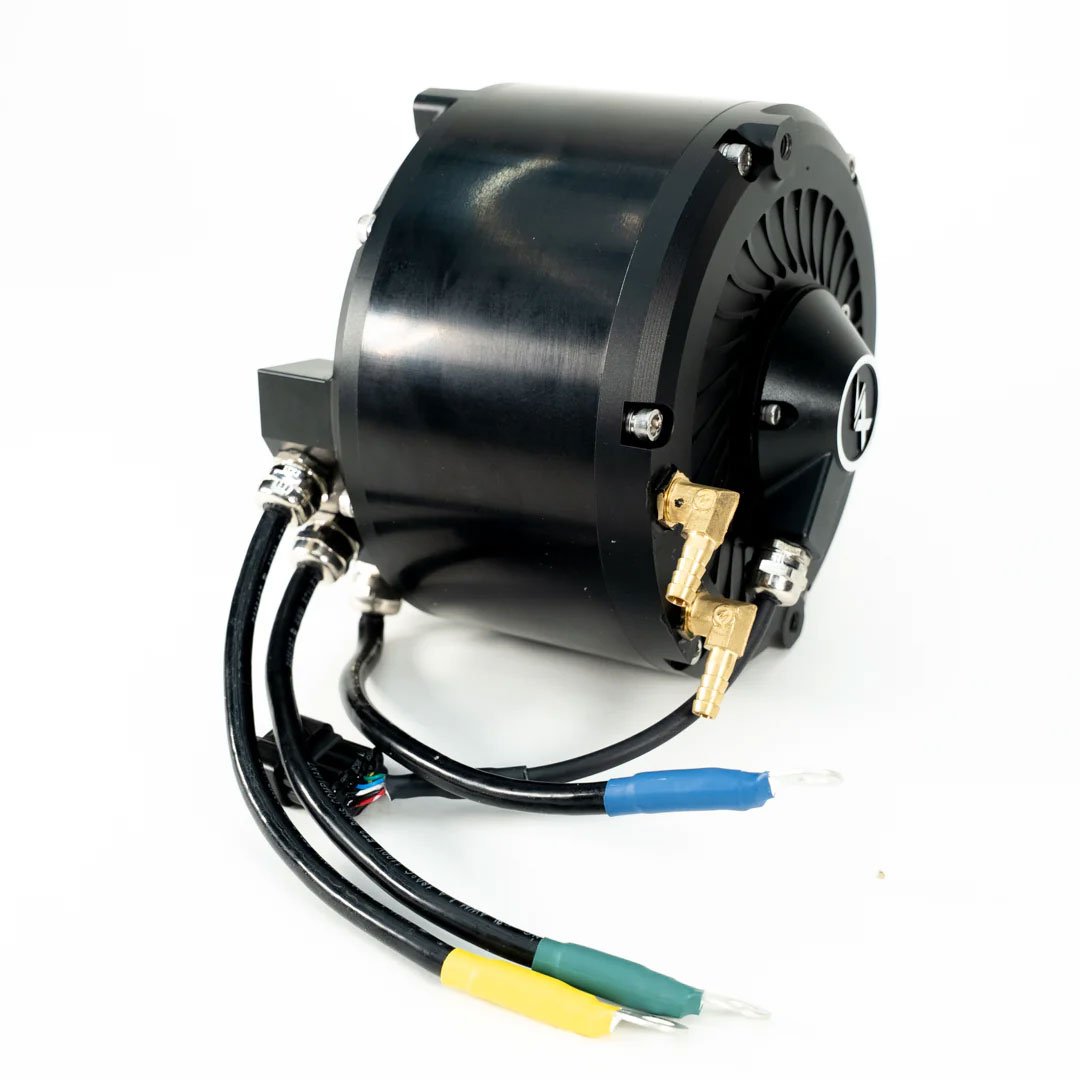

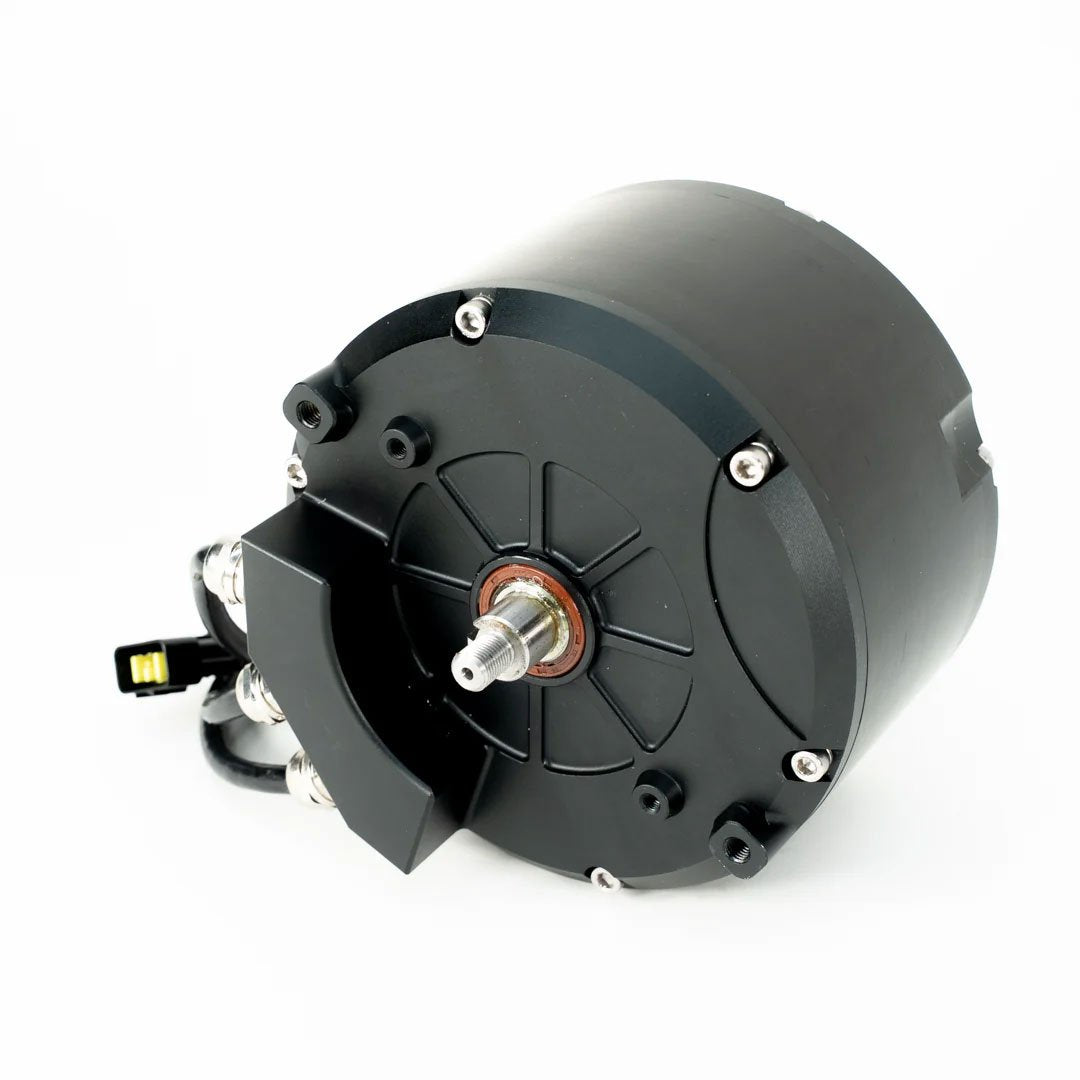

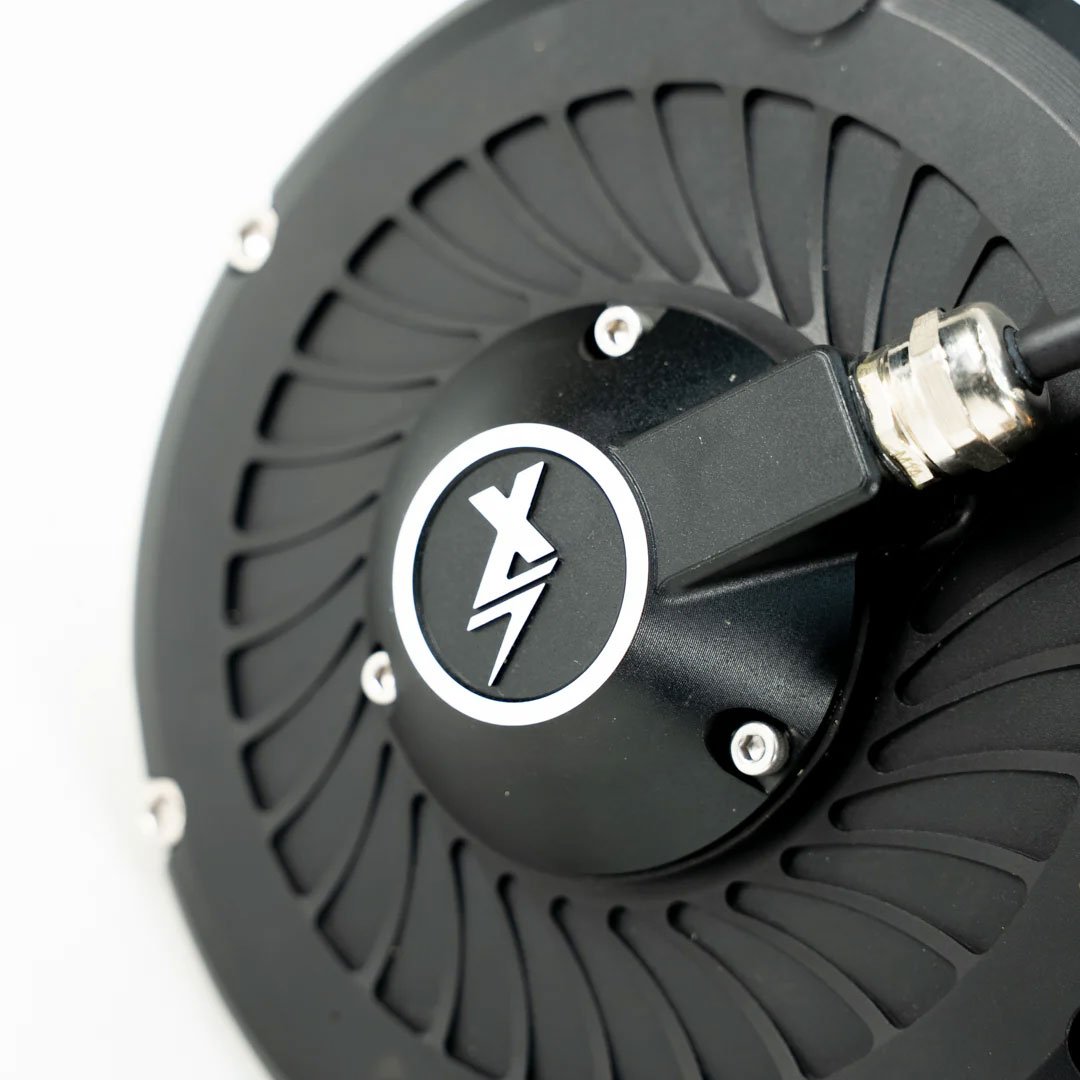

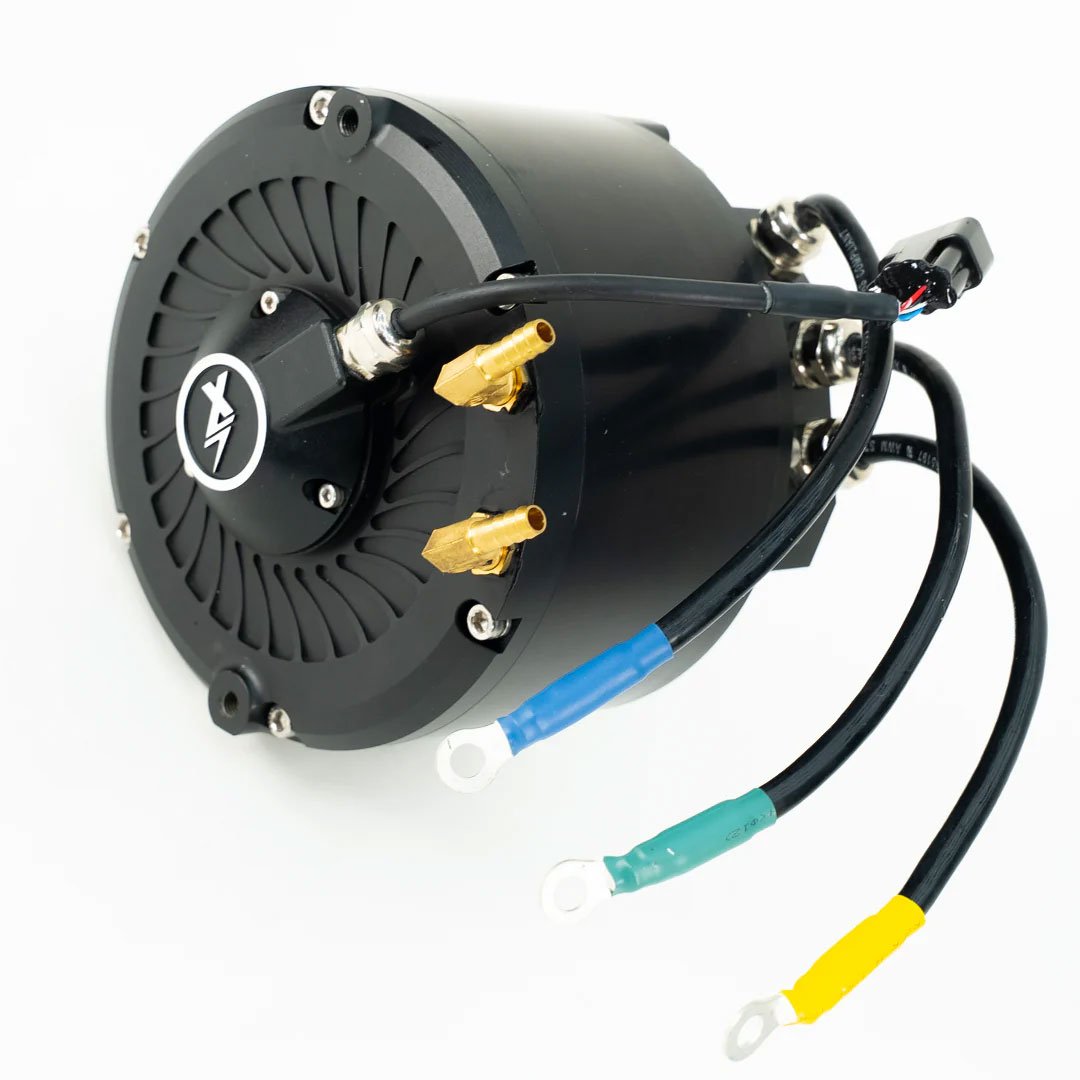

EBMX XLB-60 Liquid Cooled Motor: SurRon LBX, E Ride Pro, Talaria X3
Regular price
$1,235.00
Sale price
$1,235.00
Regular price
Shipping calculated at checkout.
For the most demanding needs and heat dissipation, the limited-edition EBMX XLB-60 Liquid Cooled Motor for Sur-Ron Light Bee, E Ride Pro, and Talaria X3 is the solution when air cooling isn't enough. Whether you're on the track, street, or local trail, this motor delivers top-tier performance under intense conditions.
*Compatible with EBMX X-9000 Controller V2/V3 and other performance controllers that support the Encoder position sensor only.
XLB-60 Liquid Cooled Motor Features
- 26kW Rated Power (35kW Peak): Designed to handle extreme heat, featuring 180°C rated windings and U42H magnets.
- Superior Rotor Design: Custom IPM rotor with an industry-leading 1mm rotor air gap, achieving a rated 13,000 RPM.
- Enhanced Control: Encoder-based motor control ensures increased low-end torque response and smooth, predictable power delivery.

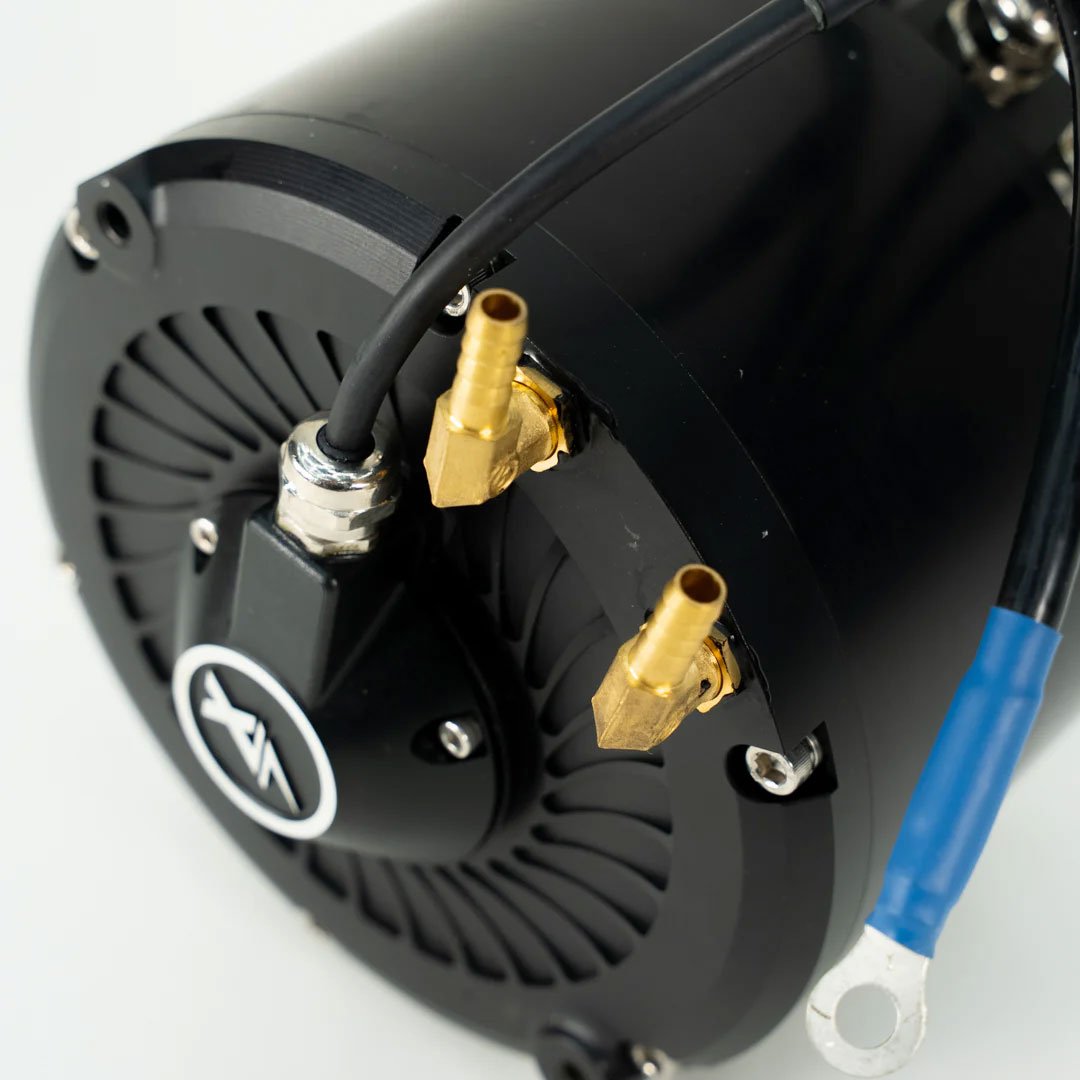

- Race-Ready Cooling: Built to stay cool under intense race conditions, allowing you to focus on your riding.
E-Moto Compatibility:
- Sur-Ron Light Bee X / S
- E Ride Pro SS 2.0 / S
- Talaria X3
- wiring harness + mount kits available for Sur-Ron Light Bee, E Ride Pro, and Talaria X3
Controller Compatibility:
EBMX XLB-60 Liquid Cooled Motors are designed to work perfectly with the EBMX X-9000 Controller. While compatible with many other aftermarket controllers, custom tuning may be required for optimal performance.
- custom built and finely tuned to work with EBMX X-9000 Controller
- NOT compatible with stock OEM controllers
- works with aftermarket controllers that support the Encoder position sensor only
- check with your controller manufacturer to ensure compatibility
XLB-60 Liquid Cooled Motor Specs(Sur-Ron LBX) |
|
PEAK POWER | 35kW |
VOLTAGE RANGE | 48v – 104v |
MAX TORQUE | 52Nm |
MAX STABLE ROTOR RPM | 13000 RPM |
MAX EFFICIENCY | 93% |
MOTOR CONFIGURATION | 10 poles and 12 slots |
WINDING TYPE | Dual Y parallel connection |
STATOR AND ROTOR STACK THICKNESS | 60mm |
SENSING METHOD | NJDC 605 Encoder |
KV Value | 95KV |
Rated Power | 26kW (Continuous 4:30) |
Max Phase current | 900A |
Rated Phase current (Continuous run) | 500A (35Nm) |
Motor Temperature | 180 deg C windings 140 deg C start limiting 160 deg C power cut |
Waterproofing | IP67 |
Anti-corrosion | Yes |
Weight | 12.5kg |
Size | 187mm x 118mm |
Warranty | 2 Year |
