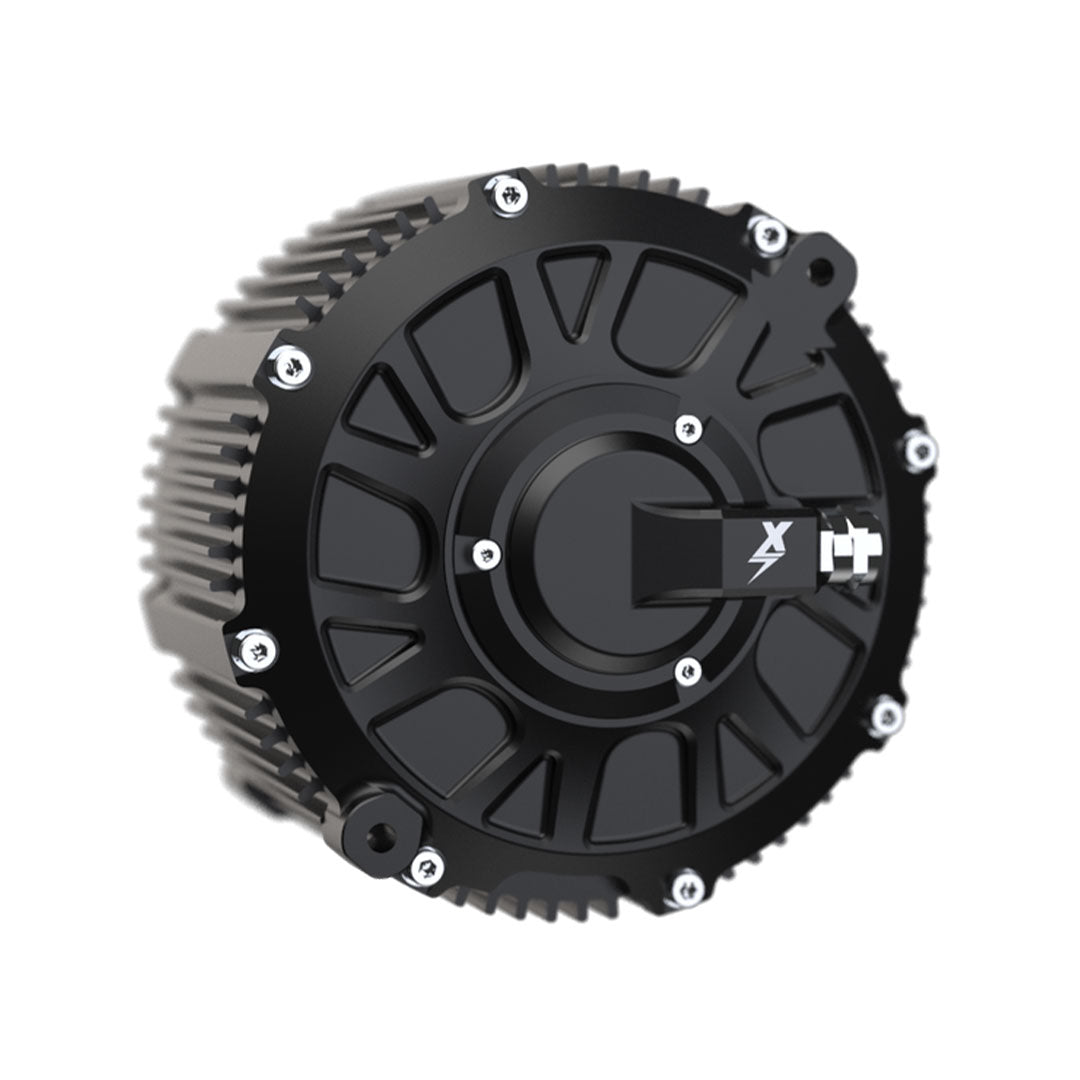

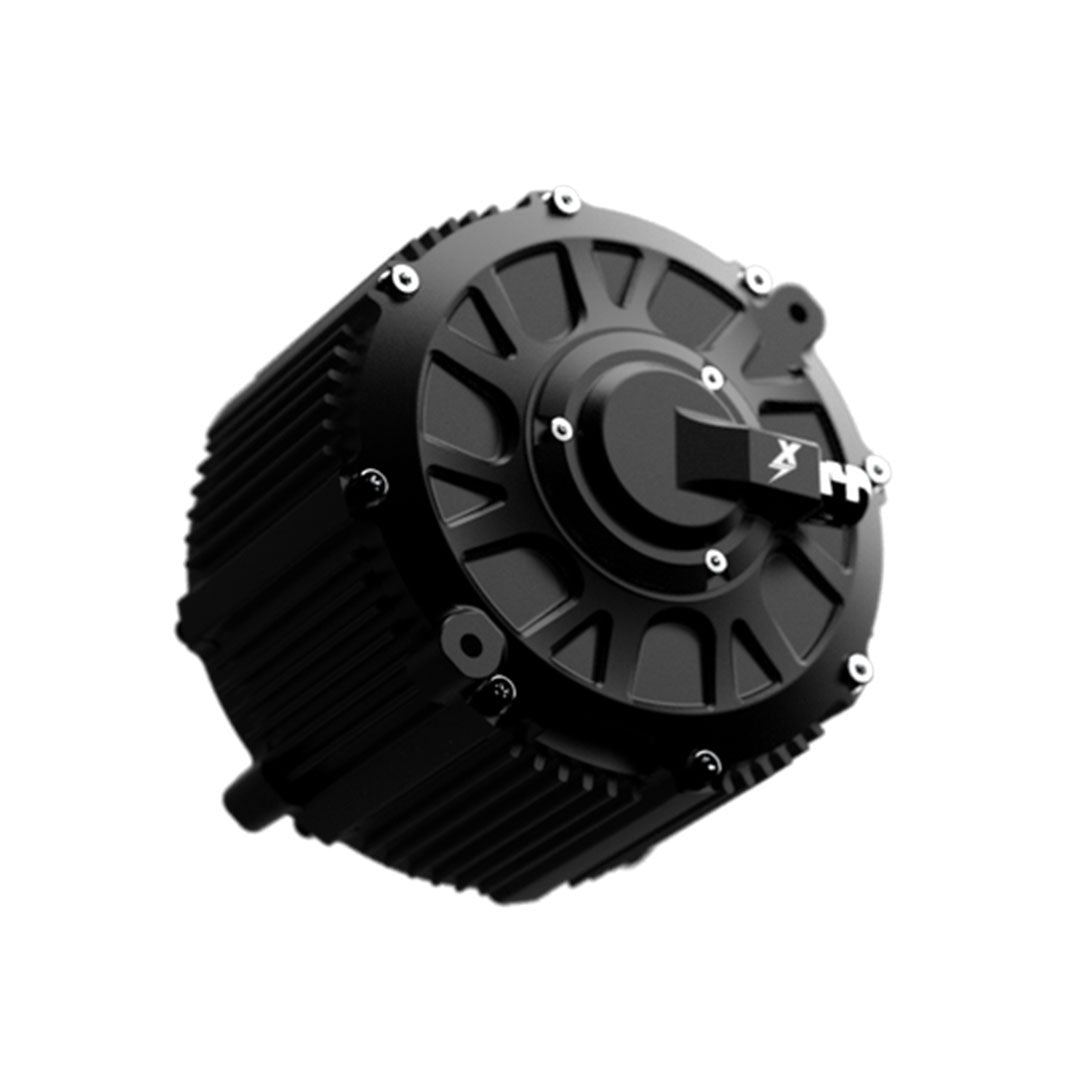

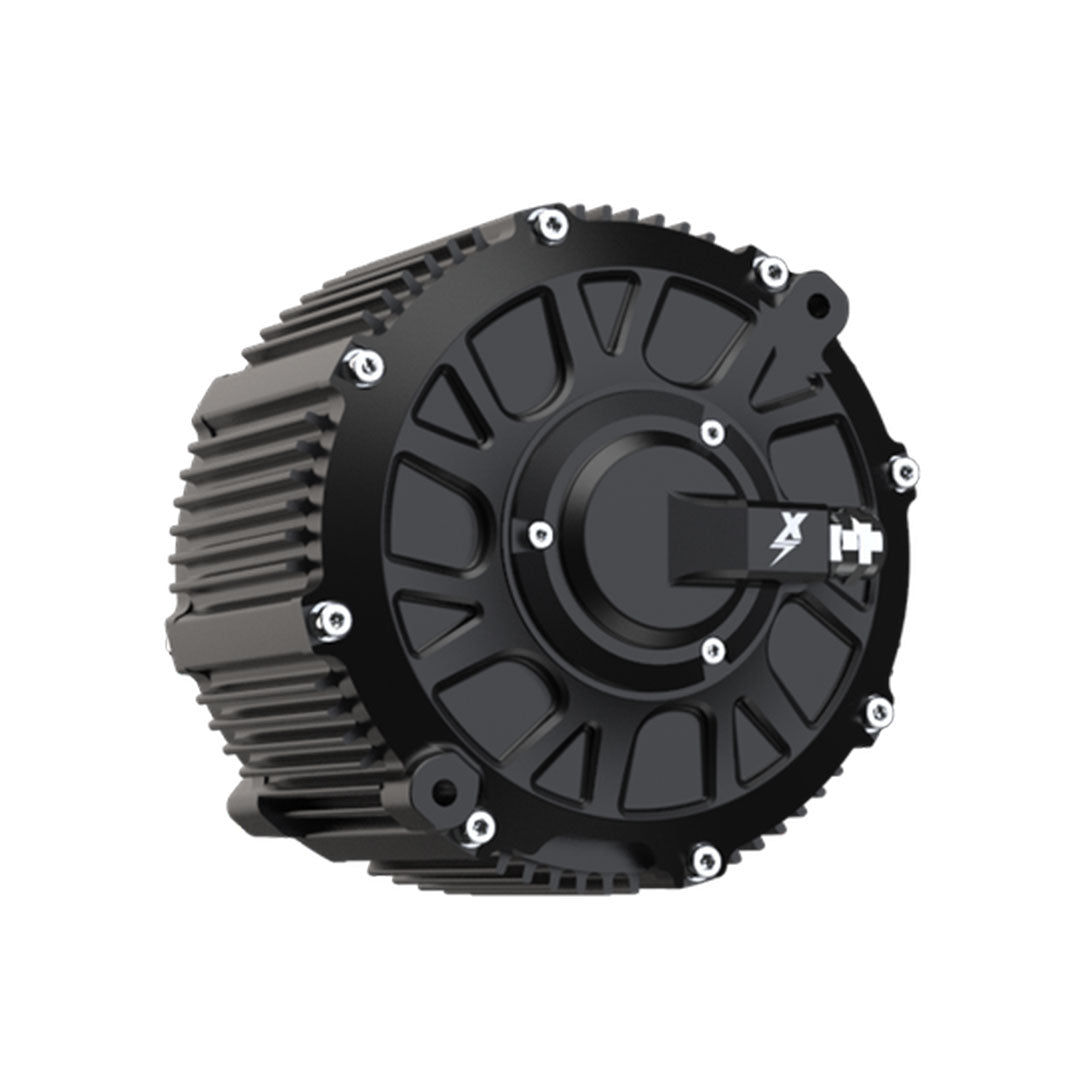

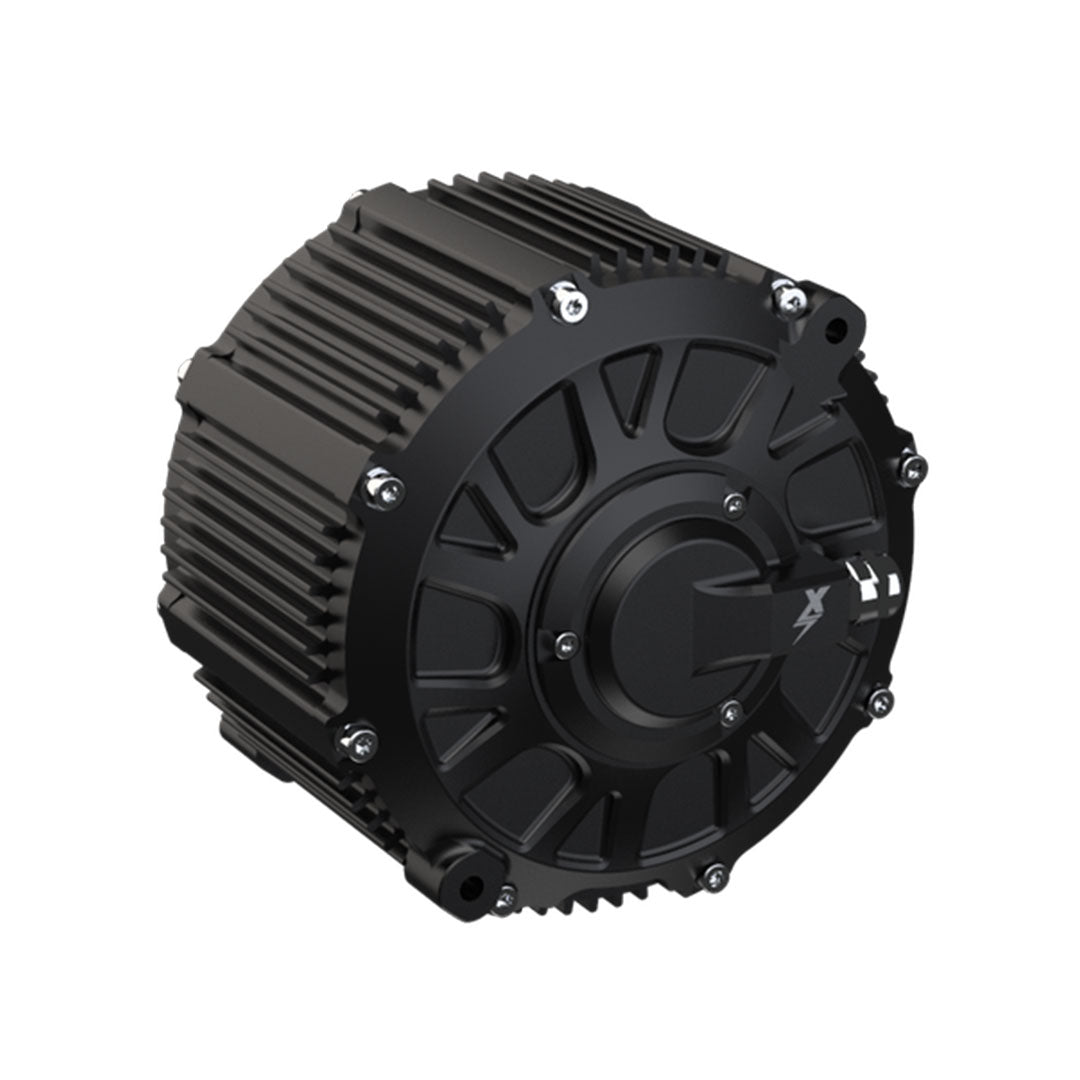

EBMX XLB-60 RACE Motor: SurRon LBX, E Ride Pro, Talaria X3

EBMX XLB-60 RACE Motor upgrade boosts power and speed for Sur-Ron Light Bee, E Ride Pro, and Talaria X3 electric dirt bikes. Designed for speed and maximum RPM, the air-cooled XLB-60 Motor RACE edition lengthens the torque band to create a constant pulling force from 0 to 13,000 RPM.

*Compatible with EBMX X-9000 V2 or V3 only – choose your version

2025 EBMX XLB-60 RACE Motor Features

• More Torque + Power: the stator size has been increased from 60mm to 65mm to deliver more torque and power
• High-Performance Wind for Speed: 105kv provides faster acceleration and higher top speeds
• Versatile & Durable: designed for higher RPM (up to 14,000) with a 1mm air gap to maximize efficiency and heat dissipation
• Encoder Sensor for Precision: ensures stability and precise throttle response, even during aggressive riding
• 5 Color Options: Black, Blue, Red, Gold, Purple
• Includes:

  • EBMX XLB-60 Core Motor – choose color
  • XLB-60 Mount + Harness Kit – choose your bike make/model

E-Moto Compatibility:

• Sur-Ron Light Bee X / S
• E Ride Pro SS 2.0 / S
• Talaria X3
• wiring harness + mount kits available for Sur-Ron Light Bee, E Ride Pro, and Talaria X3

Controller Compatibility:

• custom built and finely tuned to work with EBMX X-9000 Controller
• not compatible with OEM E Ride Pro controllers
• works with aftermarket controllers that support the Encoder position sensor only
• check with your controller manufacturer to ensure compatibility

Recommended Gear Settings:

• Off-Road: 18 inch 58T-64T (75 mph top speed with 64T/72V)
• Off-Road: 16 inch 54-58T
• Off-Road 17 inch 56T-60T

Recommended X-9000 Controller Settings on a 400-Amp BMS 20S/22S:

• 1000 Phase / 30kW
• 900 Phase / 25kW
• 800 Phase / 20kW

How To Extend Your Range
By turning field weakening to 0% and using a 64T sprocket for off-road riding on 21/18 wheels, you can easily reach 65 mph with a 72V battery. This can extend your range by up to 15%.

Compare EBMX XLB-60 Motors: RACE vs CORE

EBMX XLB-60 RACE Motor = ultimate top speed; perfect for high-powered builds and mile-high RPM's

EBMX XLB-60 CORE Motor = ultimate torque and control; perfect for off-road riding and stunting

XLB-60 Race Motor Specs

• Peak Power: 42kW @1200 Phase Amps/92V
• Peak Torque: 97NM @1200 Phase Amps/92V
• Peak Phase Current: 1400 Amps
• Continuous Phase Current: 600 Amps (35NM)
• KV Rating: 105kv
• Max Stable Rotor RPM: 14,000
• Rotor Type: IPM
• Position Sensor Type: Encoder
• Max Motor Temperature: 180° C
• IP Rating: 67
• Motor Configuration: 10 poles / 12 slots
• Winding Type: Dual Y Parallel
• Stator Length: 65mm
• Magnet Length: 65mm
• Motor Weight: 12.2kg
